    X-Caliber 9 - 2023

    Regular price
    8,314.50 SR
    Regular price
    Sale price
    8,314.50 SR

    Split your payments into 4 with tabby. No interest, no fees!

    tabby
    X-Caliber 9 is the most powerful bike in the X-Caliber range, because it's engineered for competitive cross-country racing. Featuring a RockShox Recon fork, a 1x12 Shimano XT/SLX drivetrain, and a wide-range cassette, it's the perfect choice for speed-oriented singletrack riders seeking a high-performance bike that's racing immediately.
    Vendor: Trek
    SKU: 601842583340
    Availability: 2 In Stock
    Product Type: Mountain Bikes
    Color: Factory Orange
    Size: S 27.5 wheel
    Model: 2023
    Subtotal: 8,314.50 SR
    X-Caliber 9 Wheels Bikes

    X-Caliber 9 - 2023

    8,314.50 SR

    X-Caliber 9 - 2023

    8,314.50 SR
    Color: Factory Orange
    Size: S 27.5 wheel
    Model: 2023
    Compare Color
    • factory-orange
    Click On Color / Pattern To Compare, Click And Drag Images To Reorder
    Overview
    Features
    Specs
    Geometry
    Sizing

    It's just too perfect

    This bike is ideal for those who want a professional bike that enables them to go for long distances at high speeds and in the least possible time over the tracks. This bike is ideal for various races over mountain roads, with high-quality and durable parts. So it gives the cyclist a competitive advantage in road races.

    Technology you get

    The X-Caliber 9 bike includes a lightweight aluminium frame, a RockShox Recon Gold RL100 front derailleur, a Shimano XT/SLX 1x12 drivetrain, and a wide range of gears so riders can climb and launch with the utmost flexibility and stability. This bike comes with tubeless-ready wheels with Boost 141 hubs for extra wheel power and a low dropper post that's low on various slopes.

    Generally

    X-Caliber 9 is fast, smart, and efficient. The X-Caliber 9 race bike is ideal for those who want to ride a mountain bike in the races and those looking for a bike to take long distances on the road.



    Why would you like it?

    It's a perfect race bike with more advanced XC parts in a great frame. The components of this bike, especially the rear clutch transmission, prevent disturbances for the rider while riding over bumpy roads. The frame of this bike is fully compatible with high-end parts like racing wheels, so you can easily upgrade your bike at any time. The bike features an X1 drivetrain that provides a wide range of gears with one simple shifter.

    The Walkthrough

    Built for speed

    Built for speed

    This bike is built for speed with quick-swap geometry, high-quality precision parts, and a lightweight fork suspension system that soaks up all the bumps in the road. The X-Caliber 9 bike's parts are built for efficiency, which is what makes it a great choice for racers and anyone else looking for a bike that will get them going far in no time and as quickly as possible.


    High-tech frame

    High-tech frame

    The frame of this bike is made of multi-featured Alpha Gold aluminium that makes the cyclist ride better. The tapered head tube gives more confidence on the road. And the Boost 141 rear axle gives the rider a smarter experience in the rear as he takes off for long distances over rough and rocky roads.


    Shimano XT

    Shimano XT

    Thousands of mountain bikers across the world have depended on Shimano XT. Today's mountain biking solution, no matter the trail or location, is XT. trustworthy shifting. outstanding brakes. Intelligent maintenance. XT is the dependable high-performance workhorse.


    Frameset

    Frame Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR
    *Fork Size: S
    RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 37mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
    Size: M , ML , L , XL , XXL
    RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
    Max compatible fork travel 120mm, XS: 100mm

    Wheels

    Hub front Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
    Hub rear Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR
    *Rim Size: S , M , ML , L , XL , XXL
    Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
    Size: S , M , ML , L , XL , XXL
    Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
    *Tire Size:S
    Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35''
    Size: M , ML , L , XL , XXL
    Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35''
    Tire part Bontrager TLR sealant, 6oz
    Rim strip Bontrager TLR
    Max tire size Frame: 27.5x2.80" or 29x2.40", Fork: See manufacturer

    Drivetrain

    Shifter Shimano SLX M7100, 12 speed
    Rear derailleur Shimano XT M8100, long cage
    *Crank Size: S , M
    Shimano MT611, 30T steel ring, alloy spider, 52mm chainline, 170mm length
    Size: ML , L , XL , XXL
    Shimano MT611, 30T steel ring, alloy spider, 52mm chainline, 175mm length
    Bottom bracket Shimano SM-BB52, 73mm, threaded external bearing
    Cassette Shimano SLX M7100, 10-51T, 12 speed
    Chain Shimano SLX M7100, 12 speed
    Pedal VP-536 nylon platform
    Max. chainring size 1x: 32T

    Components

    Saddle Bontrager Arvada, steel rails, 138mm width
    *Seatpost Size: S , M
    TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
    Size: ML , L , XL , XXL
    TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
    *Handlebar Size: S , M
    Bontrager alloy, 31.8mm, 5mm rise, 720mm width
    Size: ML , L , XL , XXL
    Bontrager alloy, 31.8mm, 15mm rise, 750mm width
    Grips Bontrager XR Trail Comp, nylon lock-on
    *Stem Size: S
    Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
    Size: M , ML
    Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
    Size: L
    Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
    Size: XL , XXL
    Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
    Head set Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8'' top, 1.5'' bottom
    Brake Shimano hydraulic disc, MT4100 lever, MT410 caliper
    *Brake rotor Size: S , M , ML , L , XL , XXL
    Shimano RT56, 6-bolt, 180mm
    Size:S , M , ML , L , XL , XXL
    Shimano RT56, 6-bolt, 160mm

    Weight

    Weight M - 12.75 kg / 28.11 lbs
    Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

    Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

    All measurements provided in cm unless otherwise noted.

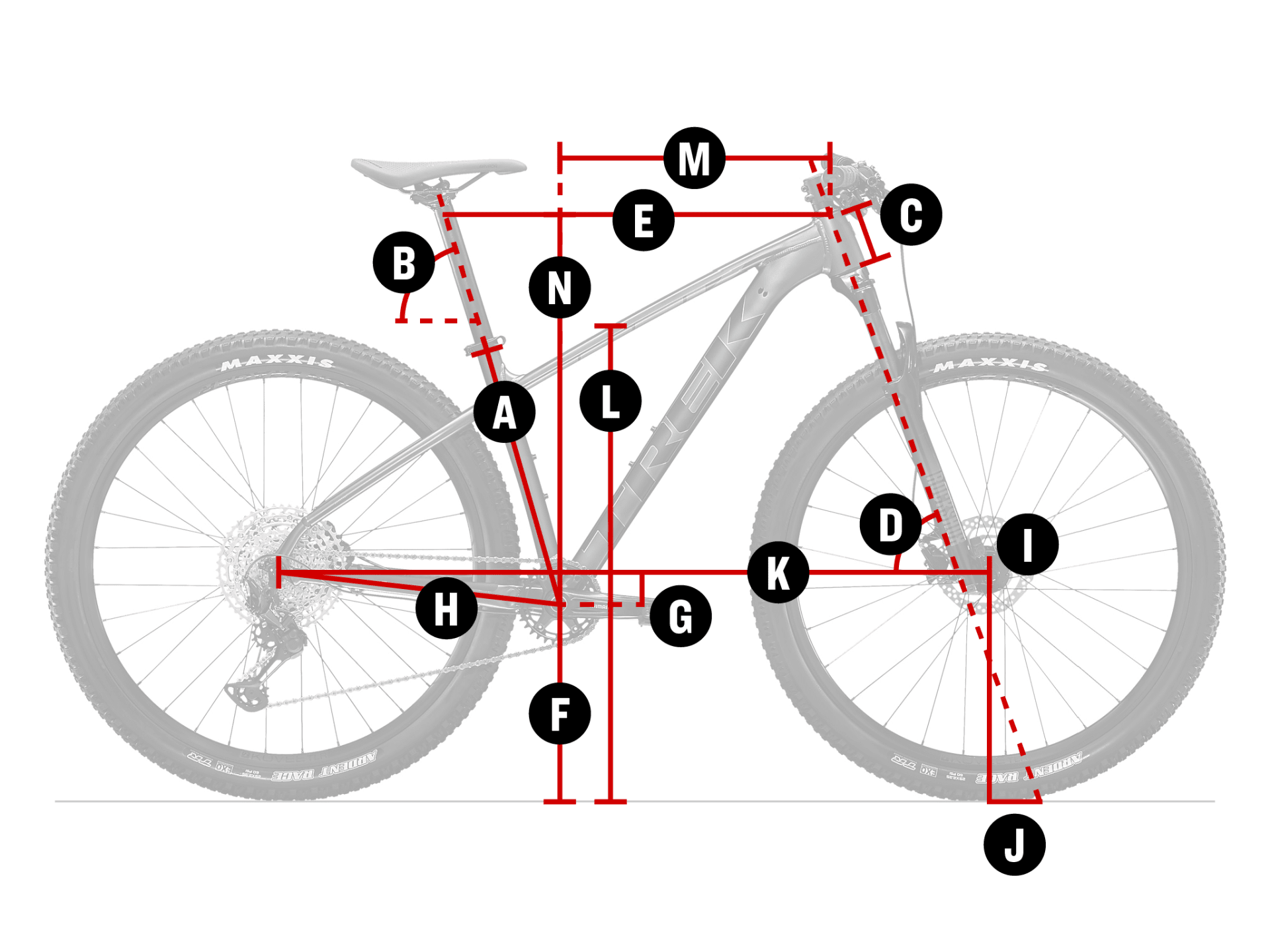

    Sizing table
    Frame size number Frame size letter Wheel size A — Seat tube B — Seat tube angle Effective seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
    15.5" S 27.5" 36.8 73.5° 73.5° 9.0 69.3° 55.5 30.2 4.8 42.5 4.2 8.8 105.3 72.4 38.5 57.4
    17.5" M 29" 41.9 71.9° 73.0° 9.0 69.5° 60.1 31.1 5.8 43.8 4.2 9.4 110.9 74.8 41.8 59.8
    18.5" ML 29" 44.4 71.9° 73.0° 9.0 69.5° 61.7 31.0 5.8 43.8 4.2 9.4 112.5 75.7 43.4 59.8
    19.5" L 29" 47.0 71.9° 73.0° 10.0 69.5° 63.7 31.0 5.8 43.8 4.2 9.4 114.5 75.7 45.1 60.8
    21.5" XL 29" 52.1 71.9° 73.0° 12.0 69.5° 65.8 31.0 5.8 43.8 4.2 9.4 116.7 76.8 46.6 62.7
    23.0" XXL 29" 55.9 71.9° 73.0° 12.0 69.5° 67.2 31.1 5.8 43.8 4.2 9.4 118.1 80.4 48.0 62.7

    Size

    XS

    S

    M

    M/L

    L

    XL

    2XL

    Rider Height

    145 - 155 cm

    4'9" - 5'1"

    155 - 165 cm

    5'1" - 5'5"

    165 - 176 cm

    5'5" - 5'9"

    173 - 180 cm

    5'8" - 5'11"

    177 - 188 cm

    5'10" - 6'2"

    188 - 195 cm

    6'2" - 6'5"

    195 - 203 cm

    6'5" - 6'8"

    Inseam

    69 - 73 cm

    27" - 29"

    74 - 78 cm

    29" - 31"

    79 - 83 cm

    31" - 33"

    81 - 86 cm

    32" - 34"

    84 - 89 cm

    33" - 35"

    89 - 91 cm

    35" - 36"

    91 - 97 cm

    36" - 38"
