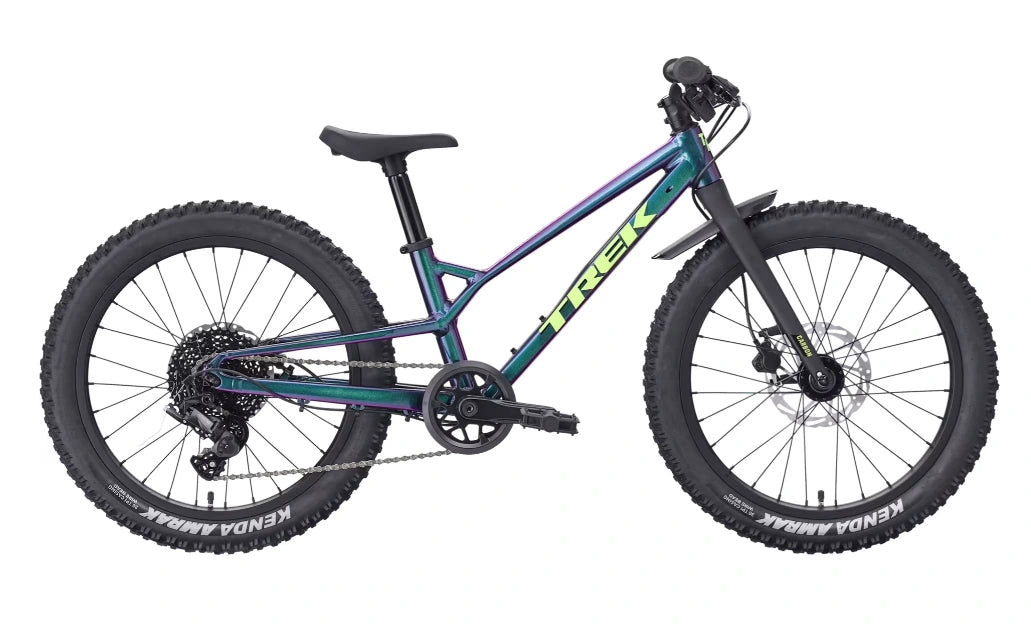

The Wahoo 20 Trail is the perfect all around companion for young riders ready to explore it all, from city streets and greenways to rugged off-road trails. Its lightweight yet tough aluminum frame is easy to maneuver for confident handling, while being durable enough to tackle tougher terrain. Smooth tires keep the ride fast and fun on pavement, while a 9-speed 1x drivetrain offers plenty of gearing for climbing steep trails. For stopping power, the bike is equipped with reliable brakes, rim brakes for control on city rides and powerful disc brakes for next-level confidence on the trail. Designed for riders between 114 and 132 cm tall, it’s built to deliver adventure anywhere they roll.



Lightweight Carbon Fork

Lightweight Carbon Fork

A durable carbon fork cuts weight for easy manoeuvrability, absorbs bumps in the trail for happier rides on rough terrain and comes with a legit front mudguard that screams, 'real mountain bike.


Dropper post compatibility

Dropper post compatibility

The Wahoo Trail is designed to fit an internally-routed 31.6 mm dropper post, ideal for young riders who want to lower their saddle for more aggressive downhill rides.


Kid - friendly tigger shifters

Kid - friendly tigger shifters

Thumb-activated shifters make it easy to find the right gear and set young riders up for success with a kid-friendly version of the shifters you find on adult bikes.


Frameset

*Frame Alpha Silver Aluminium, 20"
Size: M , ML , L , XL , XXL
Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
*Fork Wahoo 20" carbon, post- mount disc brake, ThruSkew 5 mm QR

Wheels

Hub front Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
Pedal VP-225 nylon platform
Saddle Kids' padded, integrated seat post, Blendr light mount, 31.6 x230 mm
Rear Derailleur microSHIFT Advent RD- M6195S, 34-38T max cog
Bottom Bracket Sealed cartridge, 68 mm

Drivetrain

Shifter microSHIFT Advent Quick Trigger Pro SL-M6295, 9- speed
Brake Tektro HD-J285 hydraulic disc, short reach
Rear Skewer 169x5 mm bolt-on
Tire Kenda Amrak, 30 tpi, 20x2.20"
Rim Alloy 20", 28 h
Cassette Shimano TZ500, 14-28, 7--speed
Chain KMC X9
Headset Integrated, sealed cartridge bearings

Components

Spokes 14 g stainless steel, black
Crank ProWheel alloy, 30T narrow- wide ring, 115 mm length
Stem Bontrager alloy, 31.8 mm clamp, 6-degree, 45 mm length
Handlebar Bontrager alloy, 31.8 mm clamp, 20 mm rise, 580 mm width
Cassette microSHIFT Advent H093, 11- 38, 9-speed
Seat Collar Bolt-on, 36.4 mm
*Brake Rotor Tektro, 6-bolt, 160mm
Grips Kids' grip, 110 mm width
Rear Hub Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Fender Trek custom
Front Skewer 135x5 mm bolt-on

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Size

12" wheel

16" wheel

20" wheel

24" wheel

26" wheel

Rider Height

86 - 102 cm

2'10" - 3'4"

99 - 117 cm

3'3" - 3'10"

114 - 132 cm

3'9" - 4'4"

130 - 150 cm

4'3" - 4'11"

146 - 160 cm

4'9" - 5'3"

All measurements provided in cm unless otherwise stated.

Sizing table
Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
20" kids' 25.5 73.0° 8.5 67.0° 44.8 23.0 4.0 37.2 6.5 89.5 47.6 32.4 40.7
