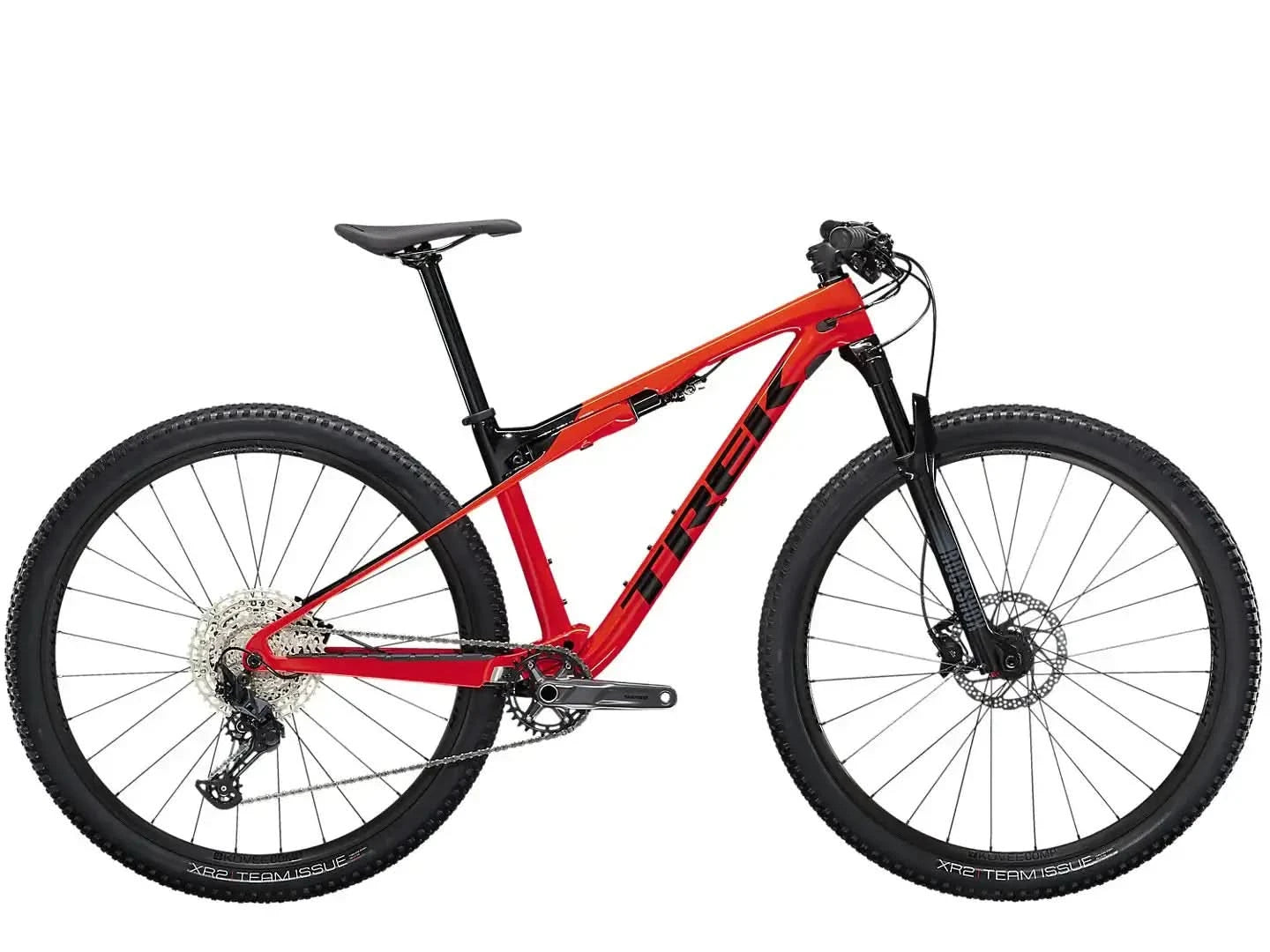

Supercaliber 9.6
- 18,377.00
- 18,377.00
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
Limited-Time Offers, End in:
151D
8H
23M
0S
Compare color
Overview
Features
Specs
Sizing
Geometry
It's just too perfect
This bike is perfect for those looking for a professional long-distance racing bike and those who prefer a great Supercaliber frame and integrated suspension technology for a more professional performance while cruising over different terrains.
Technology you get
The Supercaliber 9.6 bike is equipped with a high-quality, lightweight carbon mountain frame with a width of 60 millimeters. This bike comes with a 100-millimetre RockShox Recon Gold fork suspension and lightweight ISOStrut Fox performance specifically designed for the Super Caliber. This bike is equipped with a Shimano Deore 1x12 SLX drivetrain, Kovee Comp 23 tubeless wheels, and a Professional Control bike rear hub.
Generally
The Super Caliber 9.6 features high power, speed, efficiency, and ISOStrut technology, an integrated suspension technology that gives you complete control of the bike and more flexibility to get off the bike.
Why would you like it
The Super Caliber 9.6 features high power, speed, efficiency, and ISOStrut technology, an integrated suspension technology that gives you complete control of the bike and more flexibility to get off the bike.
The Walkthrough
Nothing else like it
Because the special frame design of the Supercaliber does away with standard suspension components, there is less weight, maintenance, and lateral flex. With around 60 mm of rear wheel movement, IsoStrut connects the mainframe to the pivotless seat supports. The design puts racers in control and delivers a special combination of effectiveness, traction, and fatigue compliance.
IsoStrut
You have precisely the right amount of travel with IsoStrut integral suspension to stay in control. It has all the flexibility of a normal rear shock without the extra weight of a full suspension bike.
OCLV Mountain Carbon
This bike is made of high-quality lightweight carbon, which withstands the bumps and bumps of off-road conditions. In addition, the cycle enables the cyclist to start with extreme speed, flexibility, and stability at the same time.
Complete tubeless system
Before installing a tubeless setup, make sure your wheels and tires are ready to remove the rim strips and tires, Bontrager TLR rim strips enable a firmer bead lock with the tire and a more straightforward installation process overall. All you will need: • Tubeless Ready (TLR) tyres • Tubeless Ready (TLR) wheel set • TLR rim strips • TLR valves
Suspension calculator
To get the maximum performance out of your mountain bike, proper suspension set-up is important. It just takes a few minutes to get your suspension tuned up.
Water bottle capacity
It is simple to stay hydrated for a long time with space for two water bottles.
Frameset
| Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
|---|---|
| *Fork | Size: XS , S Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel |
| Size: S , M , ML , L , XL Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel | |
| Shock | Fox Performance Float X, 2-position damper, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |
Wheels
| Wheel front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| *Wheel rear | Size: XS , S , M , ML , L , XL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle |
| Size: XS , S Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle | |
| Size: S , M , ML , L , XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle | |
| Size: S , M , ML , L , XL Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle | |
| Hub front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Rim | Size: XS , S , M , ML , L , XL Bontrager Line Comp 30, Tubeless-Ready |
| Size: XS , S , M , ML , L , XL Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve | |
| *Tyre | Size: XS , S Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50" |
| Size: S , M , ML , L , XL Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29 x 2.50" | |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
| Hub front | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | Bontrager Switch thru axle |
| *Rim | Size: XS , S Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Size: M , ML , L , XL , XXL Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve | |
| *Tyre | Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40" |
| Size: M , ML , L , XL , XXL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" | |
| Max tyre size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
Drivetrain
| Shifter | Shimano SLX M7100, 12-speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| Crank | Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length |
| *Bottom bracket | Size: XS , S , M , ML , L , XL Shimano SM-BB52, 73 mm, threaded external bearing |
| Size: XS , S , M , ML , L , XL Shimano BB-MT501 BSA | |
| Cassette | Shimano SLX M7100, 10-51, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 34T round, 32T oval, min 28T |
Components
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
|---|---|
| *Seatpost | Size: XS , S TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm |
| Size: M , ML TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm | |
| Size: L , XL TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm | |
| *Handlebar | Size: XS , S Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width |
| Size: M , ML , L , XL Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width | |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| *Stem | Size: XS , S Bontrager Elite, 35 mm, 0-degree, 35 mm length |
| Size: M , ML , L , XL Bontrager Elite, 35 mm, 0-degree, 45 mm length | |
| Head set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| *Brake | Size: XS , S , M , ML , L , XL Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| Size: XS , S , M , ML , L , XL SRAM DB 8 4-piston hydraulic disc | |
| *Brake rotor | Size: XS , S , M , ML , L , XL Shimano RT66, 6-bolt, 180 mm |
| Size: XS , S , M , ML , L , XL SRAM CentreLine, 6-bolt, round edge, 180 mm | |
| Size: M , ML , L , XL Shimano RT66, 6-bolt, 203 mm | |
| Size: M , ML , L , XL SRAM CentreLine, 6-bolt, round edge, 200 mm |
Accessories
| Bag | Bontrager BITS Internal Frame Storage Bag |
|---|
Weight
| Weight | M – 14.76 kg/32.55 lb (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
| Size | Rider Height | Inseam |
|---|---|---|
| XS | 145 - 155 cm 4'9" - 5'1" | 69 - 73 cm 27" - 29" |
| S | 155 - 165 cm 5'1" - 5'5" | 74 - 78 cm 29" - 31" |
| M | 165 - 176 cm 5'5" - 5'9" | 79 - 83 cm 31" - 33" |
| M/L | 173 - 180 cm 5'8" - 5'11" | 81 - 86 cm 32" - 34" |
| L | 177 - 188 cm 5'10" - 6'2" | 84 - 89 cm 33" - 35" |
| XL | 188 - 195 cm 6'2" - 6'5" | 89 - 91 cm 35" - 36" |
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5" | S | 29" | 39.4 | 70.0° | 74.0° | 9 | 69.0° | 56.5 | 32 | 5.3 | 43 | 4.4 | 9.6 | 107.9 | 75 | 39.5 | 59.4 |
| 17.5" | M | 29" | 41.9 | 70.5° | 74.0° | 9 | 69.0° | 59.5 | 32 | 5.3 | 43 | 4.4 | 9.6 | 110.6 | 76 | 42.5 | 59.4 |
| 18.5" | ML | 29" | 44.5 | 70.5° | 74.0° | 9 | 69.0° | 61 | 32 | 5.3 | 43 | 4.4 | 9.6 | 112.1 | 76 | 44 | 59.4 |
| 19.5" | L | 29" | 47 | 71.0° | 74.0° | 9 | 69.0° | 62.5 | 32 | 5.3 | 43 | 4.4 | 9.6 | 113.6 | 78.7 | 45.5 | 59.4 |
| 21.5" | XL | 29" | 50.8 | 71.0° | 74.0° | 10.5 | 69.0° | 65.9 | 32 | 5.3 | 43 | 4.4 | 9.6 | 117.2 | 78.7 | 48.5 | 60.8 |
| 23.0" | XXL | 29" | 54.6 | 71.0° | 74.0° | 12 | 69.0° | 68.3 | 32 | 5.3 | 43 | 4.4 | 9.6 | 119.7 | 78.7 | 50.5 | 62.2 |
