It's just too perfect.

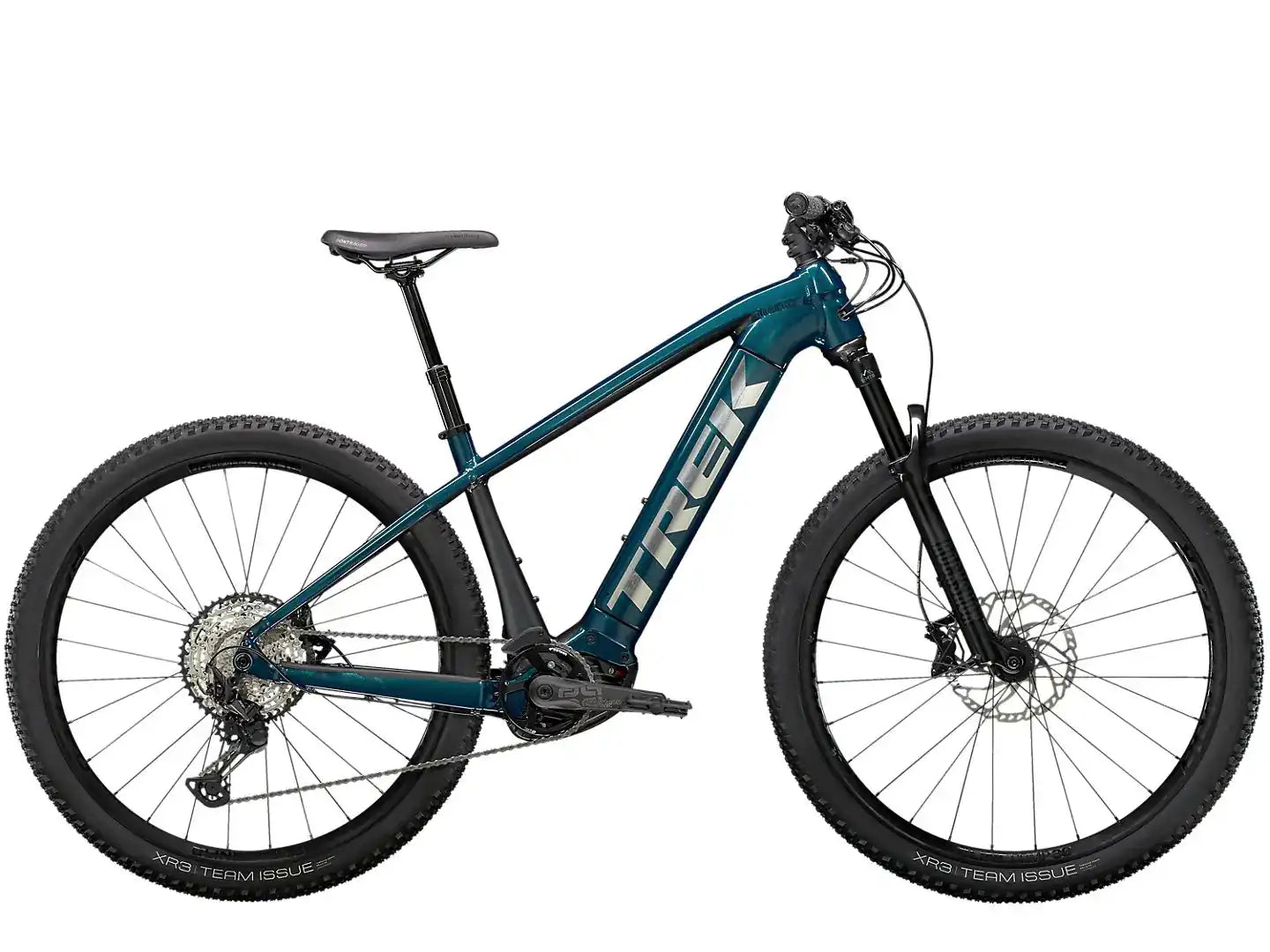

This bike is perfect for those looking for a high-quality mountain bike supported by electric power that enables riders to go biking with extreme speed, strength, and stability on the road and over rough roads.

Technology you get

The Powerfly 7 includes an advanced controller and colour screen that give riders Bluetooth connectivity and other progressive cycling and fitness features. In addition, it comes with a durable aluminium frame, a 625Wh battery for biking up to 20 mph, Kiox comfort control, RockShox 35 fork suspension, a Shimano drivetrain, 4-piston hydraulic disc brakes, and Bontrager tubeless-ready wheels.

In general

This robust and durable electric mountain bike provides tremendous power for biking on roads and mountains, with wider wheels for more stability and optimal traction. In addition, the stiffer fork suspension and Shimano drivetrain give riders more flexibility and strength on rough roads.



Why would you like it?

This robust and durable electric mountain bike provides tremendous power for biking on roads and mountains, with wider wheels for more stability and optimal traction. In addition, the stiffer fork suspension and Shimano drivetrain give riders more flexibility and strength on rough roads.

Will my bike have a curved top tube?

Will my bike have a curved top tube?

Smaller (S) framesets have a top tube that lowers closer to the seat tube. So this design provides a lower standing height, which is suitable for shorter riders as it allows them to line up their bikes more easily. And the larger M and ML frame sizes include a straight top tube. In addition, this is because taller riders with longer legs don't have the same problems as shorter riders.


Bosch Performance Line engine

Bosch Performance Line engine

This motor sets the standard for this e-mountain bike's performance with up to 85Nm, Smart EMTB Mode, and Extended Boost, which automatically adjust the amount of assistance the rider needs based on the terrain the rider is riding on.


Removable built-in battery

Removable built-in battery

The Powerfly 7 Cycle comes with a one-piece battery and an integrated handle cover that can be easily removed and reattached to the frame tubeless. And it is the best way to remove the battery for various transport, charging, and safety purposes.



*Please note – spec applies to all sizes unless listed separately

*Frame
Size: XS , S
Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
Size: M , L , XL
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148
*Fork
Size: XS
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 80 mm travel
Size: S , M , L , XL
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 120 mm travel

*Wheel front
Size: XS , S
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"
Size: M , L , XL
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
*Wheel rear
Size: XS , S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"
Size: M , L , XL
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle, 29"
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Comp 30, Tubeless-Ready
Spokes
14 g stainless steel, black
*Tyre
Size: XS , S
Bontrager XR3 Team Issue, Tubeless-Ready, Inner Strength sidewall, aramid bead, 120 tpi, 27.5x2.35"
Size: M , L , XL
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.40"
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.60" or 27.5x2.80" (XS & S: 27.5x2.60"), Fork: See manufacturer

Battery
Bosch PowerTube 625 Wh
Charger
Bosch standard 4A, 220-240 V
Computer
Bosch Kiox with Anti-theft solution

Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano XT M8100, long cage
Crank
E*thirteen E*spec Plus, 165 mm length
Chainring
E*thirteen, 36T, steel
Cassette
Shimano SLX M7100, 10-51T, 12-speed
Chain
Shimano SLX M7100, 12-speed
Pedal
VP-536 nylon platform
Max. chainring size
1x: 38T

Saddle
Bontrager Commuter Comp
*Seatpost
Size: XS , S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M , L , XL
TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm, 425 mm length
*Handlebar
Size: XS , S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Endurance Elite, lock-on, ergonomic
*Stem
Size: XS
Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
Size: S , M
Bontrager Rhythm Comp, 31.8mm, 0-degree, 60 mm length
Size: L , XL
Bontrager Rhythm Comp, 31.8 mm, 0-degree, 70 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake rotor
Shimano RT66, 6-bolt, 203 mm

Weight
M - 23.12 kg / 50.96 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Size

XS

S

M

L

XL

Rider Height

145 - 155 cm

4'9" - 5'1"

155 - 165 cm

5'1" - 5'5"

165 - 176 cm

5'5" - 5'9"

177 - 188 cm

5'10" - 6'2"

188 - 195 cm

6'2" - 6'5"

Inseam

69 - 73 cm

27" - 29"

74 - 78 cm

29" - 31"

79 - 83 cm

31" - 33"

84 - 89 cm

33" - 35"

89 - 91 cm

35" - 36"

Geometry

Labelled bike diagram showing geometry points A to N.
Geometry diagram labelling frame measurements A to N. Each label corresponds to a row in the geometry table below.

All measurements provided in cm unless otherwise stated.

Sizing table
Frame size number Frame size letter Wheel sizeA — Seat tubeB — Seat tube angleC — Head tube lengthD — Head angleE — Effective top tubeF — Bottom bracket heightG — Bottom bracket dropH — Chainstay lengthI — OffsetJ — TrailK — WheelbaseL — StandoverM — Frame reachN — Frame stack
13.5XS27.5"36.370.0°12.065.0°57.932.83.745.55.111.4113.570.635.262.1
15.5S27.5"39.471.5°13.067.6°59.830.74.945.54.210.1112.572.139.062.3
17.5M29"41.971.7°13.067.7°61.732.44.945.55.19.8115.579.440.663.9
19.5L29"47.071.7°14.067.7°64.132.45.045.55.19.8118.081.642.764.8
21.5XL29"52.171.7°16.067.7°67.232.45.045.55.19.8121.281.845.266.7
