Powerfly 5 Gen 3

Regular price
14,110.50 SR
Regular price
18,814.00 SR
Sale price
14,110.50 SR
Save 4,703.50 SR

Pay in 4 with tabby. No interest. No fees.

tabby

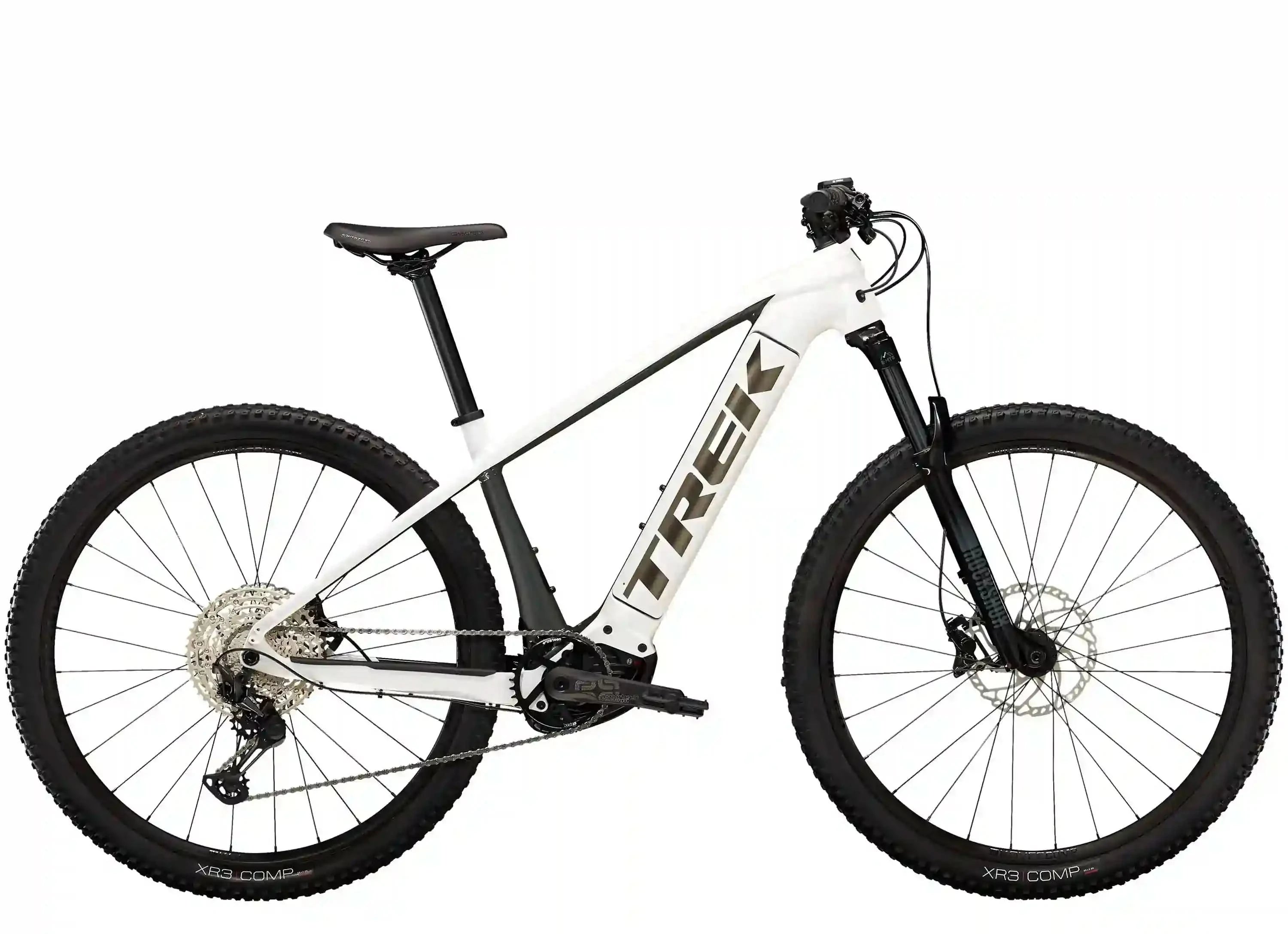

The Powerfly 5 is a high-value, capable, and versatile electric mountain bike that combines an E-MTB drive system with rugged mountain bike components specifically designed for off-roading. It is also equipped with a built-in, removable battery system that is easy to use and suitable for all-purpose adventure and exploration.
Vendor: Trek
SKU: 601842617861
Availability: 1 In Stock
Product Type: Bike
Color: WT / Lithium
Size: M
year: 2022
Subtotal: 14,110.50 SR
Powerfly 5 Gen 3 Wheels Bikes

Powerfly 5 Gen 3

14,110.50 SR

Powerfly 5 Gen 3

14,110.50 SR
Color: WT / Lithium
Size: M
year: 2022
Compare Color
  • black-grey
  • wt-lithium
Click On Color / Pattern To Compare, Click And Drag Images To Reorder
Overview
Features
Specs
Geometry
Sizing

It's just too perfect

This bike is ideal for those looking for a high-quality, versatile, professional-grade mountain bike at an affordable price and for those who want the perfect bike for adventure, off-road riding, and rocky terrain.

Technology you get

The Powerfly 5 comes with a sturdy aluminum frame that encases a full 625 Wh battery, a powerful motor that enables the rider to cruise at speeds of up to 20 mph (25 km/h), a Purion controller and 1* Shimano drivetrain, and fork suspension with lock and wheels in a variety of sizes from 27.5 to 29 degrees for larger tires.

Generally

This electric mountain bike comes with professional features, a powerful Bosch motor, a powerful controller like most expensive e-bikes, a battery, and other small parts that give the bike great value.



Why would you like it?

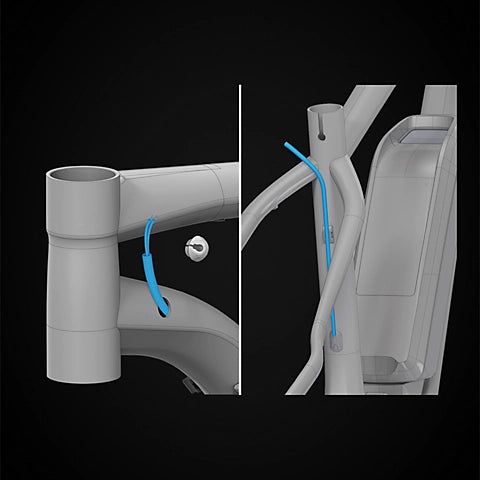

The bike has a tool-free Removable Integrated Battery (RIB) system that is very easy to use and completely conceals the battery in the frame for protection; the battery system allows the rider to install a water bottle cage. The Bosch system is unique and is ideal for off-road cycling and having fun on distinguished excursions. The Purion controller includes an intelligent E-MTB mode that automatically delivers the right amount of power needed to go with your bike over different terrains. The Powerfly 5 bike is equipped with an in-bike charging port for easy charging on or off the bike You can enhance the benefits of your Powerfly 5 bike by adding fenders and wires attached to the bike that allow you to install motorised lights.

Does the bike have a top tube?

Does the bike have a top tube?

Smaller S-frames have a top tube that drops down as it approaches the bike's seat tube. The bike's current design provides a lower ride height when cruising with the Powerfly 5 bike. This feature is ideal for shorter riders, as it allows them to line up their bikes more easily. Bikes with an M frame and above also have a straight top tube because taller riders don't have the same problems as shorter riders.

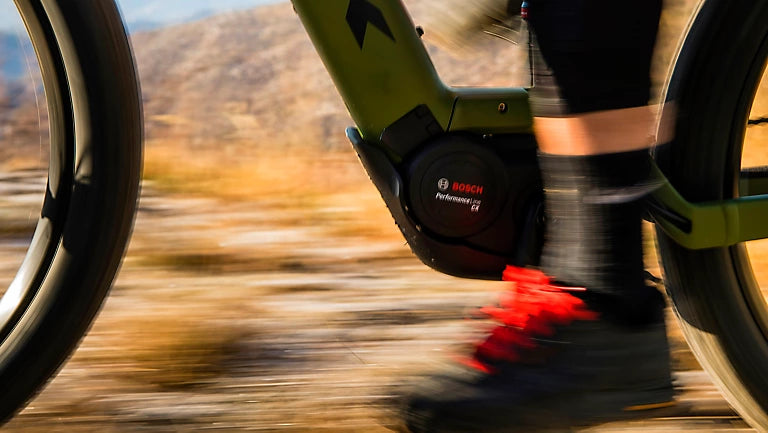

Bosch Performance Line CX engine

Bosch Performance Line CX engine

It comes with a Bosch CX motor that sets the electric mountain bike's performance with up to 85 N/m of torque and an electronic extended boost mountain bike mode that automatically adjusts the amount of assist based on the terrain the rider is riding over.


Removable built-in battery

Removable built-in battery

The Powerfly 5 includes a one-piece battery and one bike-mounted handlebar cover that can be easily removed and re-attached to the frame with no tools, providing a safer way to easily transport or charge the battery.


Frameset

*Frame Size: XS , S

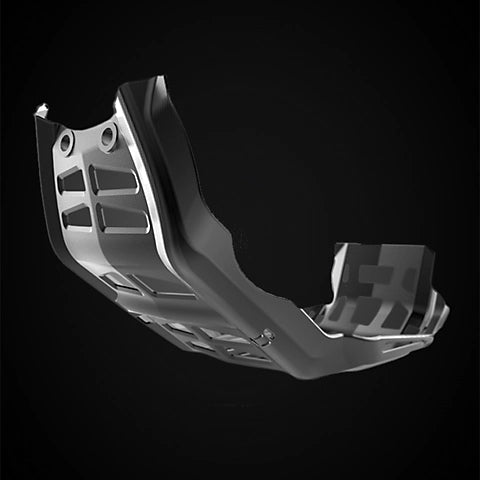

Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
Size: M , L , XL
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148
*Fork Size: XS
RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 80 mm travel
Size: S
RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 120 mm travel
Size: S , M , L , XL
RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 120 mm travel
Max compatible fork travel 120mm, XS & S: 100mm

Wheels

Hub front Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Rim Bontrager Kovee Comp, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tyre Bontrager XR3 Comp, wire bead, 30 tpi, 29x2.30"
Max tyre size Frame: 29x2.60" or 27.5x2.80" (XS & S: 27.5x2.60"), Fork: See manufacturer

E-system

Battery Bosch PowerTube, 625 Wh
Charger Bosch compact 2A, 100–240V
Computer Bosch Purion
Motor Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h max assist

Drivetrain

Shifter Shimano Deore M6100, 12-speed
Rear derailleur Shimano XT M8100, long cage
Crank E*thirteen E*spec Plus, 165 mm length
Chainring E*thirteen, 36T, steel
Cassette Shimano Deore M6100, 10-51, 12-speed
Chain Shimano Deore M6100, 12-speed
Pedal VP-536 nylon platform
Max. chainring size 1x: 38T

Components

Saddle Bontrager Commuter Comp
*Seatpost Size: XS , S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: M
Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
Size: L , XL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar Size: XS , S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips Bontrager XR Endurance Comp, lock-on
*Stem Size: XS
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: S , M
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: L , XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set FSA IS-2, 1-1/8" top, 1.5" bottom
Brake Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
*Brake rotor Size: XS , S
Shimano RT66, 6-bolt, 180 mm
Size: XS , S , M , L , XL
Shimano RT66, 6-bolt, 203 mm

Weight

Weight M - 22.94 kg/50.58 lb
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Sizing table
Frame size number Frame size letter Wheel size A — Seat tube Effective seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
13.5 XS 27.5" 36.3 70.0° 12.0 65.0° 57.9 32.8 3.7 45.5 5.1 11.4 113.5 70.6 35.2 62.1
15.5 S 27.5" 39.4 71.5° 13.0 67.6° 59.8 30.7 4.9 45.5 4.2 10.1 112.5 72.1 39.0 62.3
17.5 M 29" 41.9 71.7° 13.0 67.7° 61.7 32.4 4.9 45.5 5.1 9.8 115.5 79.4 40.6 63.9
19.5 L 29" 47.0 71.7° 14.0 67.7° 64.1 32.4 5.0 45.5 5.1 9.8 118.0 81.6 42.7 64.8
21.5 XL 29" 52.1 71.7° 16.0 67.7° 67.2 32.4 5.0 45.5 5.1 9.8 121.2 81.8 45.2 66.7

Size

XS
S
M
L
XL

Rider Height

145 - 155 cm

4'9" - 5'1"

155 - 165 cm

5'1" - 5'5"

165 - 176 cm

5'5" - 5'9"

177 - 188 cm

5'10" - 6'2"

188 - 195 cm

6'2" - 6'5"

Inseam

69 - 73 cm

27" - 29"

74 - 78 cm

29" - 31"

79 - 83 cm

31" - 33"

84 - 89 cm

33" - 35"

89 - 91 cm

35" - 36"
