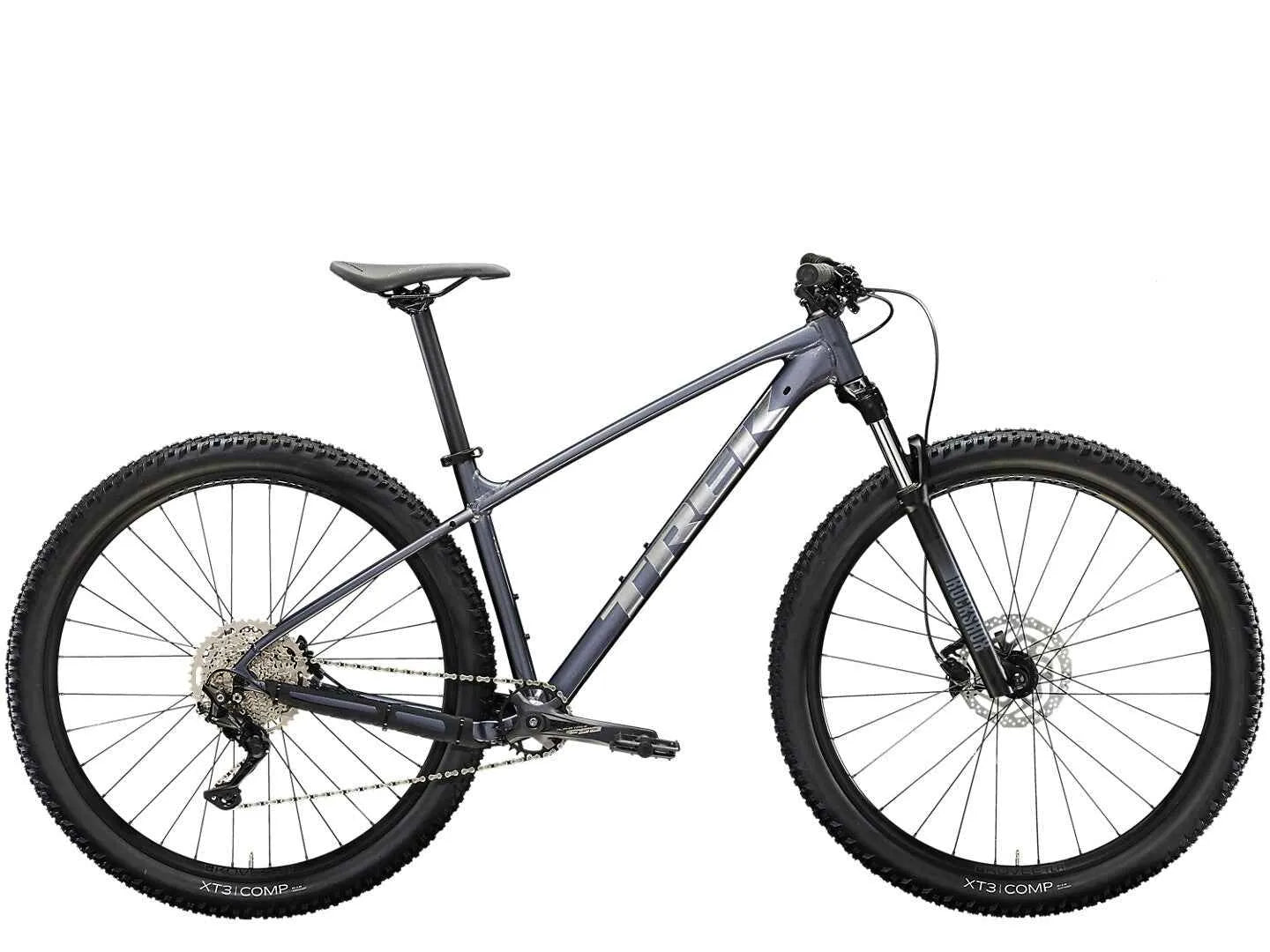

Marlin 7 Gen 3 - 2023 - Rent (Alula)
The Marlin 7 is one of the best mountain bikes and will be your best friend on the road and anywhere else because it offers a perfect balance between affordability and efficiency. With its upgraded RockShox suspension fork that works against bumps and rocks, it also contains a Shimano Deore precision shifting system
- 95.00
- 95.00
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
Limited-Time Offers, End in:
151D
8H
23M
0S
+
+
Overview
Features
Specs
Sizing
Geometry
It’s so perfect for you
If you want a powerful, confident, go-anywhere bike that boosts your road skills while being reasonably priced for performance and inspiring engineering, this Marlin 7 is the one to go with.
The technology you get
This bike has a lightweight aluminum frame with updated geometry for simple trail riding, and it also has internal routing to keep cables protected and the bike looking sleek. Additionally, an upgraded RockShox suspension fork that smooths out rocks and bumps while driving. With a powerful 10-speed Shimano drivetrain and hydraulic brakes, it provides tremendous stopping power.
Generally
The Marlin 7 is the mountain bike option of choice for those looking to improve their trail riding talents at a reasonable price with high performance and improved suspension and engineering that inspires confidence.
Why you’ll love it!
The Marlin 7 is the mountain bike option of choice for those looking to improve their trail riding talents at a reasonable price with high performance and improved suspension and engineering that inspires confidence.
The Walkthrough
Expanded size range
The Marlin bike comes in 8 different sizes, making it suitable for all cyclists. The smaller sizes of this bike come with shorter brakes and narrower handlebars that give smaller riders more comfort and better control , each tire is fitted with a smart wheel size that scales in proportion to the tire size, ensuring that every rider gets the proper fit.
Ready for anything
Marlin bicycles have a reputation for having stronger, real mountain bike frames that are compatible with modern upgrades.
Thru Skewer system
The new Thru Skewer is an improved, stronger, more accurate, and safer system that maintains standard 135mm rear axle spacing while protecting the rear wheel from quick-release skewers.
Rear Kickstand Mount
Chainstay mounts allow you to add a kickstand that stays out of your way, and the rear supports your bike of any size with minimal inclination or stretch.
Suspension Lockout
The Trek Marlin 7 has a professional lockout suspension that absorbs bumps in the road and lets you go biking with comfort and stability. This feature also saves more energy instead of wasting it when driving on paved roads.
Rack Mounts
The Marlin 7 bike includes many fenders and supports that allow the cyclist to carry many accessories needed during his rides, whether for riding adventures or during races.
Blender Stem
This technology helps you get a clean look and makes your bike easier and more enjoyable to use.
Internal cable routing
Internal cable routing protects small cables from outdoor elements and weather, keeping them simple and rugged.
Frameset
| *Frame | Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
| Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew | |
| *Fork | Size: XS , S RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
| Size: M , ML , L , XL , XXL RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel | |
| Max compatible fork travel | 120mm, XXS: 80mm |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | Bontrager Switch thru axle |
| *Rim | Size: XS , S Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Size: M , ML , L , XL , XXL Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve | |
| *Tyre | Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40" |
| Size: M , ML , L , XL , XXL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" | |
| Max tyre size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
Drivetrain
| Shifter | Shimano Deore M4100, 10 speed |
|---|---|
| Rear derailleur | Shimano Deore M5120, long cage |
| *Crank | Size: XS , S , M FSA Alpha Drive, 28T steel ring, Boost, 170 mm length |
| Size: ML , L , XL , XXL FSA Alpha Drive, 28T steel ring, Boost, 175 mm length | |
| Bottom bracket | FSA, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano Deore M4100, 11-46, 10-speed |
| Chain | KMC X10, 10-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 34T, 2x: 36/22 |
Components
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length | |
| *Handlebar | Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width | |
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width | |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XS , S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length |
| Size: M , ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length | |
| Size: XL Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length | |
| Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length | |
| Head set | Semi-integrated, 1-1/8" |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt,160 mm |
| Size: M , ML , L , XL , XXL Shimano RT26, 6-bolt,180 mm | |
| Brake Set | Shimano MT200 hydraulic disc |
Weight
| Weight | M - 14.60 kg / 32.19 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Size
2XS
XS
S
M
M/L
L
XL
2XL
Rider Height
135 - 145 cm
4'5" - 4'9"
145 - 155 cm
4'9" - 5'1"
155 - 165 cm
5'1" - 5'5"
165 - 176 cm
5'5" - 5'9"
173 - 180 cm
5'8" - 5'11"
177 - 188 cm
5'10" - 6'2"
188 - 195 cm
6'2" - 6'5"
195 - 203 cm
6'5" - 6'8"
Inseam
64 - 68 cm
25" - 27"
69 - 73 cm
27" - 29"
74 - 78 cm
29" - 31"
79 - 83 cm
31" - 33"
81 - 86 cm
32" - 34"
84 - 89 cm
33" - 35"
89 - 91 cm
35" - 36"
91 - 97 cm
36" - 38"
All measurements provided in cm unless otherwise stated.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.5" | XS | 27.5" | 34.0 | 73.8° | 74.0° | 9.0 | 66.5° | 55.1 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 109.2 | 65.8 | 39.0 | 56.3 |
| 15.5" | S | 27.5" | 37.0 | 73.8° | 74.0° | 10.0 | 66.5° | 57.9 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 112.1 | 69.2 | 41.5 | 57.2 |
| 17.5" | M | 29" | 42.0 | 73.4° | 74.0° | 10.5 | 66.5° | 61.5 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 116.3 | 74.7 | 44.0 | 60.9 |
| 18.5" | ML | 29" | 43.5 | 73.4° | 74.0° | 11.0 | 66.5° | 63.1 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 118.0 | 75.9 | 45.5 | 61.4 |
| 19.5" | L | 29" | 45.0 | 73.4° | 74.0° | 11.5 | 66.5° | 64.7 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 119.7 | 77.1 | 47.0 | 61.8 |
| 21.5" | XL | 29" | 50.0 | 73.4° | 74.0° | 13.5 | 66.5° | 67.8 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 123.0 | 79.1 | 49.5 | 63.7 |
| 23.0" | XXL | 29" | 54.0 | 73.4° | 74.0° | 15.0 | 66.5° | 70.7 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 126.1 | 81.6 | 52.0 | 65.1 |
