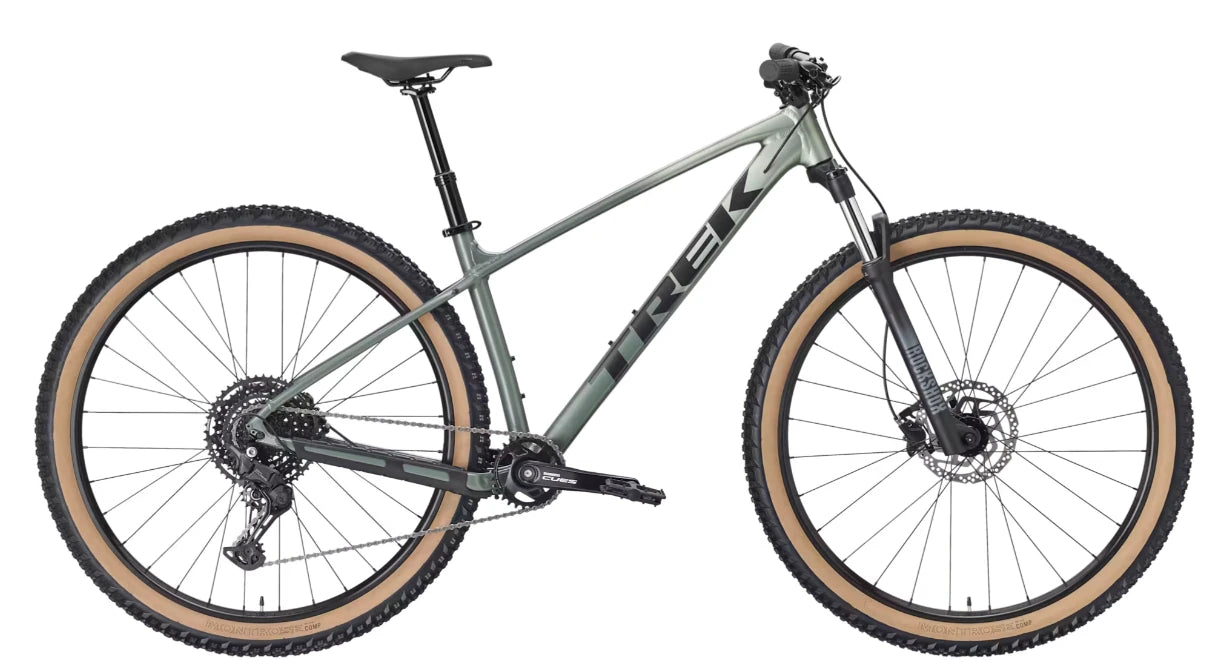

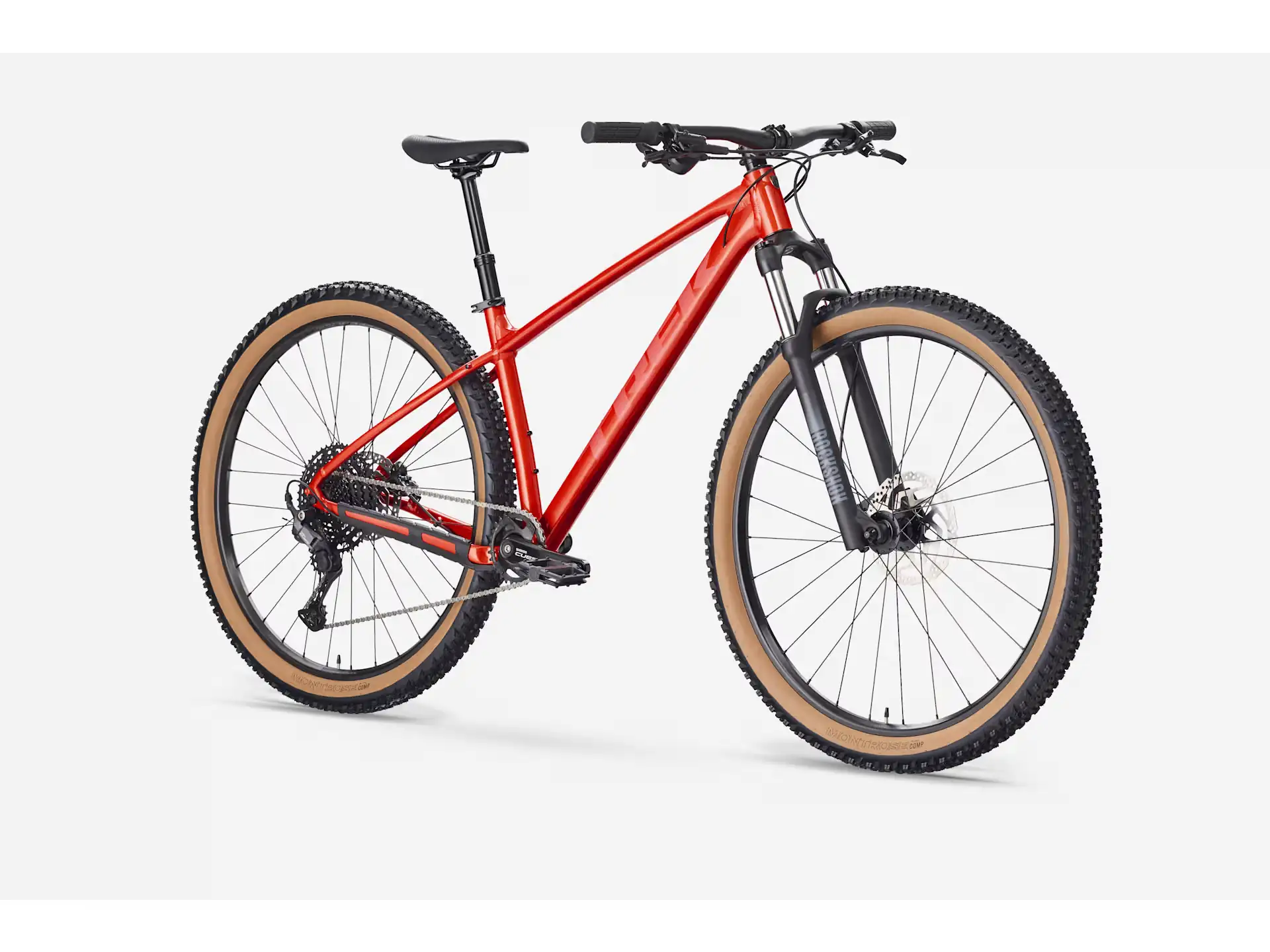

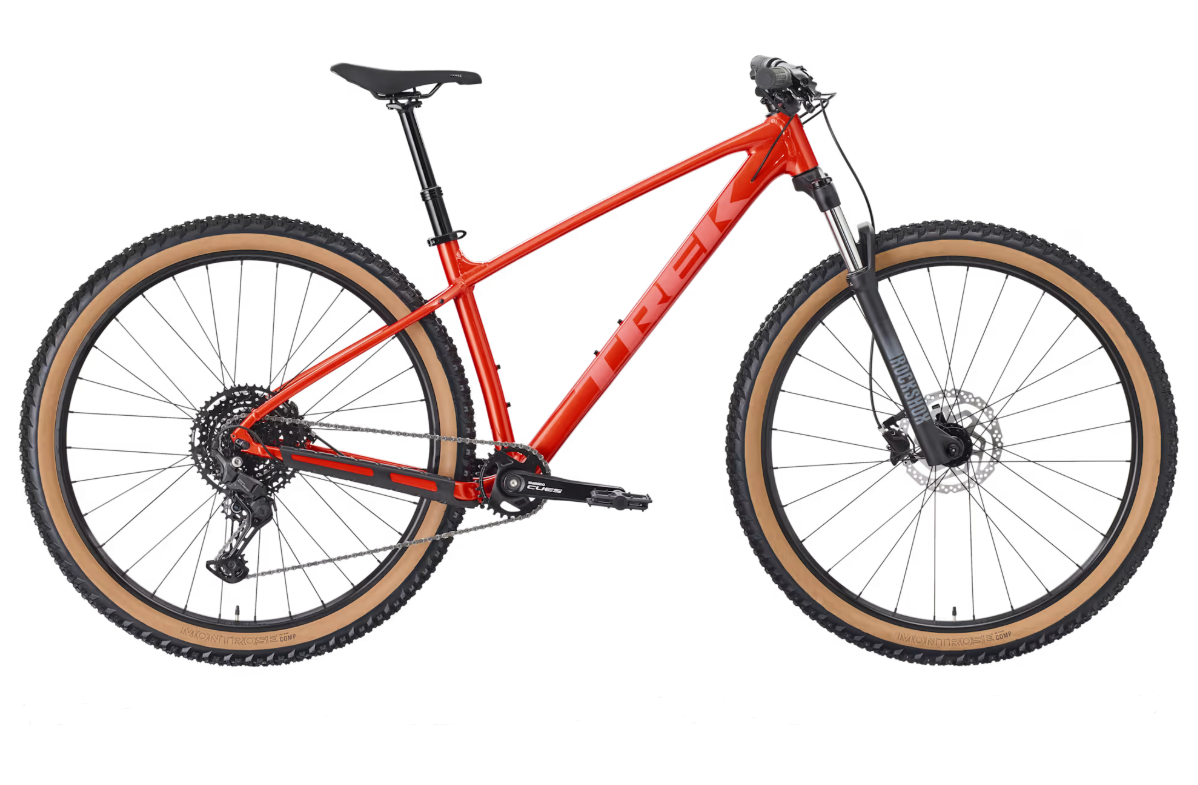

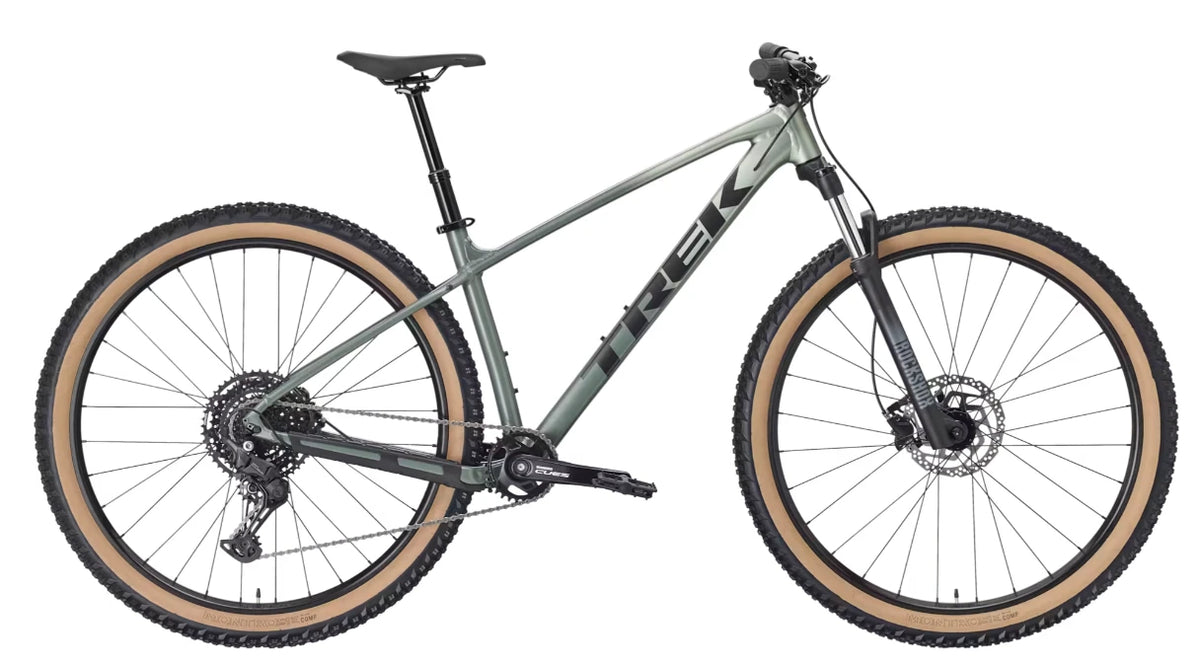

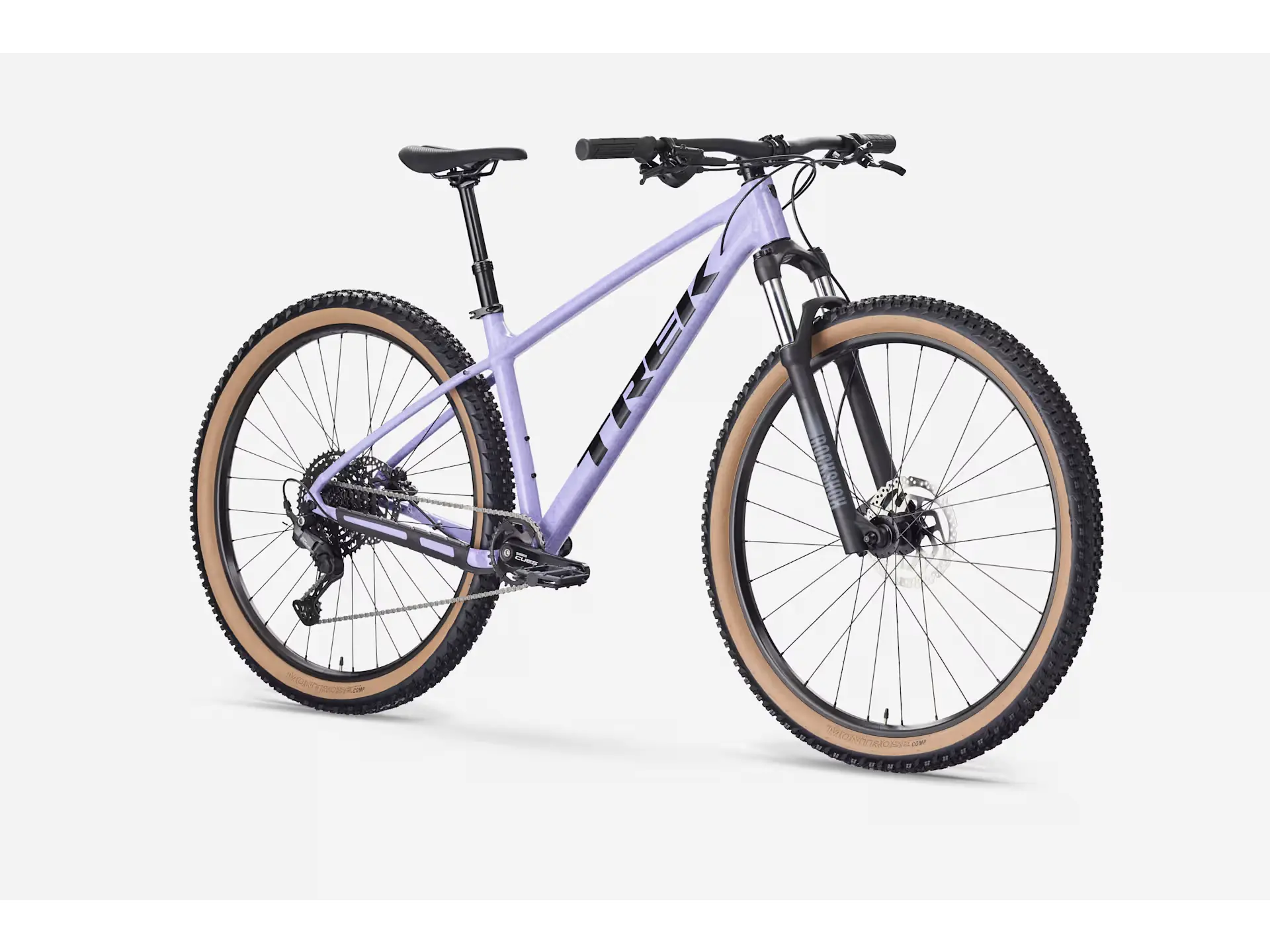

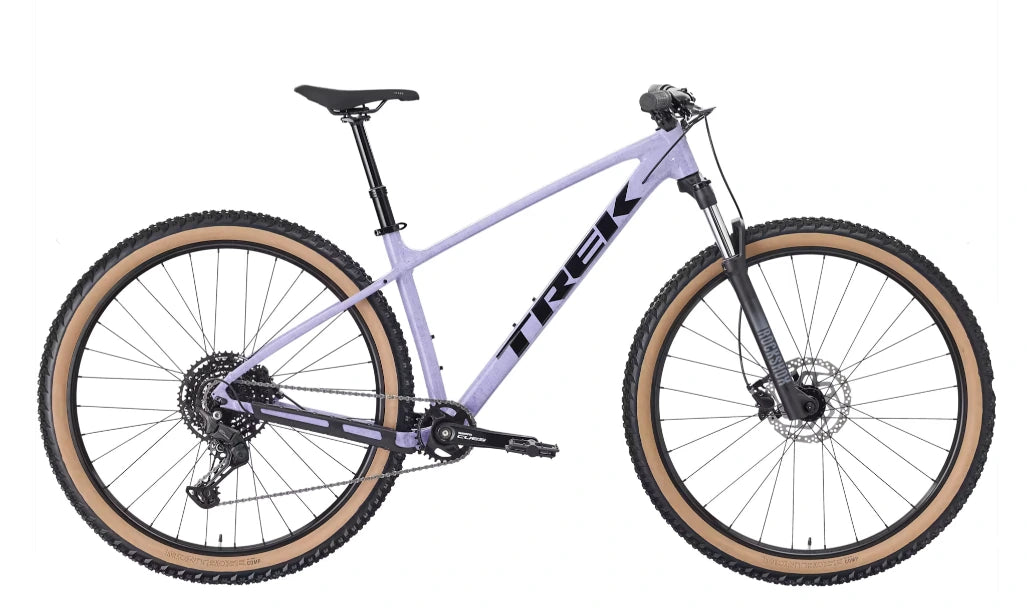

The Marlin 6 is a great choice if you’re looking to level up your trail skills. Its updated frame has a more relaxed geometry that gives you better control on downhill sections, and the front suspension helps smooth out rough terrain. Plus, with built-in mounts for a rack and kickstand, it’s easy to gear it up for whatever adventure comes next on or off the trail.



Vendor: Trek
SKU: 197216252436
Availability: In stock
Product type: Mountain Bikes
3,675.40
4,324.00
3,675.40

Split your payments into 4 with tabby. No interest, no fees!

tabby
Color: Matte Lichen/Keswick Green Fade
Size: S (27.5" wheel)
Model: 2026
Terms & Conditions
Marlin 6 Gen 3

Marlin 6 Gen 3

4,324.00 3,675.40
Marlin 6 Gen 3
Marlin 6 Gen 3
Marlin 6 Gen 3
Marlin 6 Gen 3
Marlin 6 Gen 3
Marlin 6 Gen 3
Marlin 6 Gen 3
Marlin 6 Gen 3
Marlin 6 Gen 3
Marlin 6 Gen 3
Marlin 6 Gen 3
Marlin 6 Gen 3
Marlin 6 Gen 3

Marlin 6 Gen 3

4,324.00 3,675.40
Color: Matte Lichen/Keswick Green Fade
Size: S (27.5" wheel)
Model: 2026
    Overview
    Features
    Specs
    Sizing


    The Walkthrough

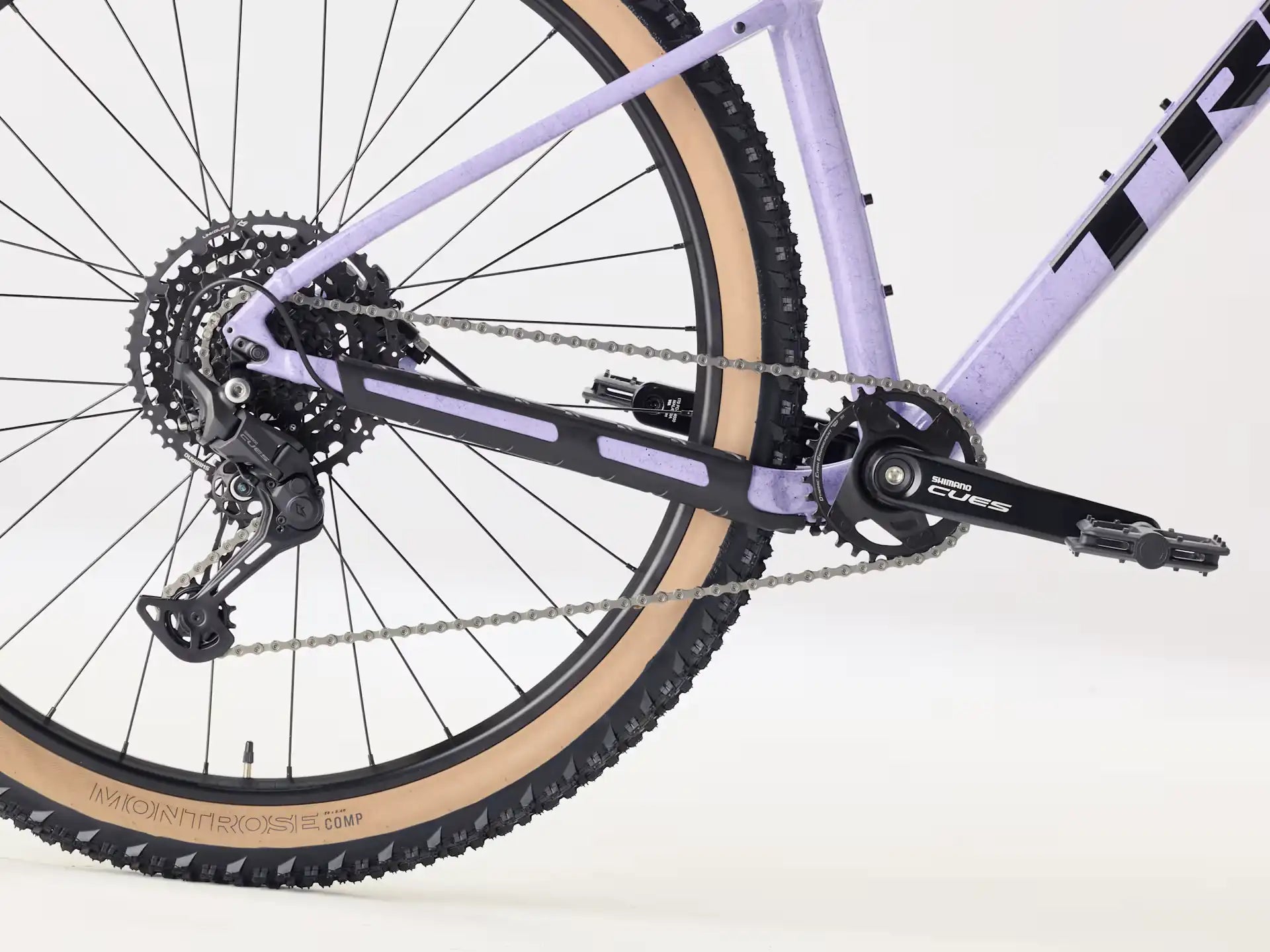

    Shimano CUES

    Shimano CUES

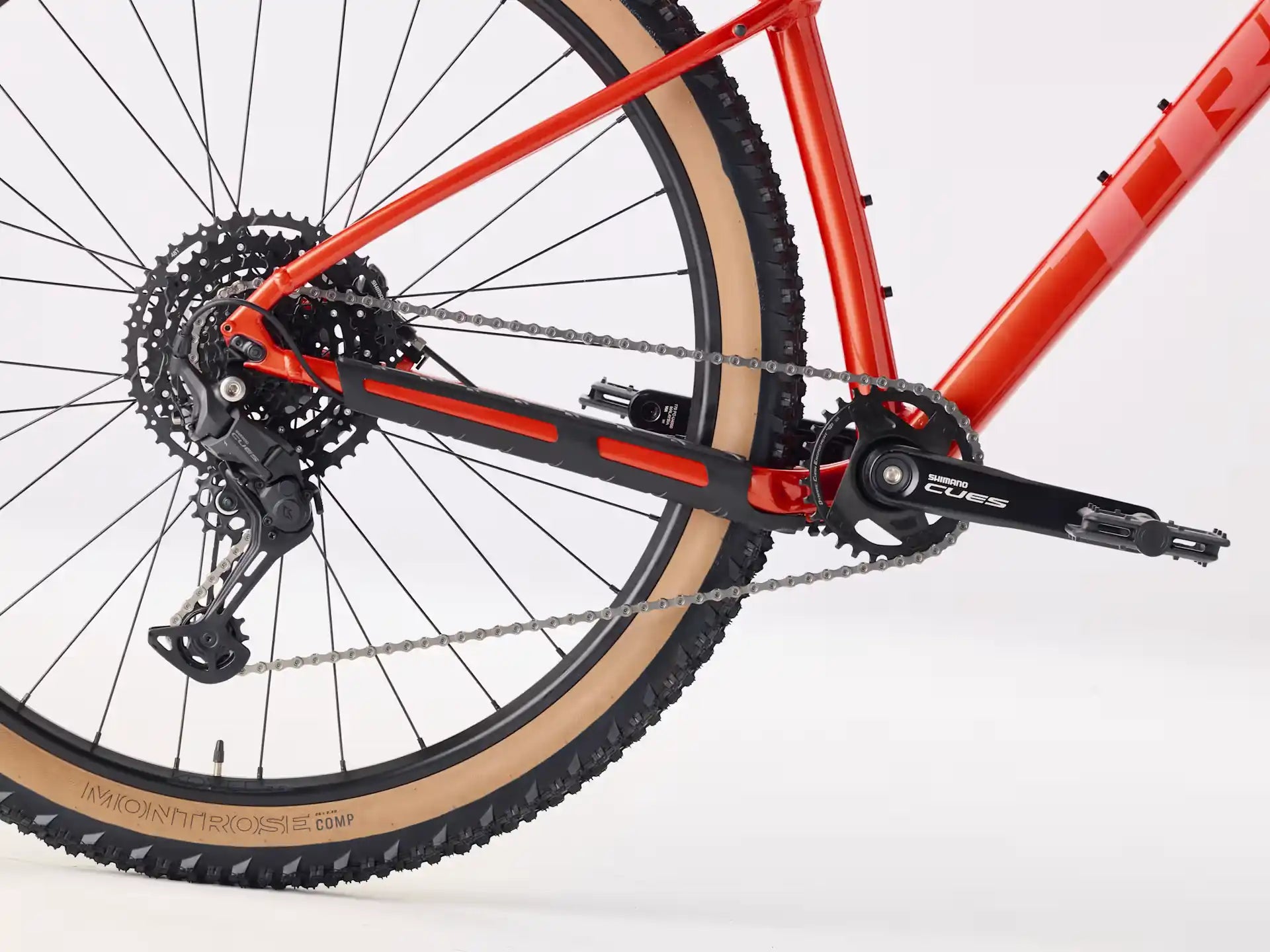

    Shimano CUES was made because riders want a drivetrain that is reliable, performs well, and lasts a long time. It works well for both regular and electric bikes, and it lasts a long time. Shimano's LINKGLIDE technology, which is at the heart of the bike, helps the chain, cassette, and chainrings last longer so you can ride for longer and replace parts less often.


    Shimano LINKGLIDE

    Shimano LINKGLIDE

    LINKGLIDE technology is built to last, offering outstanding durability without sacrificing smooth, precise shifting. It also delivers a solid, comfortable pedaling feel making every ride that much better. You’ll find it exclusively on Shimano CUES drivetrains.


    High technology, high value

    High technology, high value

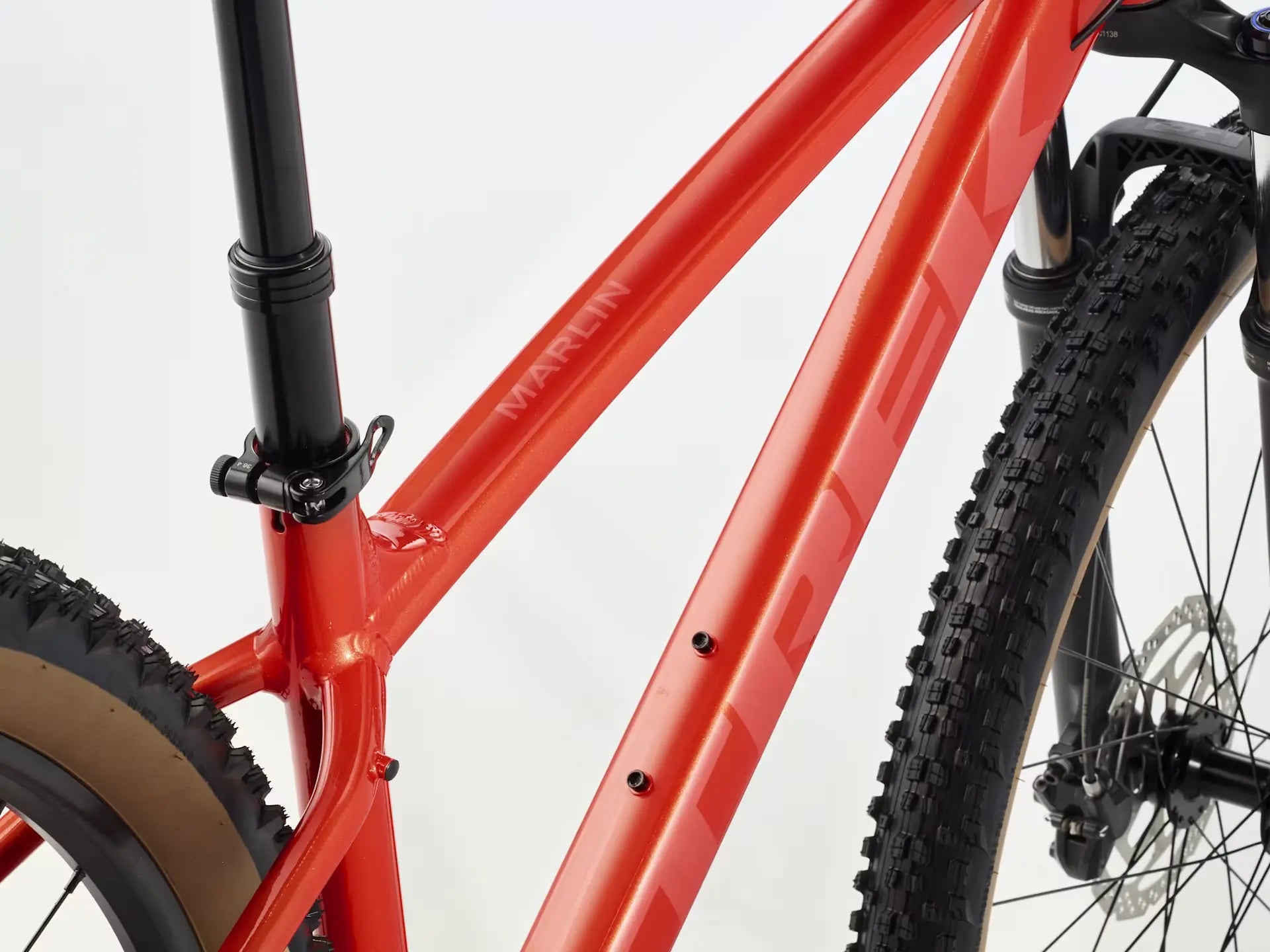

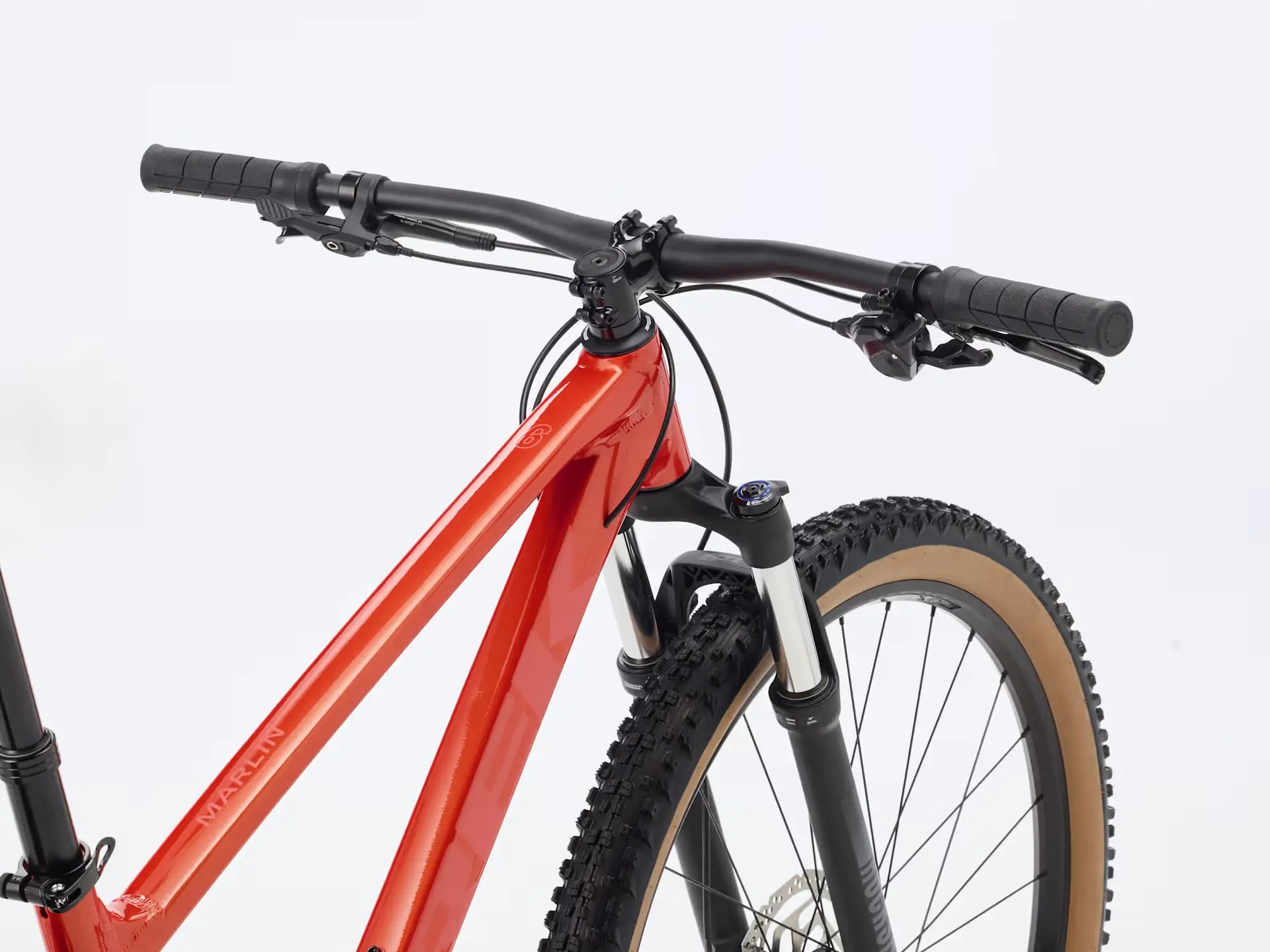

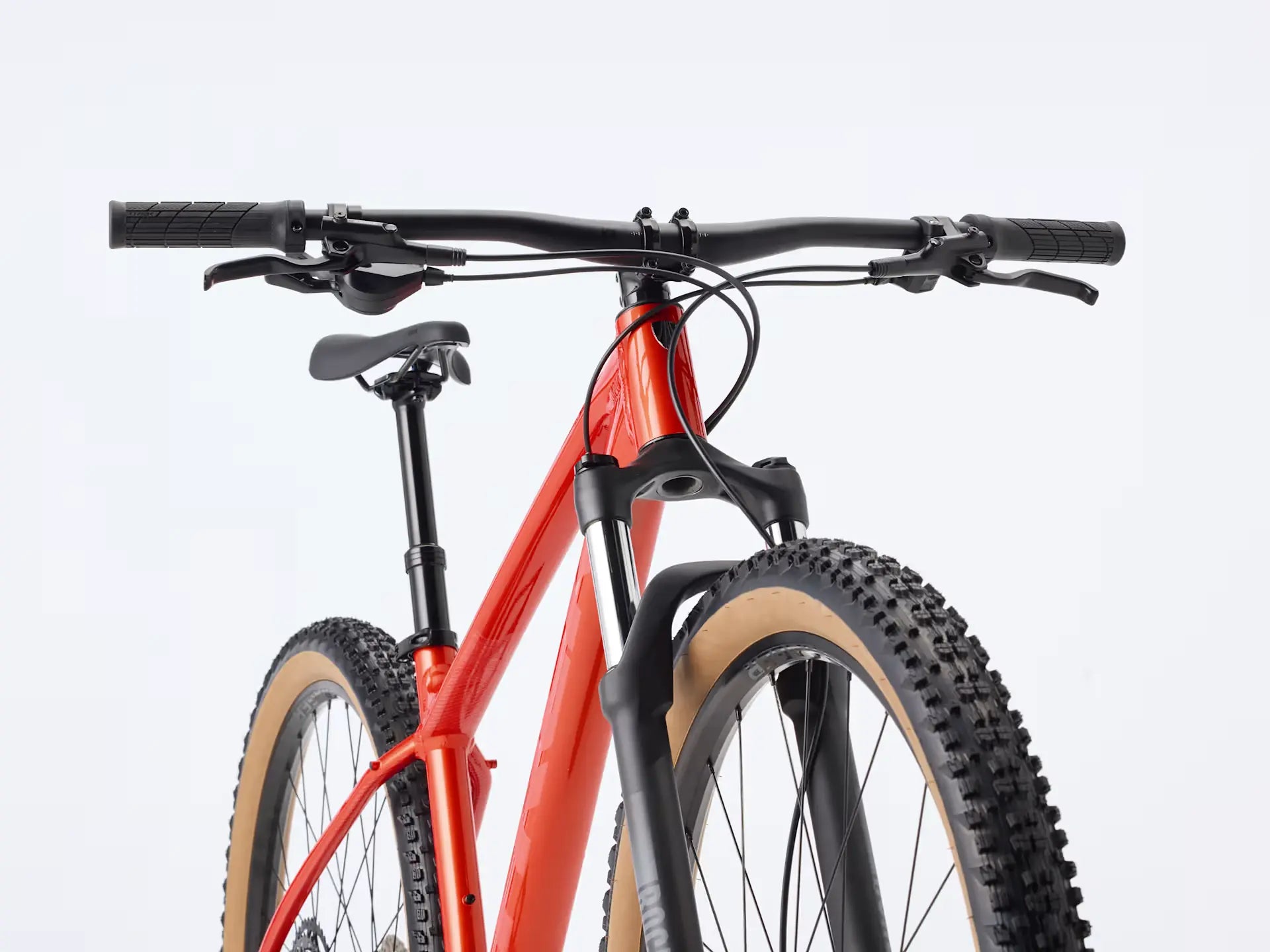

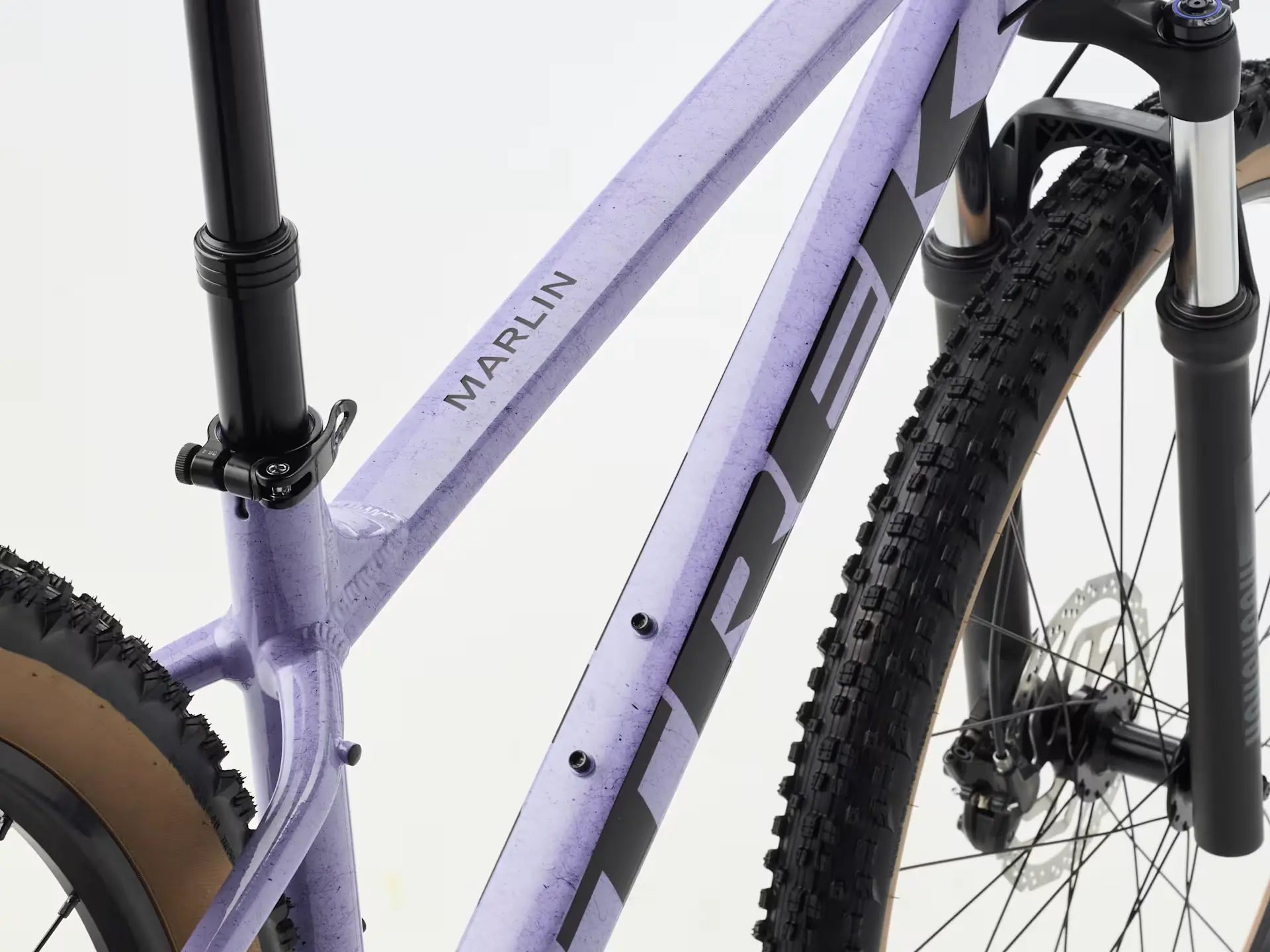

    The Marlin doesn’t just ride well it looks sharp too. It’s loaded with thoughtful features you’d usually only see on higher-end bikes, like a sleek frame with internal routing for the shift cables and brake hoses. That not only gives it a clean, modern look, but also helps protect the cables from dirt and weather, so they last longer and stay running smooth.



    *Please note - spec applies to all sizes unless listed separately

    *Frame
    Size: XS
    Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
    Size: S , M , ML , L , XL
    Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
    *Fork
    Size: XS , S
    RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
    Size: M , ML , L , XL
    RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

    Hub front
    Formula DC-20, alloy, 6-bolt, 100mm
    Skewer front
    116x5mm QR
    Hub rear
    Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
    Skewer rear
    173x5mm QR
    *Rim
    Size: XS , S , M , ML , L , XL
    Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
    Size: M , ML , L , XL
    Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
    *Tire
    Size: XS , S
    Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40''
    Size: M , ML , L , XL
    Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40''
    Rim strip
    Bontrager TLR
    Max tire size
    Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

    Shifter
    Shimano U6000, 10 speed
    Rear derailleur
    Shimano CUES U6000 GS
    *Crank
    Size: XS , S , M , ML
    Shimano U4000, 30T chainring, 170mm length
    Size: L , XL
    Shimano U4000, 30T chainring, 175mm length
    Bottom bracket
    Shimano, 73mm, threaded cartridge, 122.5mm spindle
    Cassette
    Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
    Chain
    Shimano LG500, 9/10/11 speed
    Pedal
    Nylon platform
    Max chainring size
    1x: See FAQ, 2x: 36T, 3x: 42T

    Saddle
    Bontrager Verse Short, stainless steel rails
    *Seatpost
    Size: XS , S
    TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
    Size: M
    TranzX JD-YSI34, 125mm travel, internal routing, 31.6mm, 405mm length
    Size: ML , L , XL
    TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
    *Handlebar
    Size: XS
    Bontrager alloy, 31.8mm, 5mm rise, 690mm width
    Size: S
    Bontrager alloy, 31.8mm, 15mm rise, 720mm width
    Size: M , ML , L , XL
    Bontrager alloy, 31.8mm, 15mm rise, 750mm width
    Grips
    Trek Line Comp, nylon lock-on
    *Stem
    Size: XS , S
    Bontrager Comp, 31.8mm, 7 degree, 35mm length
    Size: M , ML , L
    Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
    Size: XL
    Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
    Headset
    Semi-integrated, 1-1/8''
    *Brake rotor
    Size: XS , S , M , ML , L , XL
    Shimano RT26, 6-bolt, 160mm
    Size: M , ML , L , XL
    Shimano RT26, 6-bolt, 180mm
    Brake Set
    Shimano MT200 hydraulic disc
    Rotor size
    Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

    Weight
    M - 15.00 kg / 33.07 lbs
    Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

    Weights are based off pre-production products at time of publication. Weights may vary in final production.

    Size

    XS

    S

    M

    ML

    L

    XL

    2XL

    Rider Height

    145 - 155 cm

    4'9" - 5'1"

    155 - 165 cm

    5'1" - 5'5"

    5'1" - 5'5"

    5'5" - 5'10"

    173 - 180 cm

    5'8" - 5'11"

    177 - 188 cm

    5'10" - 6'2"

    188 - 195 cm

    6'2" - 6'5"

    195 - 203 cm

    6'5" - 6'8"

    Inseam

    69 - 73 cm

    27" - 29"

    74 - 78 cm

    29" - 31"

    79 - 83 cm

    31" - 33"

    81 - 86 cm

    32" - 34"

    84 - 89 cm

    33" - 35"

    89 - 91 cm

    35" - 36"

    91 - 97 cm

    36" - 38"
