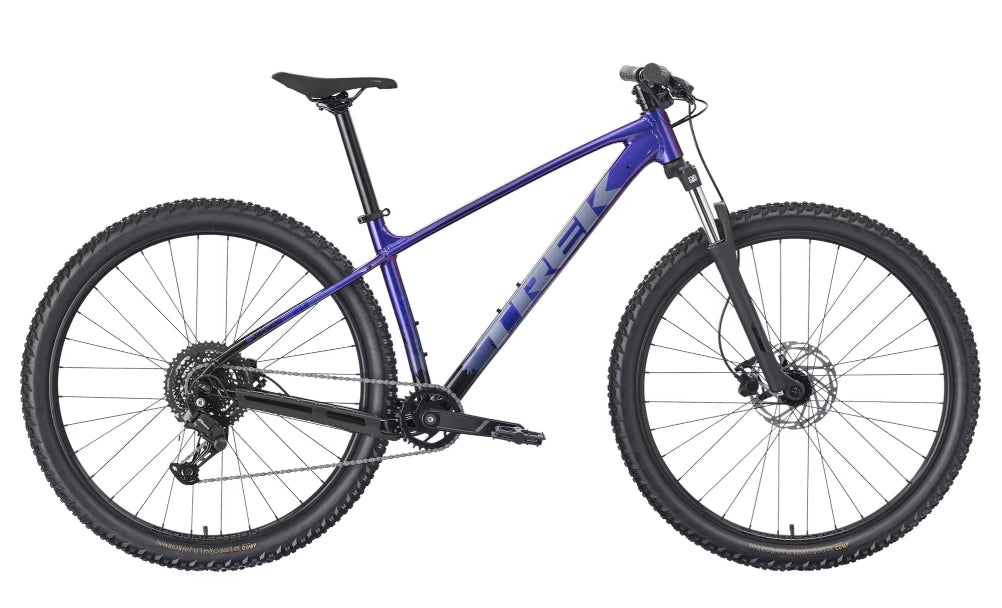

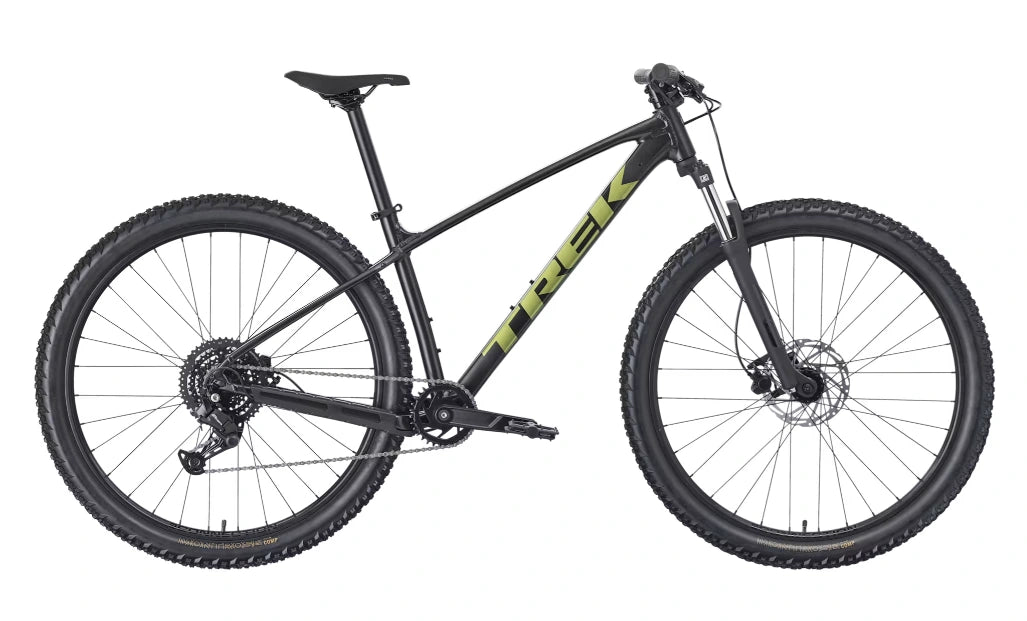

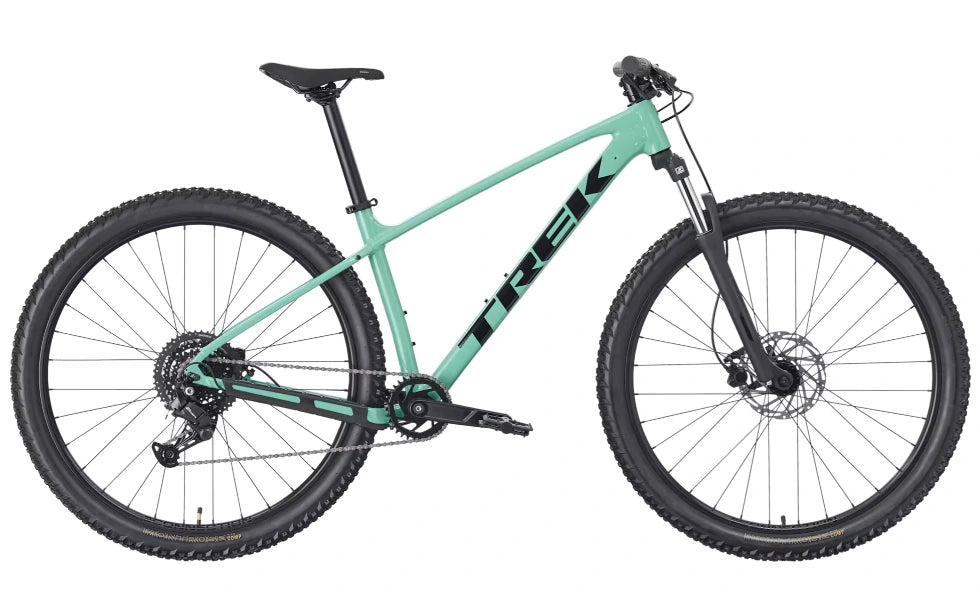

Marlin 4 Gen 3
The Marlin 4 Gen 3 features an 8-speed Shimano ESSA drivetrain, a robust frame, and front suspension to reduce vibrations. You can easily set it up for daily use because it has mounts for a rack and a kickstand. This sturdy, all-purpose bike has everything you could possibly need.
- 2,199.38
2,587.50- 2,199.38
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
+
+
Overview
Features
Specs
Sizing
Geometry
The Walkthrough
Top curved tube
The bike has a lower standover height on smaller bike frames because the top tube slopes downward close to the seat. For shorter riders, this is fantastic news because it makes getting on and off the bike more comfortable and easy. Since taller riders typically don't require that additional clearance, larger frames typically have a straight top tube instead.
Fit for every rider
The Marlin is available in seven frame sizes, so there’s a fit for just about every rider tall or short. Thanks to Smart Wheel Size, you’ll get the fastest and most efficient wheel size for your frame. And if you’re on the smaller side, you’re covered too. Those sizes come with short-reach brake levers and narrower handlebars to make sure everything feels comfortable and easy to control.
High technology, high value
The Marlin doesn’t just ride well it looks sharp too. It’s loaded with thoughtful features you’d usually only see on higher-end bikes, like a sleek frame with internal routing for the shift cables and brake hoses. That not only gives it a clean, modern look, but also helps protect the cables from dirt and weather, so they last longer and stay running smooth.
*Please note - spec applies to all sizes unless listed separately
- *Frame
- Size: XXS , XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkewSize: S , M , ML , L , XL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew - *Fork
- Size: XXS
SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26'' wheel, 100mm QR, 100mm travelSize: XS
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travelSize: S
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travelSize: M , ML , L , XL
SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
- Hub front
- Formula DC-20, alloy, 6-bolt, 100x5mm
- Skewer front
- Hub rear
- Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
- Skewer rear
- Rim
- Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
- *Tire
- Size: XXS
Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35''Size: XS , S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''Size: M , ML , L , XL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4'' - Max tire size
- Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer
- Shifter
- Shimano M315, 8 speed
- Rear derailleur
- Shimano ESSA U2000
- *Crank
- Size: XXS , XS
ProWheel alloy, 30T narrow-wide steel ring, 160mm lengthSize: S , M , ML
ProWheel alloy, 30T narrow-wide steel ring, 170mm lengthSize: L , XL
ProWheel alloy, 30T narrow-wide steel ring, 175mm length - Bottom bracket
- Threaded cartridge
- Cassette
- Shimano HG300, 11-45, 8 speed
- Chain
- KMC Z8.3, 8 speed
- Pedal
- nylon platform
- Max chainring size
- 1x: See FAQ, 2x: 36T, 3x: 42T
- Saddle
- *Seatpost
- Size: XXS
Bontrager alloy, 31.6mm, 12mm offset, 300mm lengthSize: XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm lengthSize: ML , L , XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length - *Handlebar
- Size: XXS , XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm widthSize: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm widthSize: M , ML , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width - Grips
- *Stem
- Size: XXS , XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm lengthSize: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length - Headset
- Semi-integrated, 1-1/8''
- *Brake
- Size: XXS , XS , S
Tektro HD-M276 hydraulic discSize: XXS , XS , S , M , ML , L , XL
Power BH-M286TF hydraulic disc, 160mm rotorSize: M , ML , L , XL
Power BH-M286TF hydraulic disc, 180mm rotorSize: M , ML , L , XL
Tektro HD-M275 hydraulic disc - *Brake rotor
- Size: XXS , XS , S , M , ML , L , XL
Tektro, 6-bolt, 160mmSize: M , ML , L , XL
Tektro, 6-bolt, 180mm - Rotor size
- Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer
- Weight
- M - 14.90 kg / 32.85 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
Size
XS
S
M
ML
L
XL
2XL
Rider Height
145 - 155 cm
4'9" - 5'1"
155 - 165 cm
5'1" - 5'5"
165 - 176 cm
5'5" - 5'9"
173 - 180 cm
5'8" - 5'11"
177 - 188 cm
5'10" - 6'2"
188 - 195 cm
6'2" - 6'5"
195 - 203 cm
6'5" - 6'8"
Inseam
69 - 73 cm
27" - 29"
74 - 78 cm
29" - 31"
79 - 83 cm
31" - 33"
81 - 86 cm
32" - 34"
84 - 89 cm
33" - 35"
89 - 91 cm
35" - 36"
91 - 97 cm
36" - 38"
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5" | XXS | 26" | 32.0 | 74.0° | 74.0° | 9.0 | 66.5° | 52.1 | 30.2 | 3.8 | 43.3 | 4.0 | 10.4 | 106.0 | 65.0 | 36.5 | 54.4 |
| 14.5" | XS | 27.5" | 34.0 | 73.8° | 74.0° | 9.0 | 66.5° | 55.1 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 109.2 | 65.8 | 39.0 | 56.3 |
| 15.5" | S | 27.5" | 37.0 | 73.8° | 74.0° | 10.0 | 66.5° | 57.9 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 112.1 | 69.2 | 41.5 | 57.2 |
| 17.5" | M | 29" | 42.0 | 73.4° | 74.0° | 10.5 | 66.5° | 61.5 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 116.3 | 74.7 | 44.0 | 60.9 |
| 18.5" | ML | 29" | 43.5 | 73.4° | 74.0° | 11.0 | 66.5° | 63.1 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 118.0 | 75.9 | 45.5 | 61.4 |
| 19.5" | L | 29" | 45.0 | 73.4° | 74.0° | 11.5 | 66.5° | 64.7 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 119.7 | 77.1 | 47.0 | 61.8 |
| 21.5" | XL | 29" | 50.0 | 73.4° | 74.0° | 13.5 | 66.5° | 67.8 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 123.0 | 79.1 | 49.5 | 63.7 |
