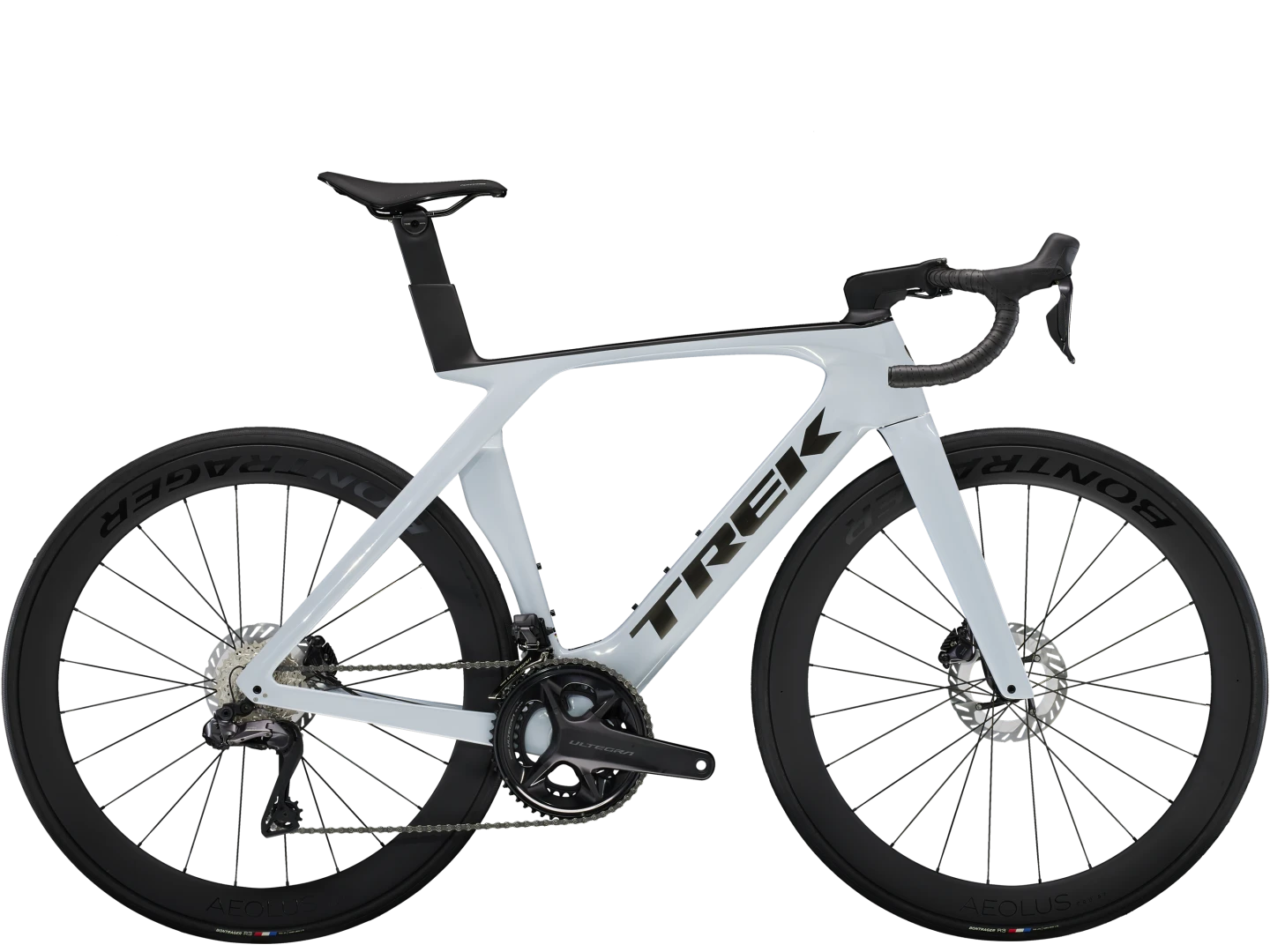

Madone SL 7 Gen 7
The Madone SL 7 Gen 7 offers legendary speed, cutting-edge tech and unbelievable ride quality in a 500 Series OCLV Carbon package that keeps things light and quick for fast rides and races. IsoFlow technology smooths out bumps in the road while lowering weight and offering an aerodynamic advantage over your competition.
- 28,031.25
- 28,031.25
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
+
+
Overview
Features
Specs
Sizing
Geometry
It's just too perfect. - Madone SL 7 Gen 7
You’re seeking a blend of speed, quality, and performance in a striking carbon frame. With a top-tier electronic drivetrain, durable tyres that offer excellent cornering and grip, groundbreaking IsoFlow aerodynamics, and a fully aerodynamic road bike, this model ensures every ride feels like your fastest.
Technology you get
This bike features a 500 Series OCLV Carbon frame with aero Kammtail tube shaping and the innovative IsoFlow seat tube. It includes discreetly routed cables, a lightning-fast Shimano Ultegra Di2 12-speed electronic drivetrain, Bontrager RSL Aero OCLV Carbon handlebars, and Bontrager Aeolus Pro 51 tubeless-ready carbon wheels.
In general
The Madone SL 7 Gen 7 is a high-performance, race-ready machine designed to deliver peak speed and agility on every road ride. It’s built for leading the pack and achieving podium finishes, making it the perfect choice for those who want to set the pace and conquer KOMs.
Why would you like it?
The Madone SL 7 Gen 7 is a high-performance, race-ready machine designed to deliver peak speed and agility on every road ride. It’s built for leading the pack and achieving podium finishes, making it the perfect choice for those who want to set the pace and conquer KOMs.
the walktrough
Unprecedented aerodynamics
Our 7th generation Madone SL features the latest aerodynamic Kammtail frame shapes, aero cockpit design, and optimized rider positioning, making it our fastest Madone SL yet.
New ergonomic handlebar
The newly redesigned handlebar is 3 cm narrower in the hoods than in the drops, resulting in a more comfortable and ergonomic riding posture for faster racing and improved aerodynamics. This design provides better control without requiring you to change your customary handlebar size—just keep with your current configuration. For example, if you normally ride a 42 centimeter bar/stem, go for 42 cm in the drops and 39 cm in the hoods.
Shimano 105 Di2
The Shimano 105 Di2 R7100, which uses a shared Di2 design inherited from Dura-Ace and Ultegra, delivers improved performance at a low price. This groupset, with its superior ergonomics, 105-optimized gear combinations, and superb hydraulic disc braking system, ushers in a new era of 12-speed electrical performance. Furthermore, the Shimano E-Tube software allows you to completely modify your drivetrain, adjusting the setup to your exact specifications.
Invisible cable routing
The most aerodynamic bike's brake and shift cables are run through the frame for the smoothest, most aerodynamic performance possible.
Carbon care wheels loyalty programme
Our Bontrager carbon wheels loyalty programme ensures that if your wheels are damaged within two years of buying them, you can replace or repair them for free.
T47 Bottom Bracket
A threaded T47 bottom bracket is a key feature of this bike, offering reliable performance and straightforward maintenance, plus added stiffness for superior power transfer and pedaling efficiency.
500 Series OCLV
The 500 Series OCLV provides a remarkable balance of light weight, power, and rigidity, making it suitable for Trek's innovative frame technologies.
Blender Compatible Stem
With the support of Bontrager's blender stem technology, you can attach your equipment perfectly and easily to the handlebar.
H1.5 Fit
The H1.5 geometry, created in partnership with the Trek-Segafredo professional cycling teams, puts the rider in the best aero race position. It's the ideal balance, customized to the requirements of our top racers.
Warranted for life
When you choose Bontrager wheels, you are choosing a lifetime of trust and investment that will increase the handling and performance of your bicycle. All Bontrager wheels are covered by a lifetime warranty.
*Please note – spec applies to all sizes unless listed separately
- Frame
- 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, 142x12 mm thru axle
- Fork
- Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100 mm thru axle
- Weight
- 56 - 8.00 kg/17.64 lb
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Battery
- Shimano BT-DN300
- Charger
- Charging cable included
- Shifter
- Shimano Ultegra R8170 Di2, 12-speed
- Front derailleur
- Shimano Ultegra R8150 Di2, braze-on, down swing
- Rear derailleur
- Shimano Ultegra R8150 Di2, 34T max cog
- *Crank
- Size: 47
Shimano Ultegra R8100, 52/36, 165 mm lengthSize: 50, 52
Shimano Ultegra R8100, 52/36, 170 mm lengthSize: 54, 56
Shimano Ultegra R8100, 52/36, 172.5 mm lengthSize: 58, 60, 62
Shimano Ultegra R8100, 52/36, 175 mm length - Bottom bracket
- Praxis, T47 threaded, internal bearing
- *Cassette
- Size: 47, 50, 52, 54, 56, 58, 60, 62
Shimano Ultegra R8101, 11-30, 12-speedSize: 47, 50, 52, 54, 56, 58, 60, 62
Shimano Ultegra R8100, 11-30, 12-speed - *Chain
- Size: 47, 50, 52, 54, 56, 58, 60, 62
Shimano Ultegra/XT M8100, 12-speedSize: 47, 50, 52, 54, 56, 58, 60, 62
Shimano XT M8100, 12-speed - Max. chainring size
- 1x: 50T, 2x: 54/40
- Wheel front
- Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
- Wheel rear
- Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle
- Skewer front
- Bontrager Switch thru-axle
- Skewer rear
- Bontrager Switch thru-axle, removable lever
- Tyre
- Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
- Max tyre size
- 32 mm (as measured, see manual for details)
- *Saddle
- Size: 47, 50, 52
Bontrager Aeolus Comp, steel rails, 155 mm widthSize: 54, 56, 58, 60, 62
Bontrager Aeolus Comp, steel rails, 145 mm width - *Seatpost
- Size: 47, 50, 52, 54
Madone aero carbon seat post, 0 mm offset, short lengthSize: 56, 58, 60, 62
Madone aero carbon seat post, 0 mm offset, long length - *Handlebar
- Size: 47
Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop widthSize: 50, 52
Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop widthSize: 54, 56
Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop widthSize: 58, 60, 62
Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width - Handlebar tape
- Bontrager Supertack Perf tape
- *Stem
- Size: 47
Trek RCS Pro, -7-degree, 70 mm lengthSize: 50
Trek RCS Pro, -7-degree, 80 mm lengthSize: 52, 54
Trek RCS Pro, -7-degree, 90 mm lengthSize: 56, 58
Trek RCS Pro, -7-degree, 100 mm lengthSize: 60, 62
Trek RCS Pro, -7-degree, 110 mm length - Brake
- Shimano Ultegra hydraulic disc, flat mount
- Brake rotor
- Shimano CL800, CentreLock, 160 mm
- Rotor size
- Max brake rotor sizes: 160 mm front and rear
Size
47
50
52
54
56
58
60
62
Rider Height
152 - 158 cm
5'0" - 5'2"
158 - 163 cm
5'2" - 5'4"
163 - 168 cm
5'4" - 5'6"
168 - 174 cm
5'6" - 5'9"
174 - 180 cm
5'9" - 5'11"
180 - 185 cm
5'11" - 6'1"
185 - 190 cm
6'1" - 6'3"
190 - 195 cm
6'3" - 6'5"
Inseam
71 - 75 cm
28" - 30"
74 - 77 cm
29" - 30"
76 - 79 cm
30" - 31"
78 - 82 cm
31" - 32"
81 - 85 cm
32" - 33"
84 - 87 cm
33" - 34"
86 - 90 cm
34" - 35"
89 - 92 cm
35" - 36"
