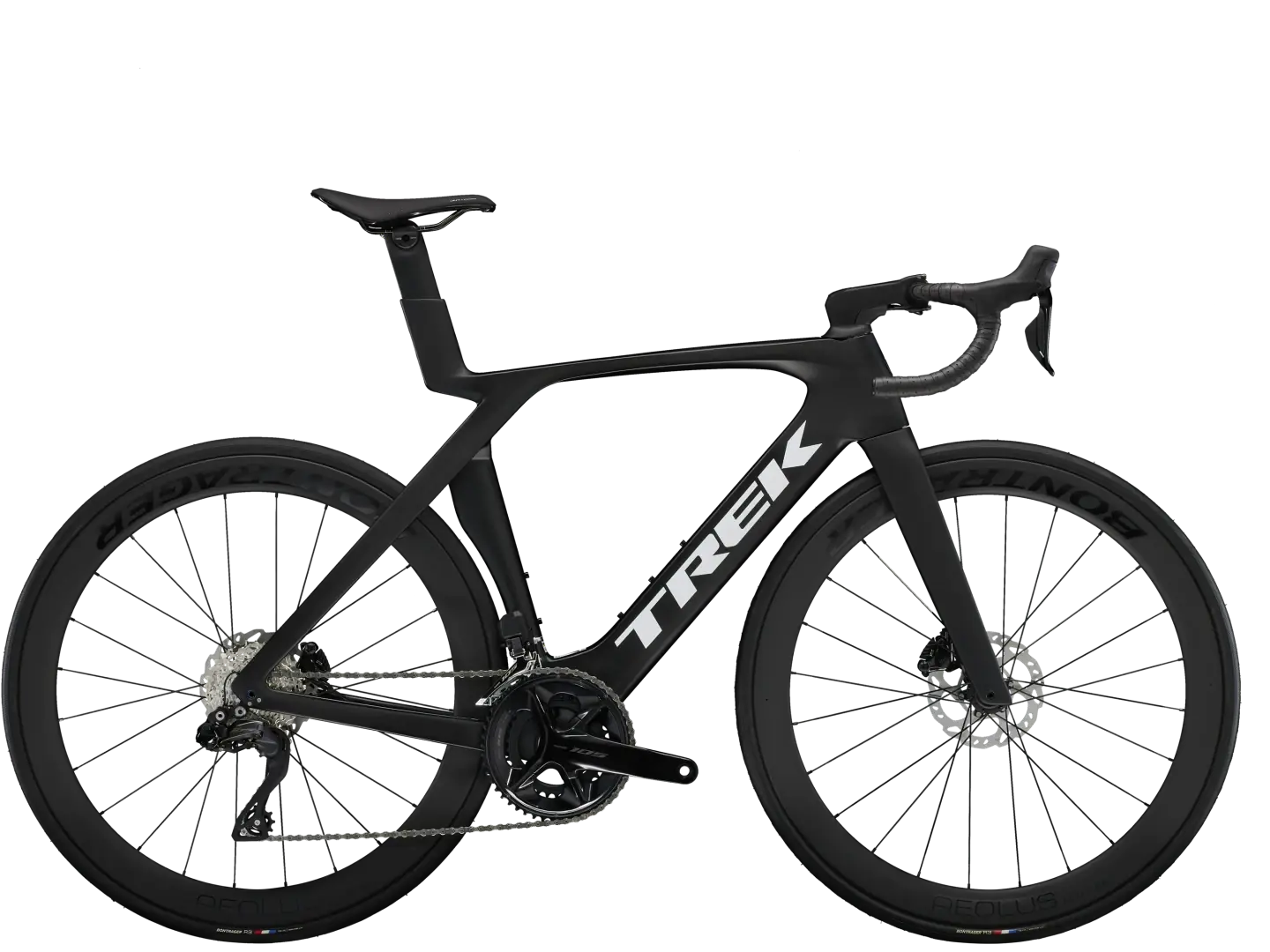

Madone SL 6 Gen 7
The Madone SL 6 Gen 7 provides excellent ride qualities in a lightweight 500 Series OCLV Carbon frame. IsoFlow technology improves ride comfort by absorbing road bumps, reducing weight, and increasing aerodynamics. Features include Kammtail aero tube designs, Shimano 105 Di2 electronic drivetrain, carbon wheels, and hidden cable routing.
- 23,718.75
- 23,718.75
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
+
+
Compare color
Overview
Features
Specs
Sizing
Geometry
It's just too perfect.
You crave speed, performance, and high-quality features without the premium price tag. You want a sleek carbon frame that stands out, a reliable electronic drivetrain, durable tyres, and groundbreaking IsoFlow aerodynamics, all on an aero-focused bike that makes every ride feel like your fastest yet.
Technology you get
A 500 Series OCLV Carbon frame with Kammtail aero tube shaping and the revolutionary IsoFlow seat tube for enhanced aerodynamics. The bike also features clean cable routing, a Shimano 105 Di2 12-speed electronic drivetrain, Bontrager RSL Aero OCLV Carbon handlebars, and Bontrager Aeolus Elite 50 tubeless-ready carbon wheels.
In general
The Madone SL 6 Gen 7 is a top-tier, race-ready machine built for speed. It's designed to lead the pack, conquer KOMs, and deliver your fastest road rides yet.
Why would you like it?
The Madone SL 6 Gen 7 is a top-tier, race-ready machine built for speed. It's designed to lead the pack, conquer KOMs, and deliver your fastest road rides yet.
the walktrough
Unprecedented aerodynamics
Our 7th generation Madone SL features the latest aerodynamic Kammtail frame shapes, aero cockpit design, and optimized rider positioning, making it our fastest Madone SL yet.
New ergonomic handlebar
The newly redesigned handlebar is 3 cm narrower in the hoods than in the drops, resulting in a more comfortable and ergonomic riding posture for faster racing and improved aerodynamics. This design provides better control without requiring you to change your customary handlebar size—just keep with your current configuration. For example, if you normally ride a 42 centimeter bar/stem, go for 42 cm in the drops and 39 cm in the hoods.
Shimano 105 Di2
The Shimano 105 Di2 R7100, which uses a shared Di2 design inherited from Dura-Ace and Ultegra, delivers improved performance at a low price. This groupset, with its superior ergonomics, 105-optimized gear combinations, and superb hydraulic disc braking system, ushers in a new era of 12-speed electrical performance. Furthermore, the Shimano E-Tube software allows you to completely modify your drivetrain, adjusting the setup to your exact specifications.
Invisible cable routing
The most aerodynamic bike's brake and shift cables are run through the frame for the smoothest, most aerodynamic performance possible.
Carbon care wheels loyalty programme
Our Bontrager carbon wheels loyalty programme ensures that if your wheels are damaged within two years of buying them, you can replace or repair them for free.
T47 Bottom Bracket
A threaded T47 bottom bracket is a key feature of this bike, offering reliable performance and straightforward maintenance, plus added stiffness for superior power transfer and pedaling efficiency.
500 Series OCLV
The 500 Series OCLV provides a remarkable balance of light weight, power, and rigidity, making it suitable for Trek's innovative frame technologies.
Blender Compatible Stem
With the support of Bontrager's blender stem technology, you can attach your equipment perfectly and easily to the handlebar.
H1.5 Fit
The H1.5 geometry, created in partnership with the Trek-Segafredo professional cycling teams, puts the rider in the best aero race position. It's the ideal balance, customized to the requirements of our top racers.
Warranted for life
When you choose Bontrager wheels, you are choosing a lifetime of trust and investment that will increase the handling and performance of your bicycle. All Bontrager wheels are covered by a lifetime warranty.
*Please note – spec applies to all sizes unless listed separately
- Frame
- 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, 142x12 mm thru axle
- Fork
- Weight
- 56 – 8.40 kg/18.52 lb
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Battery
- Shimano BT-DN300
- Charger
- Charging cable included
- Shifter
- Shimano 105 R7170 Di2, 12-speed
- Front derailleur
- Shimano 105 R7150 Di2, braze-on, down swing
- Rear derailleur
- Shimano 105 R7150 Di2, 36T max cog
- *Crank
- Size: 47
Shimano 105 R7100, 50/34, 165 mm lengthSize: 50, 52
Shimano 105 R7100, 50/34, 170 mm lengthSize: 54, 56
Shimano 105 R7100, 50/34, 172.5 mm lengthSize: 58, 60, 62
Shimano 105 R7100, 50/34, 175 mm length - Bottom bracket
- Cassette
- Shimano 105 7101, 11-34, 12-speed
- Chain
- Shimano SLX M7100, 12-speed
- Max. chainring size
- 1x: 50T, 2x: 54/40
- Wheel front
- Wheel rear
- Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle
- Skewer front
- Skewer rear
- Tyre
- Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
- Max tyre size
- 32 mm (as measured, see manual for details)
- *Saddle
- Size: 47, 50, 52
Bontrager Aeolus Comp, steel rails, 155 mm width - *Seatpost
- Size: 47, 50, 52, 54
Madone aero carbon seat post, 0 mm offset, short lengthSize: 56, 58, 60, 62
Madone aero carbon seat post, 0 mm offset, long length - *Handlebar
- Handlebar tape
- Bontrager Supertack Perf tape
- *Stem
- Brake
- Shimano 105 hydraulic disc, flat mount
- Brake rotor
- Shimano RT70, CentreLock, 160 mm
- Rotor size
- Max brake rotor sizes: 160 mm front and rear
Size
47
50
52
54
56
58
60
62
Rider Height
152 - 158 cm
5'0" - 5'2"
158 - 163 cm
5'2" - 5'4"
163 - 168 cm
5'4" - 5'6"
168 - 174 cm
5'6" - 5'9"
174 - 180 cm
5'9" - 5'11"
180 - 185 cm
5'11" - 6'1"
185 - 190 cm
6'1" - 6'3"
190 - 195 cm
6'3" - 6'5"
Inseam
71 - 75 cm
28" - 30"
74 - 77 cm
29" - 30"
76 - 79 cm
30" - 31"
78 - 82 cm
31" - 32"
81 - 85 cm
32" - 33"
84 - 87 cm
33" - 34"
86 - 90 cm
34" - 35"
89 - 92 cm
35" - 36"
Geometry
All measurements provided in cm unless otherwise stated.
| Frame size number | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Saddle rail height min (w/short mast) | Saddle rail height max (w/short mast) | Saddle rail height min (w/tall mast) | Saddle rail height max (w/tall mast) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47cm | 700c | 42.4 | 74.6° | 10.0 | 72.1° | 51.2 | 7.2 | 41.0 | 4.5 | 6.8 | 97.2 | 70.7 | 37.3 | 50.7 | 55.0 | 62.0 | 59.1 | 65.5 |
| 50cm | 700c | 45.3 | 74.6° | 11.1 | 72.1° | 52.1 | 7.2 | 41.0 | 4.5 | 6.2 | 97.4 | 72.9 | 37.8 | 52.1 | 58.0 | 65.0 | 62.1 | 68.5 |
| 52cm | 700c | 48.3 | 74.2° | 12.1 | 72.8° | 53.4 | 7.2 | 41.0 | 4.5 | 5.8 | 97.7 | 75.1 | 38.3 | 53.3 | 61.0 | 68.0 | 65.1 | 71.5 |
| 54cm | 700c | 49.6 | 73.7° | 13.1 | 73.0° | 54.3 | 7.0 | 41.0 | 4.5 | 5.6 | 98.1 | 76.9 | 38.6 | 54.1 | 63.5 | 70.5 | 67.6 | 74.0 |
| 56cm | 700c | 52.5 | 73.3° | 15.1 | 73.5° | 55.9 | 7.0 | 41.0 | 4.0 | 5.8 | 98.3 | 79.3 | 39.1 | 56.3 | 66.5 | 73.0 | 70.6 | 76.5 |
| 58cm | 700c | 55.3 | 73.0° | 17.1 | 73.8° | 57.4 | 6.8 | 41.1 | 4.0 | 5.7 | 99.2 | 81.7 | 39.6 | 58.1 | 68.5 | 75.5 | 72.6 | 79.0 |
| 60cm | 700c | 57.3 | 72.8° | 19.1 | 73.9° | 58.6 | 6.8 | 41.1 | 4.0 | 5.6 | 100.1 | 83.8 | 39.9 | 60.1 | 70.5 | 77.5 | 74.5 | 81.0 |
| 62cm | 700c | 59.3 | 72.5° | 21.1 | 73.9° | 59.8 | 6.8 | 41.2 | 4.0 | 5.6 | 101.0 | 85.3 | 40.3 | 62.0 | 73.0 | 80.5 | 77.5 | 84.0 |
