It's right for you

You're looking for a road race bike that is affordable and lightweight without sacrificing performance. You don't want to sacrifice climbing effectiveness or aerodynamics for any kind of riding, be it racing, club rides, or solo rides. This is your dream bike.

The tech you get

The OCLV 500 Carbon frame on this bike is incredibly light and features aero tubing and IsoFlow comfort technology. It offers dependable mechanical shifting without the complexities of electronic systems thanks to its 2x12 Shimano 105 groupset. Hydraulic disc brakes provide strong and reliable stopping power, and tubeless wheels improve resistance to punctures and decrease rolling resistance.

The final word

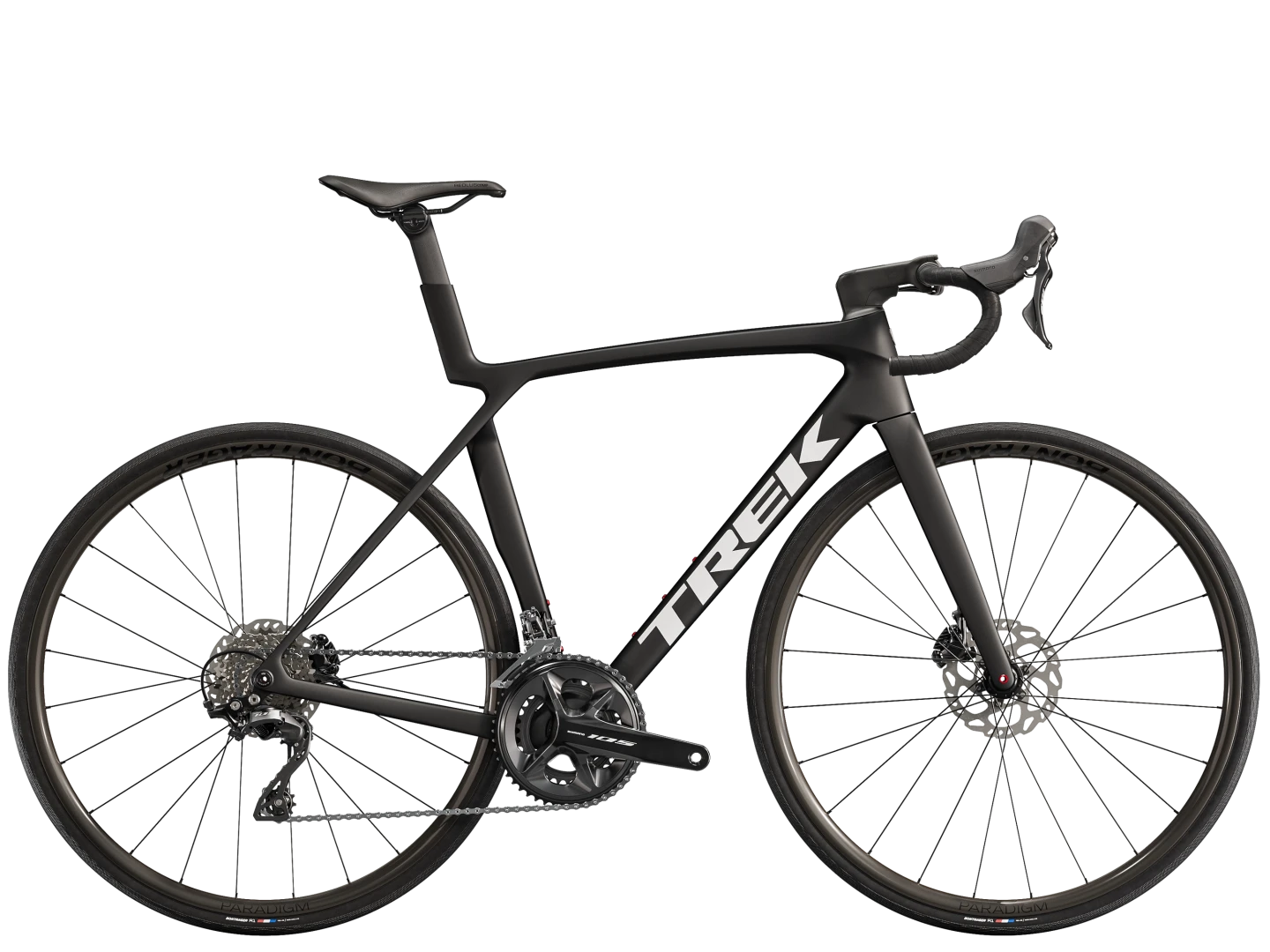

For those looking for superbike performance at a more affordable price, the Madone SL 5 Gen 8 is perfect. With a more affordable design, it has the same innovative frame technology as its SLR sibling, such as aero tube shape and lightweight IsoFlow comfort innovation. This lets you cut costs on bike excursions and race entrance fees without sacrificing performance.



Why you'll love it

For those looking for superbike performance at a more affordable price, the Madone SL 5 Gen 8 is perfect. With a more affordable design, it has the same innovative frame technology as its SLR sibling, such as aero tube shape and lightweight IsoFlow comfort innovation. This lets you cut costs on bike excursions and race entrance fees without sacrificing performance.

The Walkthrough

Frameset

Frame 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Wheels

Hub front Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front Bontrager Switch chamfered thru axle, removable lever
Hub rear Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear Bontrager Switch chamfered thru axle, removable lever
Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes 14g stainless steel, black
Tire Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Max tire size 32mm (as measured, see manual for details)

Drivetrain

*Shifter Shimano 105 R7120, 12 speed
Size: S, M, L, XL, XXL
Shimano Altus M315, 8-speed
Front derailleur Shimano 105 R7100, braze-on, down swing
Rear derailleur Shimano 105 R7100, 36T max cog
Crank Size: XS, S
Shimano 105 R7100, 50/34, 165mm length
Size: M
Shimano 105 R7100, 50/34, 170mm length
Size: ML, L
Shimano 105 R7100, 50/34, 172.5mm length
Size: XL
Shimano 105 R7100, 50/34, 175mm length
Bottom bracket Praxis, T47 threaded, internal bearing
Cassette Shimano 105 7101, 11-34, 12 speed
Chain Shimano SLX M7100, 12 speed
Max chainring size 1x: 54T, 2x: 56/43

Components

Saddle Size: XS, S
Bontrager Aeolus Comp, steel rails, 155mm width
Size: M, ML, L, XL
Bontrager Aeolus Comp, steel rails, 145mm width
Seatpost Size: XS, S, M
Madone aero carbon seatpost, 0mm offset, short length
Size: ML, L, XL
Madone aero carbon seatpost, 0mm offset, long length
*Handlebar Size: XS
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
Size: S, M
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
Size: ML, L
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
Size: XL
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Handlebar tape Trek EcoTack, black
*Stem Size: XS
Trek RCS Pro, -7 degree, 80mm length
Size: S, M
Trek RCS Pro, -7 degree, 90mm length
Size: ML, L
Trek RCS Pro, -7 degree, 100mm length
Size: XL
Trek RCS Pro, -7 degree, 110mm length
Brake rotor Shimano RT70, centerlock, 160mm
Rotor size Max brake rotor sizes: 180mm front, 160mm rear

Weight

Weight ML - 8.70 kg / 19.19 lbs (with tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

size-table
SizeRider HeightInseam
XS (47cm)

143 - 158 cm

4'8" - 5'2"

67 - 74 cm

26" - 29"

S (50cm)

158 - 162 cm

5'2" - 5'4"

74 - 76 cm

29" - 30"

M (52-54cm)

162 - 173 cm

5'4" - 5'8"

76 - 81 cm

30" - 32"

ML (56cm)

173 - 179 cm

5'8" - 5'10"

81 - 84 cm

32" - 33"

L (58cm)

179 - 188 cm

5'10" - 6'2"

84 - 88 cm

33" - 35"

XL (60-62cm)

188 - 213 cm

6'2" - 7'0"

88 - 100 cm

35" - 39"

All measurements provided in cm unless otherwise noted.

Sizing table
Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack Saddle rail height min (w/short mast) Saddle rail height max (w/short mast) Saddle rail height min (w/tall mast) Saddle rail height max (w/tall mast)
XS 700c 40.4 73.8° 10.0 71.6° 51.7 7.2 41.0 5.0 6.1 97.1 70.9 37.0 50.7 54.9 61.2 59.2 65.4
S 700c 44.0 73.8° 12.1 72.2° 53.2 7.2 41.0 4.5 6.2 97.6 74.0 37.8 53.0 58.5 64.8 62.8 69.0
M 700c 47.6 73.6° 13.6 72.9° 54.5 7.0 41.0 4.5 5.8 98.1 76.8 38.4 54.6 62.1 68.4 66.4 72.6
ML 700c 51.2 73.4° 15.0 73.5° 55.7 7.0 41.0 4.0 5.9 98.0 79.4 38.9 56.2 65.7 72.0 70.0 76.2
L 700c 54.8 73.4° 17.2 73.8° 56.8 6.8 41.1 4.0 5.7 99.0 82.5 39.4 58.2 69.3 75.6 73.6 79.8
XL 700c 60.9 73.4° 20.1 73.9° 58.4 6.8 41.2 4.0 5.7 100.7 86.9 40.2 61.0 75.4 81.7 79.7 85.9
