FX Sport 5
- Regular price
- 5,553.93 SR
- Regular price
-
8,544.50 SR - Sale price
- 5,553.93 SR
- Unit price
- per
Save 2,990.57 SR
Split your payments into 4 with tabby. No interest, no fees!
The FX Sport 5 is a carbon fibre fitness bike for riders who want to ride a lightweight road bike with the comfort and control of a flat handlebar. This bike comes with an OCLV Carbon 400 Series carbon frame with ISO Speed to facilitate off-road riding. The bike also...
Subtotal:
5,553.93 SR
+
+
Couldn't load pickup availability
Compare Color
Overview
Features
Specs
Geometry
Sizing
It's so perfect
This bike is perfect for cyclists ready to go long distances and who prefer to ride with a flat handle like most road bikes. This bike is ideal for those looking for comfort, high performance, and speed at the same time.
The technology you get
Trek FX Sport 5 has a lightweight OCLV 400 Series carbon chassis, an ISO Speed carbon fork, and a Shimano Tiagra 10x2 drivetrain. This bike comes with a wide range of gears, hydraulic disc brakes, concealed rack mounts, a lightweight Bontrager wheelset with a transverse axle number to improve the bike's response and control, and a grip that absorbs vibrations as you ride.
Generally
This bike comes with high-quality components that help you go long distances in a fast and lightweight OCLV carbon frame with ISO Speed to absorb the bumps and vibrations of the road over long distances.
Why you will love it
This advanced bike, made of carbon, enables you to ride in comfort and control with a professional flat handlebar. FX Sport 5 enables you to take quick rides on the group road. With the DuoTrap S, you can pair your smartphone with this bike and send your trip data to your favourite fitness app. You can add more fenders, lights, and accessories to this bike.
The Walkthrough
Create it however you want
Make your bike unique by adding fenders, racks, bottle cages, and other accessories.

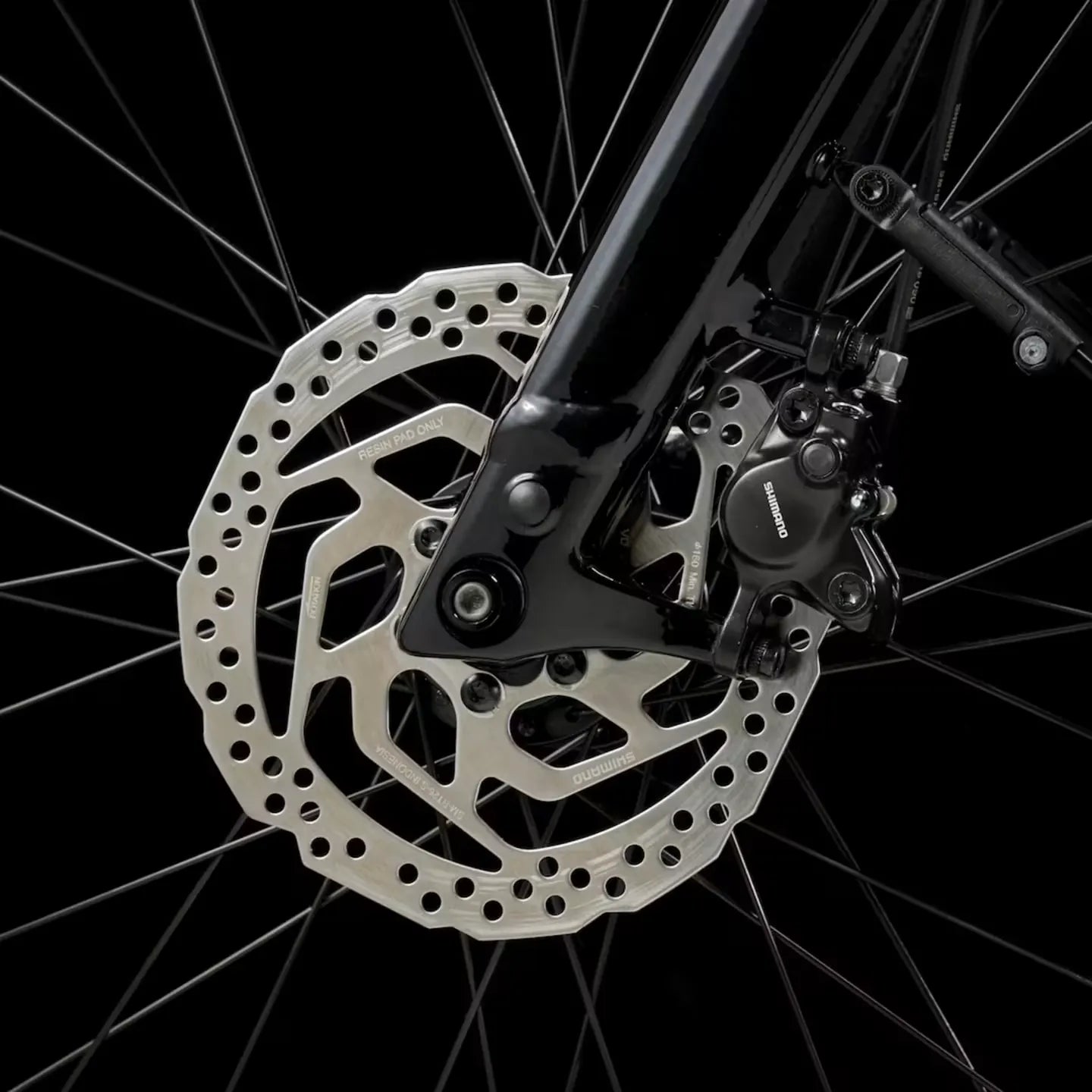

Hydraulic disc brake
This bike has hydraulic disc brakes that give you massive stopping power on all kinds of paved roads, in mud, and in all weather conditions.
ISO Zone Handlebar and grips
This feature absorbs bumps and road vibrations and enables you to go biking with the utmost comfort and stability.
ISO speed Decoupler
This feature allows the bike seat tube to rotate independently from the top tube to the seat post, increasing vertical compliance without compromising pedaling efficiency.
Duo Trap S. Technology
You can buy this technique separately from the bike. You can take advantage of it by attaching a Bluetooth sensor to the bike frame. And this sensor calculates the distance you take while you are on the bike. This technology works with many wireless drivers, such as: ANT Bontrager Power Tap SRM Garmin
Internal cable routing
The Trek FX Sport 5's cables and brakes are routed towards its frame to keep the bike clean and looking better.
Puncture Resistant Tires
Durable Bontrager tyres help you go at a steady speed without slowing down.
Complete tubeless system
Before installing a tubeless setup, make sure your wheels and tires are ready to remove the rim strips and tires, Bontrager TLR rim strips enable a firmer bead lock with the tire and a more straightforward installation process overall. All you will need: • Tubeless Ready (TLR) tyres • Tubeless Ready (TLR) wheel set • TLR rim strips • TLR valves
Frameset
| Frame | 400 series OCLV carbon, IsoSpeed, internal routing, 3s chain keeper, DuoTrap S-compatible, mudguard mounts, flat-mount disc, 142x12 mm thru axle |
|---|---|
| *Fork | Size: XS, S, M, L, XL FX Carbon, threadless alloy steerer, hidden mudguard mounts, flat-mount disc, 405 mm axle-to-crown, 100x12 mm thru axle |
| Size: XS, S, M, L, XL FX Carbon, flat mount disc, hidden fender mounts, 405mm axle-to-crown, 100x12mm thru axle |
Wheels
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Affinity Disc, Tubeless Ready, 28-hole, Presta valve |
| Spokes | 14 g stainless steel |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c |
| Max tyre size | 35c without fenders, 32c with fenders |
Drivetrain
| Shifter | Shimano Tiagra 4700, 10-speed |
|---|---|
| Front derailleur | Shimano Tiagra 4700, braze-on |
| Rear derailleur | Shimano Tiagra 4700, long cage, 34T max cog |
| *Crank | Size: XS, S Shimano Tiagra 4700, 50/34, 170 mm length |
| Size: M, L Shimano Tiagra 4700, 50/34, 172.5 mm length | |
| Size: XL Shimano Tiagra 4700, 50/34, 175 mm length | |
| Bottom bracket | Shimano BB71, 86.5 mm, PressFit |
| Cassette | Shimano Tiagra HG500, 11-34, 10 speed |
| Chain | KMC X10 |
| Pedal | VP-990AT, resin body, alloy cage, toe clip |
Components
| Saddle | Bontrager Montrose Comp, steel rails, 138 mm width |
|---|---|
| Seatpost | Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
| *Handlebar | Size: XS, S Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width |
| Size: M, L, XL Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width | |
| Grips | Bontrager Satellite IsoZone Plus, lock-on, ergonomic |
| *Stem | Size: XS Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Size: S, M Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length | |
| Size: L, XL Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length | |
| Head set | 1-1/8" threadless, sealed cartridge bearings |
| *Brake | Size: XS, S, M, L, XL Shimano hydraulic disc, MT201 lever, UR300 calliper |
| Size: XS, S, M, L, XL Shimano MT201 hydraulic disc, flat-mount, 160 mm rotor | |
| Brake rotor | Shimano RT10, CenterLock, 160 mm |
| Brake pad | Brake Pad Shimano Resin Disc Pad B01S |
Weight
| Weight | 10.35 kg / 22.82 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
| Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 700c | 35.6 | 75.0° | 11.0 | 70.0° | 53.1 | 28.5 | 6.5 | 43.8 | 5.0 | 7.4 | 104.5 | 68.4 | 38.8 | 53.3 |
Size
XS
S
M
L
XL
Rider Height
147 - 155 cm
4'10" - 5'1"
155 - 165 cm
5'1" - 5'5"
165 - 175 cm
5'5" - 5'9"
175 - 186 cm
5'9" - 6'1"
186 - 197 cm
6'1" - 6'6"
Inseam
69 - 73 cm
27" - 29"
72 - 78 cm
28" - 31"
77 - 83 cm
30" - 33"
82 - 88 cm
32" - 35"
87 - 93 cm
34" - 37"
