It's so perfect

This bike is perfect for outing enthusiasts and those looking for a high-performance bicycle built with a lightweight frame, a wide range of gears, and durable wheels for an enjoyable and valuable ride.

The technology you get

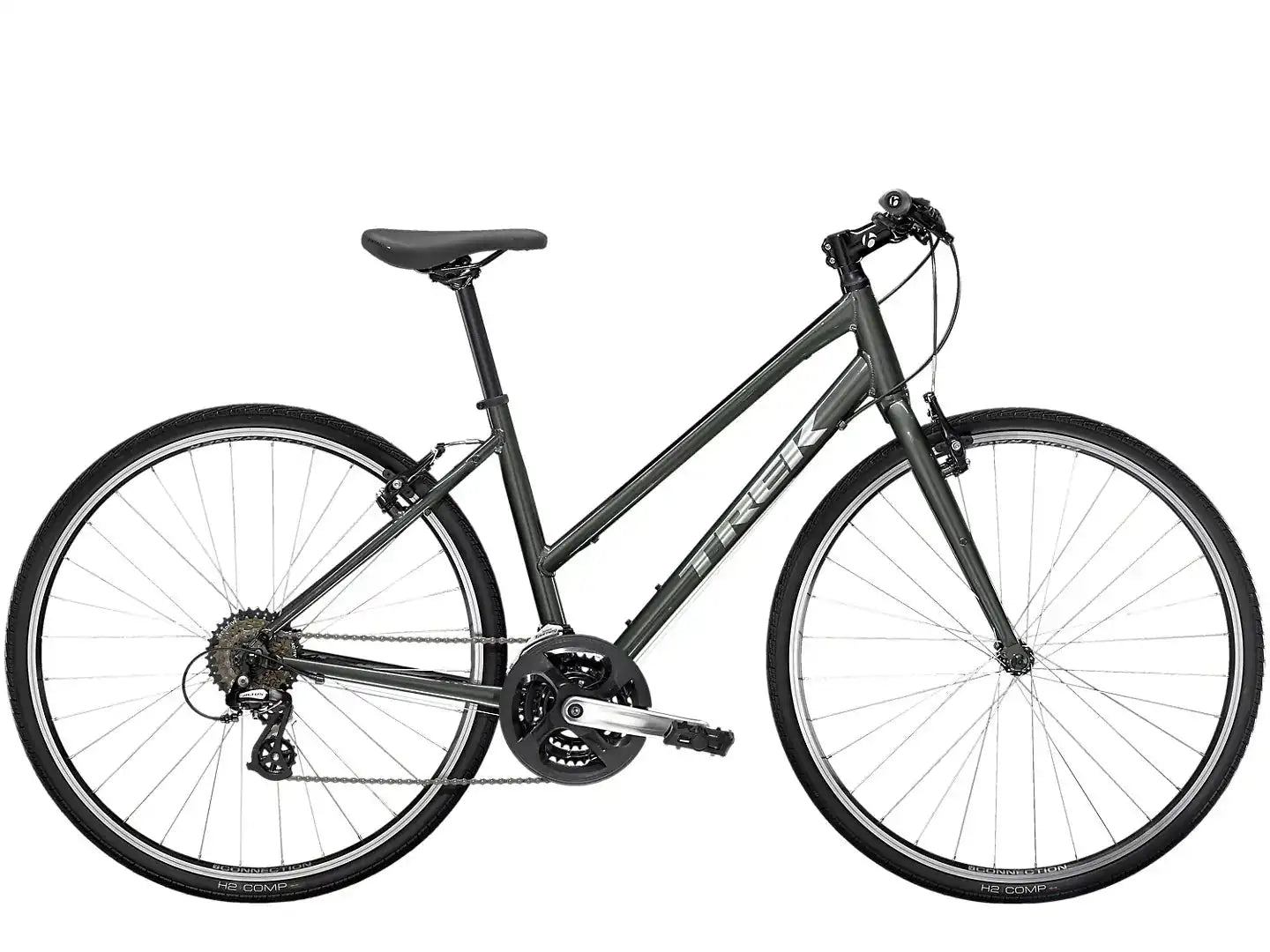

The FX 1 Stagger bike has a lightweight frame that is easy to disassemble and install. This bike has 21 speeds, so there is always a gear to suit your terrain. The bike also comes with durable double-walled wheels, wide, stable tires, and mounts that let you add more fenders, racks, lights, kickstands, fitness trackers, and more.

Generally

This bike is a hybrid bike. And it provides you with plenty of power for a more enjoyable ride. It is a versatile bike built with a lightweight aluminum frame, high-quality parts, and durable wheels designed on double-walled rims. Therefore, this bike enables you to take a casual bike ride and even do various workouts and commutes around the city.



Why you would prefer it

This bike is a hybrid bike. And it provides you with plenty of power for a more enjoyable ride. It is a versatile bike built with a lightweight aluminum frame, high-quality parts, and durable wheels designed on double-walled rims. Therefore, this bike enables you to take a casual bike ride and even do various workouts and commutes around the city.

The Walkthrough

Create it however you want

Create it however you want

Make your bike unique by adding fenders, racks, bottle cages, and other accessories.


Frameset

Frame Alpha Gold Aluminium, stagger top tube, rack and mudguard mounts, DuoTrap S-compatible, cantilever-brake mount, 135x5 mm QR
Fork FX Steel, threadless steel steerer, rack mounts, cantilever-brake mount, 405 mm axle-to-crown, 5x100 mm QR

Wheels

Hub front Formula FM21 alloy, 100x5 mm QR
Skewer front Formula QR22
Hub rear Formula FM31 alloy, 135x5 mm QR
Skewer rear 152x5 mm QR
Rim Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
Tyre Bontrager H2 Comp, wire bead, 30 tpi, 700x35c
Max tyre size 38c without fenders, 35c with fenders

Drivetrain

Shifter Shimano Altus EF500, 7 speed
Front derailleur Shimano Tourney TY510, 34.9 mm clamp, top swing, dual pull
Rear derailleur Shimano Altus M310
Crank Forged alloy, 48/38/28, chainguard, 170 mm length
Bottom bracket Sealed cartridge, 68 mm
Cassette 14-34, 7-speed freewheel
Chain KMC Z7
Pedal Wellgo nylon platform

Components

Saddle Bontrager Sport Women's
Seatpost Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Handlebar Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
Grips Bontrager Satellite
*Stem Size: S, M
Bontrager alloy, 25.4 mm clamp, 10-degree, 90mm length
Size: L
Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
Head set 1 1/8" steel threadless
Brake Tektro alloy linear-pull

Weight

Weight M - 12.48 kg / 27.52 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

Size Rider Height Inseam
S

155 - 165 cm

5'1" - 5'5"

72 - 78 cm

28" - 31"

M

165 - 175 cm

5'5" - 5'9"

77 - 83 cm

30" - 33"

L

175 - 186 cm

5'9" - 6'1"

82 - 88 cm

32" - 35"

Sizing table
Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
S 700c 38.1 74.5° 13.0 70.5° 53.7 29.6 6.5 45.0 5.0 7.5 105.5 71.1 38.4 55.4
M 700c 44.5 74.0° 15.0 70.5° 55.3 29.6 6.5 45.0 5.0 7.5 106.7 75.7 38.9 57.2
L 700c 50.8 73.5° 17.0 71.5° 56.8 29.6 6.5 45.0 5.0 6.8 106.7 78.8 39.1 59.5
