Fuel EX 9.9 XX AXS T-Type Gen 6
The Fuel EX 9.9 XX AXS is a trail bike engineered for those who seek top-tier performance and value premium quality. It features an elite carbon frame paired with high-end components, including lightweight carbon wheels, a 150 mm Kashima-coated FOX Factory fork, and the fully wireless SRAM XX drivetrain. This bike is built to dominate the trails, effortlessly powering through rugged terrain, carving corners, and climbing back to the summit for the next adventure.
- 47,437.50
- 47,437.50
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
+
+
Compare color
Overview
Features
Specs
Sizing
Geometry
It’s so perfect for you
You appreciate the best in mountain biking and refuse to compromise. You’re after a bike that’s equipped to conquer any terrain with cutting-edge technology, from its rigid yet lightweight carbon frame and precise tracking carbon wheels, to the FOX Factory fork and SRAM’s wireless, top-of-the-line XX drivetrain.
The technology you get
An OCLV Mountain Carbon frame with lightweight carbon wheels and SRAM's premium XX AXS wireless electronic transmission. It features smooth suspension with a 150 mm FOX Factory 36 fork, GRIP2 damper, 140 mm of FOX Factory Float X rear travel, and a RockShox Reverb AXS dropper post. The adjustable geometry lets you tweak the ride to suit yohttps://media.trekbikes.com/image/upload/w_1440,h_810,c_pad,f_auto,fl_progressive:semi,q_auto/MTB_OverviewId_7_16_24ur preferences, while integrated frame storage keeps your gear handy without cluttering your setup.
Generally
The Fuel EX 9.9 is a trail machine for riders with a taste for the best. It pairs a versatile carbon frame with top-end components, including carbon wheels and the ultra-lightweight SRAM XX AXS wireless shifting. The adjustable geometry ensures your ride feels perfect, no matter the trail.
Why you’ll love it!
The Fuel EX 9.9 is a trail machine for riders with a taste for the best. It pairs a versatile carbon frame with top-end components, including carbon wheels and the ultra-lightweight SRAM XX AXS wireless shifting. The adjustable geometry ensures your ride feels perfect, no matter the trail.

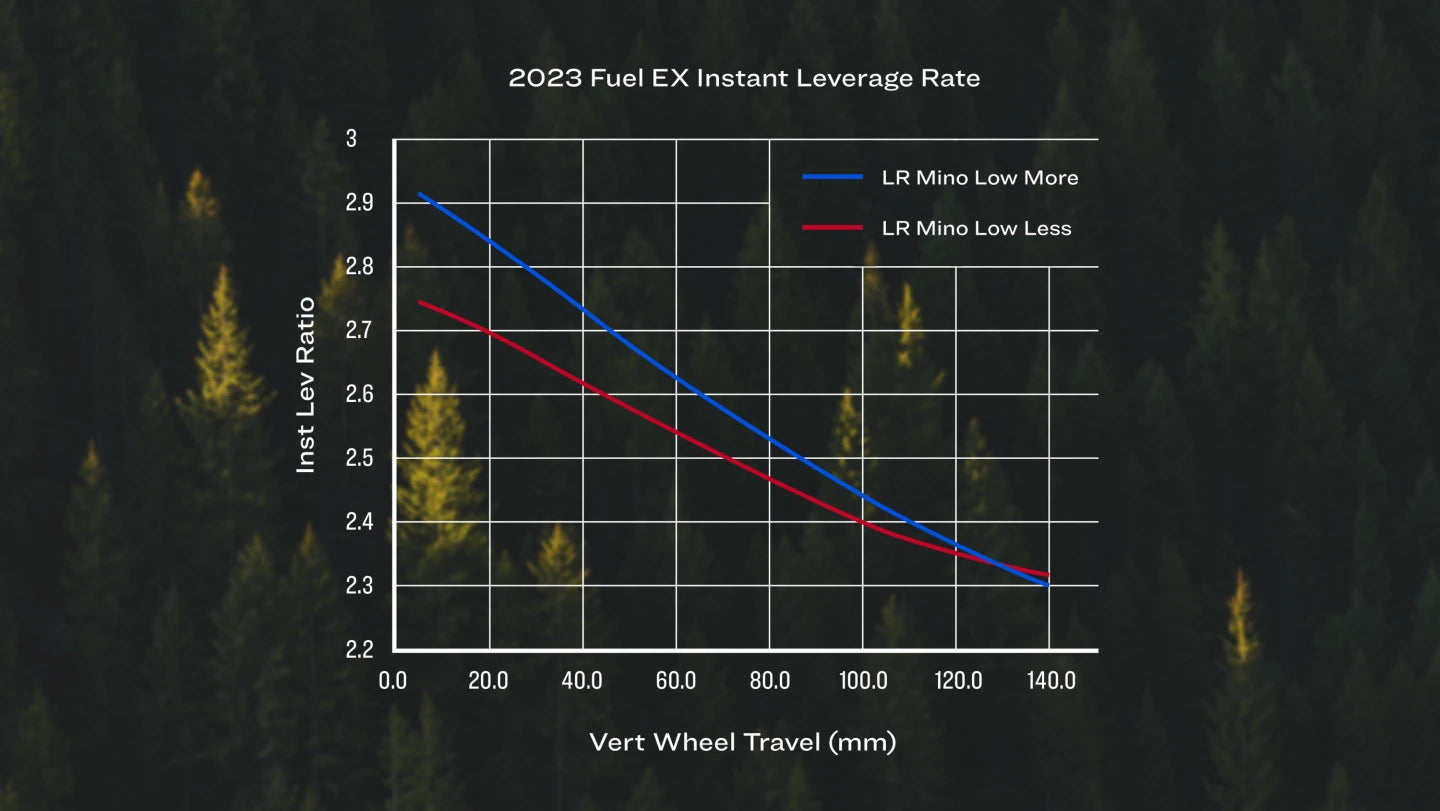

Adjust the sus for full send
Easily adjust the leverage rate with a quick flip of a chip. Use the "Less Progressive" setting for a smoother, more cushioned ride ideal for rough terrain and sharp bumps. Switch to the "More Progressive" mode when tackling larger obstacles to prevent bottoming out, or if you're opting for a coil shock.

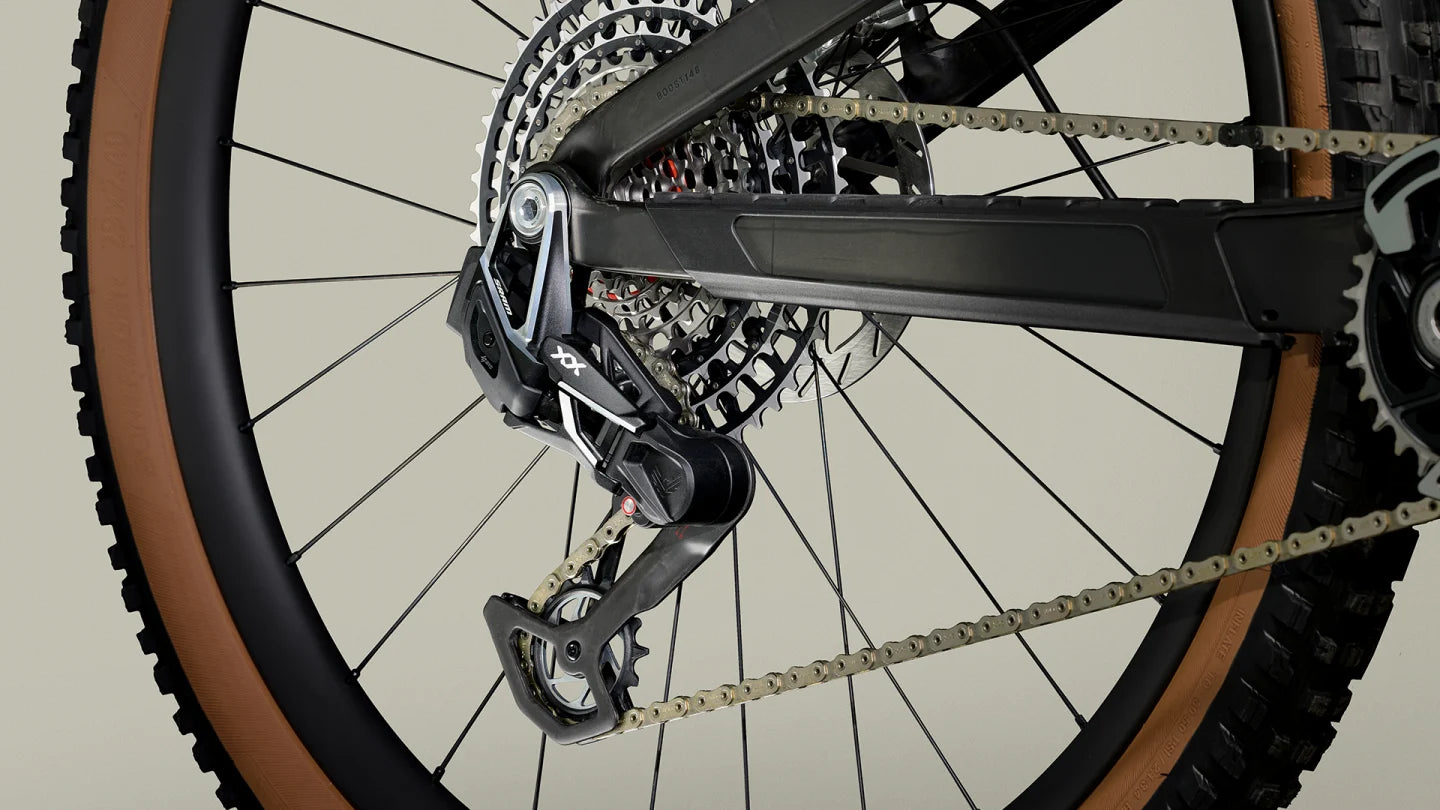

Transition to transmission
The SRAM Eagle T-Type transmission attaches directly to the frame, eliminating the need for an old-school derailleur hanger. This creates a more durable, streamlined system that not only looks sleeker but also delivers greater precision under load and simplifies the setup process.
Size-specific stays
Chainstays designed to match each frame size ensure agile handling for smaller riders while enhancing front wheel traction during climbs for taller riders, delivering a well-balanced ride across all sizes.
Need to Make an Adjustment?
You can easily modify your head tube angle with angle-adjust cups, allowing you to make it one degree slacker or steeper to suit your riding style.
SRAM Eagle AXS drivetrain
Experience precise and rapid gear shifts with Eagle AXS wireless electronic drivetrains, even under heavy loads. These drivetrains are both water and dust-resistant, and the AXS app allows you to customize your settings effortlessly.
Complete Tubeless System
Tubeless Ready rims and tires allow you to go tube-free for improved traction, reduced flats, and lighter weight. The setup comes complete with TLR rim strips, valves, and sealant, so you’re ready to hit the trails right away.
Mino Link adjustable geometry
Adjust your head tube angle by 0.5° and bottom bracket height by up to 10mm with a quick turn of a nut. Flip the link to switch between slack or even slacker geometry while maintaining optimal suspension performance. This feature is exclusive to Trek.
Carbon Wheels loyalty programme
Our Bontrager carbon wheels loyalty programme ensures that if your wheels are damaged within two years of buying them, you can replace or repair them for free.
Rapid Drive 108 rear hub
offers 108 engagement points, providing near-instant acceleration with minimal lag when you pedal. This allows for smooth, immediate power delivery, perfect for accelerating out of corners and powering through rough terrain. The additional pedal engagement enhances control, making a significant difference during challenging climbs.
*Please note – spec applies to all sizes unless listed separately
- Frame
- OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
- *Fork
- Size: XS , S
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 180 mm direct mount brake tab, 140 mm travelSize: M , ML , L , XL
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 180 mm direct mount brake tab, 150mm travel - Shock
- *Wheel front
- Size: XS , S
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5"Size: M , ML , L , XL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" - *Wheel rear
- Size: XS , S
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"Size: M , ML , L , XL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29" - Skewer rear
- *Tyre
- Size: XS , S
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 27.5 x 2.50"Size: XS , S
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50"Size: M , ML , L , XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50"Size: M , ML , L , XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" - Tyre part
- Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
- Max tyre size
- Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer
- Shifter
- SRAM AXS pod
- Rear derailleur
- SRAM XX Eagle AXS, T-Type
- Crank
- SRAM XX Eagle, DUB, 30T, T-Type, 55 mm chainline, 170 mm length
- Bottom bracket
- SRAM DUB MTB Wide, 73 m, BSA threaded
- Cassette
- SRAM Eagle XS-1297, T-Type, 10-52, 12-speed
- Chain
- SRAM XX Eagle, T-Type, 12-speed
- Max. chainring size
- 1x: 36T, min 32T
- Saddle
- *Seatpost
- Size: XS , S
RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm lengthSize: M , ML
RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 440 mm lengthSize: L , XL
RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length - Handlebar
- Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
- Grips
- Bontrager XR Trail Elite, nylon lock-on
- Stem
- Head set
- Brake
- SRAM Maven Ultimate 4-piston hydraulic disc
- *Brake rotor
- Size: XS , S , M , ML , L , XL
SRAM HS2, 6-bolt, 180mmSize: M , ML , L , XL
SRAM HS2, 6-bolt, 200mm - Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 14.48 kg / 31.93 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Size
XS
S
M
ML
L
XL
2XL
Rider Height
145 - 155 cm
4'9" - 5'1"
155 - 165 cm
5'1" - 5'5"
165 - 176 cm
5'5" - 5'9"
173 - 180 cm
5'8" - 5'11"
177 - 188 cm
5'10" - 6'2"
188 - 195 cm
6'2" - 6'5"
195 - 203 cm
6'5" - 6'8"
Inseam
69 - 73 cm
27" - 29"
74 - 78 cm
29" - 31"
79 - 83 cm
31" - 33"
81 - 86 cm
32" - 34"
84 - 89 cm
33" - 35"
89 - 91 cm
35" - 36"
91 - 97 cm
36" - 38"
Geometry
All measurements provided in cm unless otherwise stated.
| Frame size letter | Geometry position | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | High | 27.5" | 36.0 | 71.2° | 78.9° | 9.5 | 64.9° | 51.6 | 33.7 | 2.1 | 43.4 | 4.4 | 11.9 | 114.4 | 71.9 | 40.4 | 57.2 |
| XS | Low | 27.5" | 36.0 | 70.8° | 78.6° | 9.5 | 64.5° | 51.6 | 33.2 | 2.5 | 43.5 | 4.4 | 12.2 | 114.5 | 71.6 | 40.0 | 57.4 |
| S | High | 27.5" | 38.0 | 71.1° | 78.5° | 9.5 | 64.8° | 55.0 | 33.7 | 2.1 | 43.4 | 4.4 | 11.9 | 117.4 | 72.8 | 43.3 | 57.2 |
| S | Low | 27.5" | 38.0 | 70.8° | 78.2° | 9.5 | 64.5° | 55.1 | 33.2 | 2.5 | 43.5 | 4.4 | 12.2 | 117.5 | 72.4 | 43.0 | 57.4 |
| M | High | 29" | 41.0 | 71.4° | 78.8° | 10.0 | 65.1° | 58.3 | 34.3 | 3.1 | 43.3 | 4.4 | 12.5 | 121.2 | 74.4 | 45.6 | 61.2 |
| M | Low | 29" | 41.0 | 70.8° | 78.2° | 10.0 | 64.5° | 58.4 | 33.5 | 3.8 | 43.5 | 4.4 | 12.9 | 121.3 | 73.7 | 45.0 | 61.7 |
| ML | High | 29" | 42.0 | 71.4° | 78.0° | 10.0 | 65.1° | 60.6 | 34.3 | 3.1 | 43.8 | 4.4 | 12.5 | 123.2 | 75.1 | 47.6 | 61.2 |
| ML | Low | 29" | 42.0 | 70.8° | 77.5° | 10.0 | 64.5° | 60.7 | 33.5 | 3.8 | 44.0 | 4.4 | 12.9 | 123.3 | 74.5 | 47.0 | 61.7 |
| L | High | 29" | 43.5 | 71.4° | 77.7° | 10.5 | 65.1° | 62.6 | 34.3 | 3.1 | 43.8 | 4.4 | 12.5 | 124.9 | 75.4 | 49.1 | 61.7 |
| L | Low | 29" | 43.5 | 70.8° | 77.2° | 10.5 | 64.5° | 62.7 | 33.5 | 3.8 | 44.0 | 4.4 | 12.9 | 125.0 | 74.8 | 48.5 | 62.1 |
| XL | High | 29" | 47.0 | 71.3° | 77.1° | 12.0 | 65.0° | 66.0 | 34.3 | 3.0 | 44.3 | 4.4 | 12.5 | 128.6 | 76.7 | 52.1 | 63.0 |
| XL | Low | 29" | 47.0 | 70.8° | 76.6° | 12.0 | 64.5° | 66.2 | 33.5 | 3.8 | 44.5 | 4.4 | 12.9 | 128.7 | 76.0 | 51.5 | 63.5 |
