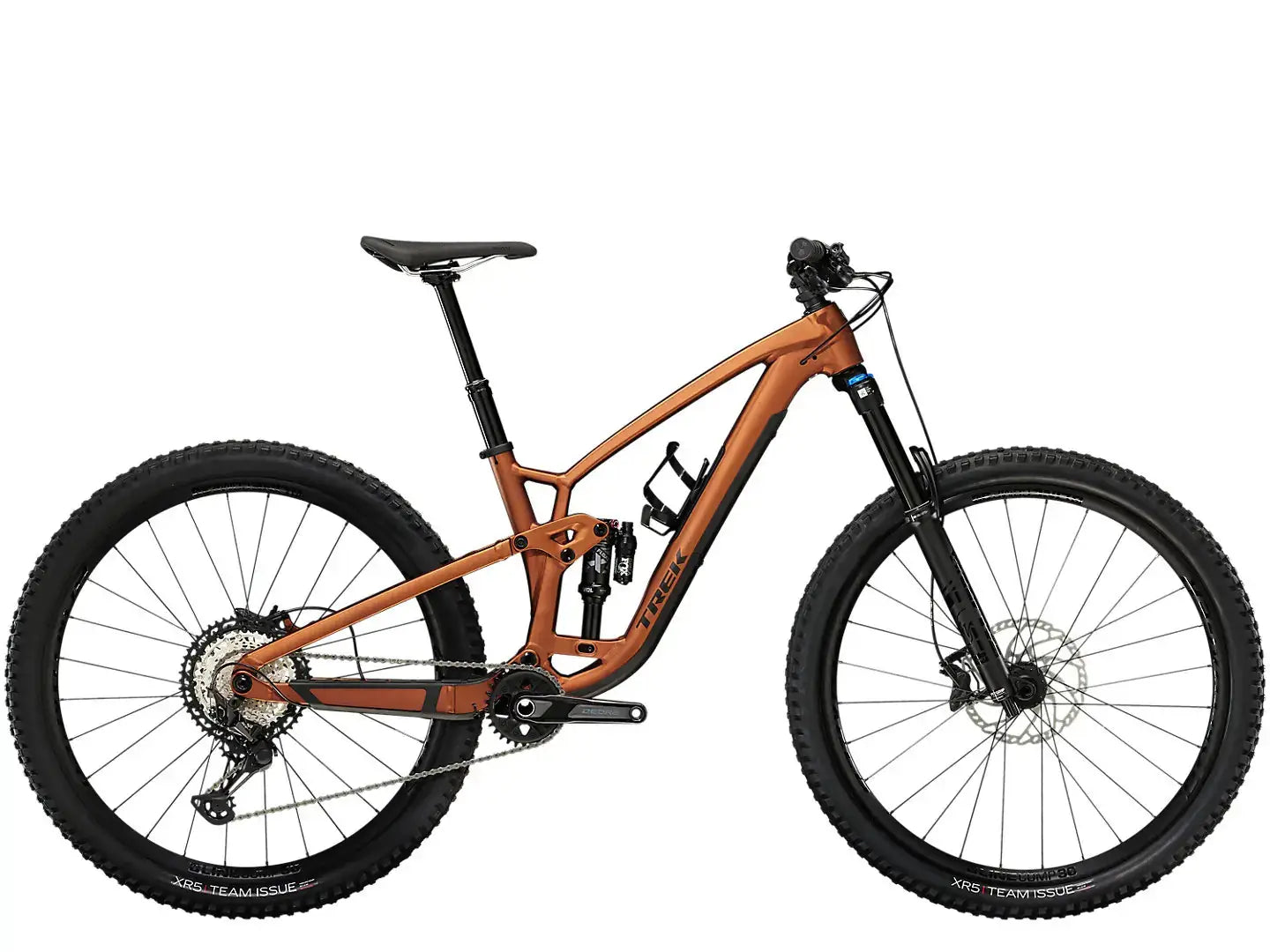

Fuel EX 8 Gen 6
- Regular price
- 16,951.00 SR
- Regular price
-
- Sale price
- 16,951.00 SR
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
The Trek Fuel EX 8 is one of the best trail mountain bikes, with an updated Shimano XT drivetrain for simple shifting, lightweight Alpha Platinum Aluminum, new in-frame storage, and customizable geometry that make it a professional, exceptional high-performance mtb bike. Make a reservation and get your mountain bike now!...
Subtotal:
16,951.00 SR
+
+
Couldn't load pickup availability
Compare Color
Overview
Features
Specs
Geometry
Sizing
It’s so perfect for you
If you're looking for an affordable full suspension mountain trail bike that will help you shift smoothly, this is the bicycle for you!
The technology you get
The Trek Fuel EX 8 is designed of Alpha Platinum Aluminum, a 150mm FOX Rhythm fork, a 12-speed Shimano XT drivetrain, wide tubeless tires, and new extendable geometric features that give you control over your set-up.
Generally
If you are a mountain biker who's against any road limitations and enjoys riding your bicycle without boundaries in the mountains, then this bike is able to deal with any conditions and any mountain roads, and it will remain your good buddy on the road.
Why you’ll love it!
This bike is created with cutting-edge advanced technologies to handle challenging mountain roads and survive all weather conditions. You will enjoy an updated 12-speed Shimano drivetrain, allowing you to ride at full speed without any boundaries. You have an option of six major geometrical setups with the adjustable-angle headset. Maintenance is greatly simplified by improved internal routing and hardware. We've widened the range of tire sizes to ensure that they match all riders and are using the appropriate wheels for each size.
The Walkthrough
Tube angle adjustment
This feature, sold separately, allows you to adjust the angle adjustment to angle the head tube at 64.5 degrees as sharply or gradually as you like.
Suitable for every cyclist
This bike is available in various sizes to satisfy riders of different heights. This bike's size lets you ride it at high speeds. Smaller bikes have shorter brakes and smaller handlebars to allow younger riders to drive with comfort and control, while taller riders benefit from improved front wheel traction on the road.
Shimano XT
The Shimano XT drivetrain will provide you with dependable shifting, excellent braking, and simple maintenance. The high-performance worker you can depend on is Shimano XT.
New frame
Riders that seek complete personalization can take advantage of the innovative frame design. A larger seat tube allows you to use a longer, beefier dropper post, and a wider range of shocks, such as coil shocks, may be used with it.
Suspension calculator
To get the maximum performance out of your mountain bike, proper suspension set-up is important. It just takes a few minutes to get your suspension tuned up.
Complete tubeless system
Before installing a tubeless setup, make sure your wheels and tires are ready to remove the rim strips and tires, Bontrager TLR rim strips enable a firmer bead lock with the tire and a more straightforward installation process overall. All you will need: Tubeless Ready (TLR) tires • Tubeless Ready (TLR) wheel set • TLR rim strips • TLR valves
Mino Link Adjustable Geometry
Because of the bike's excellent vertical angle and height of up to 10 millimeters, you can easily shift the hitch for more flexible bicycle geometry without affecting bump absorption.
threaded bottom bracket
In comparison to a press-fit bottom bracket, a threaded bottom bracket is more durable, performs better in adverse weather, and is simpler to repair.
On guard
The strong chainstay guard and two-piece, double-bolted down tube guard calm the ride while providing protection from rock impacts and shuttle damage.
ISCG Mounts
Globally standard chain guidance mounts allow for simple chain guide setup and adaptation.
Frameset
| Frame | Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
|---|---|
| *Fork | Size: XS , S Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel |
| Size: S , M , ML , L , XL , XXL Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel | |
| Shock | Fox Performance Float X, 2-position damper, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |
Wheels
| Wheel front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| *Wheel rear | Size: XS , S Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle |
| Size: S , M , ML , L , XL , XXL Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle | |
| Hub front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve |
| *Tyre | Size: XS , S Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50" |
| Size: S , M , ML , L , XL , XXL Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29 x 2.50" | |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
Drivetrain
| Shifter | Shimano XT M8100, 12-speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| Crank | Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length |
| Bottom bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano XT M8100, 10-51, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 34T round, 32T oval, min 28T |
Components
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
|---|---|
| *Seatpost | Size: XS , S TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm |
| Size: M , ML TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm | |
| Size: L , XL , XXL TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm | |
| *Handlebar | Size: XS , S Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width |
| Size: M , ML , L , XL , XXL Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width | |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| *Stem | Size: XS , S Bontrager Elite, 35 mm, 0-degree, 35 mm length |
| Size: M , ML , L , XL , XXL Bontrager Elite, 35 mm, 0-degree, 45 mm length | |
| Head set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| *Brake | Size: XS , S , M , ML , L , XL , XXL Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| Size: XS , S , M , ML , L , XL , XXL SRAM DB 8 4-piston hydraulic disc | |
| *Brake rotor | Size: XS , S , M , ML , L , XL , XXL Shimano RT66, 6-bolt, 180 mm |
| Size: XS , S , M , ML , L , XL , XXL Shimano RT66, 6-bolt, 203 mm | |
| Size: XS , S , M , ML , L , XL , XXL SRAM CentreLine, 6-bolt, round edge, 180 mm | |
| Size: XS , S , M , ML , L , XL , XXL SRAM CentreLine, 6-bolt, round edge, 200 mm |
Accessories
| Bag | Bontrager BITS Internal Frame Storage Bag |
|---|
Weight
| Weight | M – 15.65 kg/34.51 lb (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
| XS | S 27.5 | S 29 | M | ML | L | XL | XXL | ||
A | Wheel size | 27.5 | 27.5 | 29 | 29 | 29 | 29 | 29 | 29 |
B | Frame Reach | 402.6 | 432.5 | 427.8 | 452.7 | 472.7 | 487.7 | 517.7 | 547.7 |
C | Effective Top Tube | 515.8 | 550.1 | 553.4 | 583.6 | 606.9 | 626.3 | 661.2 | 695.9 |
D | Seat Tube | 360.0 | 380.0 | 380.0 | 410.0 | 420.0 | 435.0 | 470.0 | 500.0 |
E | Seat Tube Angle | 71.1 | 71.1 | 71.1 | 71.1 | 71.0 | 71.0 | 71.0 | 71.0 |
F | Effective Seat Tube Angle | 78.8 | 78.4 | 78.8 | 78.4 | 77.7 | 77.4 | 76.8 | 76.2 |
G | Frame Stack | 572.4 | 572.3 | 610.6 | 615.0 | 614.9 | 619.4 | 632.9 | 646.4 |
H | Head Tube Length | 95.0 | 95.0 | 95.0 | 100.0 | 100.0 | 105.0 | 120.0 | 135.0 |
I | Head angle | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
J | Fork Axle-to-Crown | 533.0 | 533.0 | 561.0 | 561.0 | 561.0 | 561.0 | 561.0 | 561.0 |
K | Bottom Bracket Height | 330.5 | 330.6 | 333.5 | 333.6 | 333.6 | 333.6 | 333.7 | 333.7 |
L | Bottom Bracket Drop | 27.0 | 26.9 | 40.0 | 39.9 | 39.9 | 39.9 | 39.8 | 39.8 |
M | Chainstay Length | 435.0 | 435.0 | 435.0 | 435.0 | 440.0 | 440.0 | 445.0 | 450.0 |
N | Wheelbase | 1152.8 | 1182.8 | 1194.4 | 1221.5 | 1241.5 | 1258.7 | 1295.2 | 1331.6 |
O | Standover | 714.6 | 721.6 | 734.6 | 734.6 | 739.6 | 745.7 | 764.7 | 771.8 |
P | Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
Q | Trail | 109.6 | 109.7 | 116.6 | 116.7 | 116.7 | 116.7 | 116.8 | 116.8 |
Size
XS
S
M
M/L
L
XL
2XL
Rider Height
145 - 155 cm
4'9" - 5'1"
155 - 165 cm
5'1" - 5'5"
165 - 176 cm
5'5" - 5'9"
173 - 180 cm
5'8" - 5'11"
177 - 188 cm
5'10" - 6'2"
188 - 195 cm
6'2" - 6'5"
195 - 203 cm
6'5" - 6'8"
Inseam
69 - 73 cm
27" - 29"
74 - 78 cm
29" - 31"
79 - 83 cm
31" - 33"
81 - 86 cm
32" - 34"
84 - 89 cm
33" - 35"
89 - 91 cm
35" - 36"
91 - 97 cm
36" - 38"
