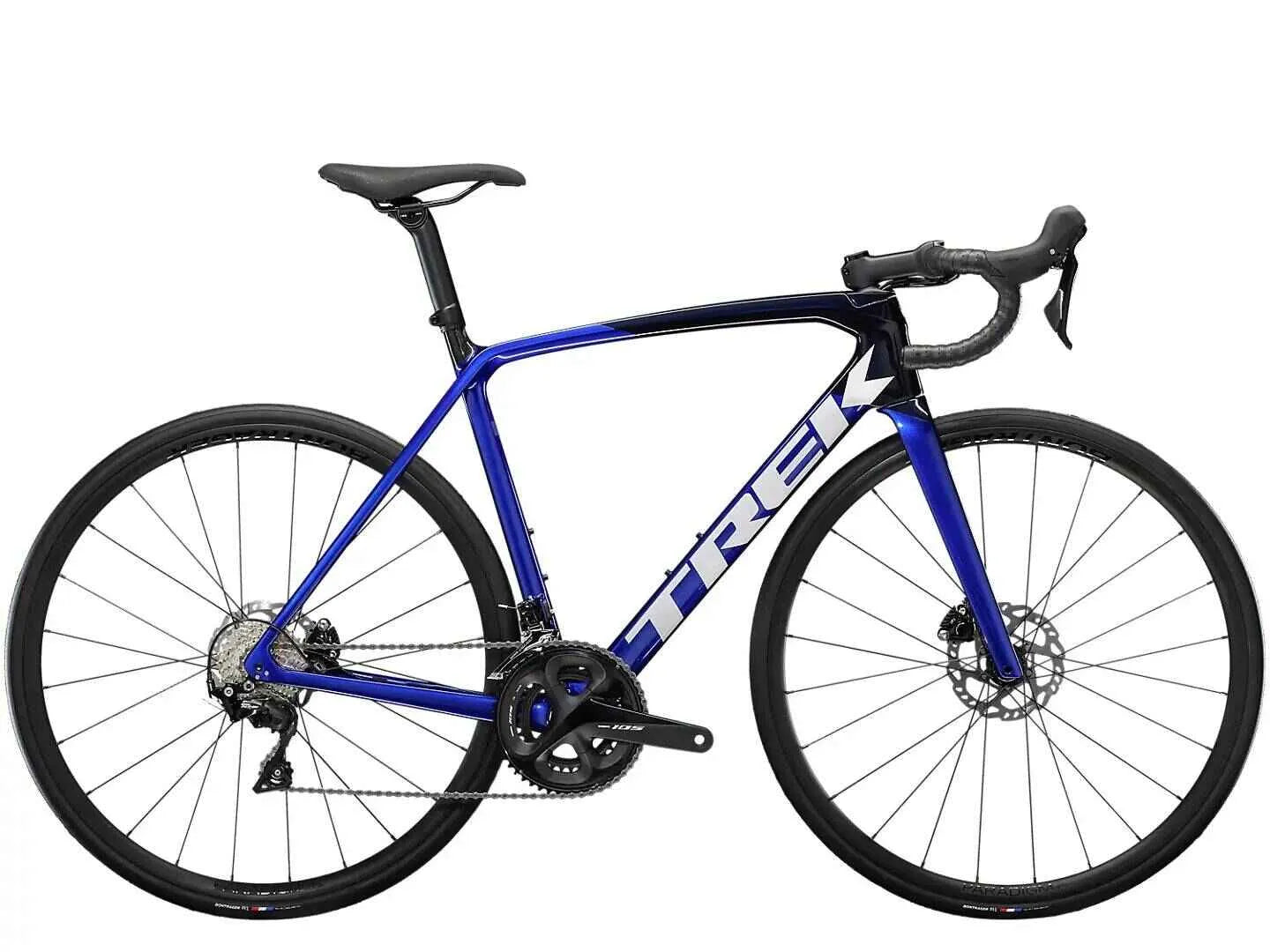

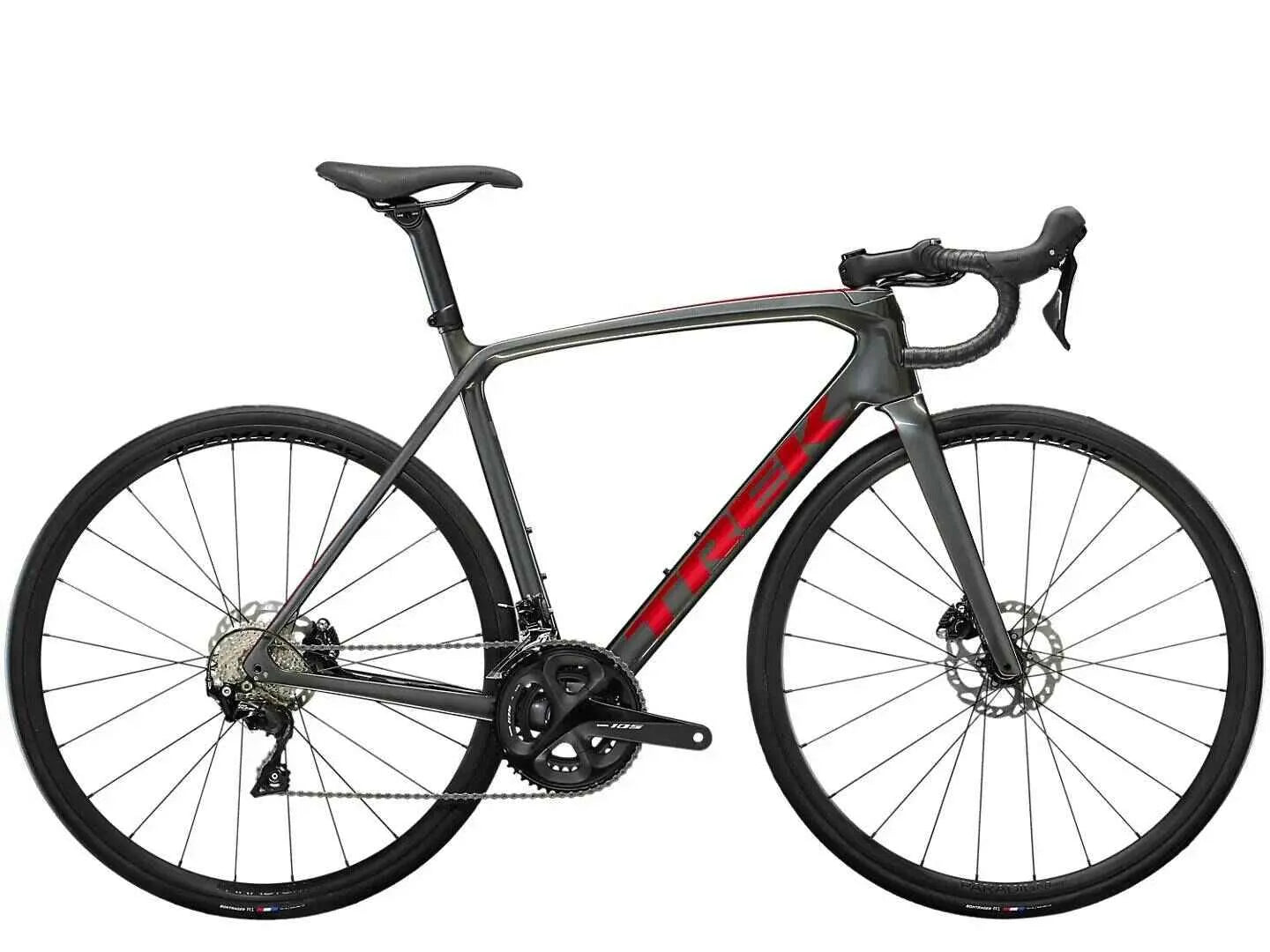

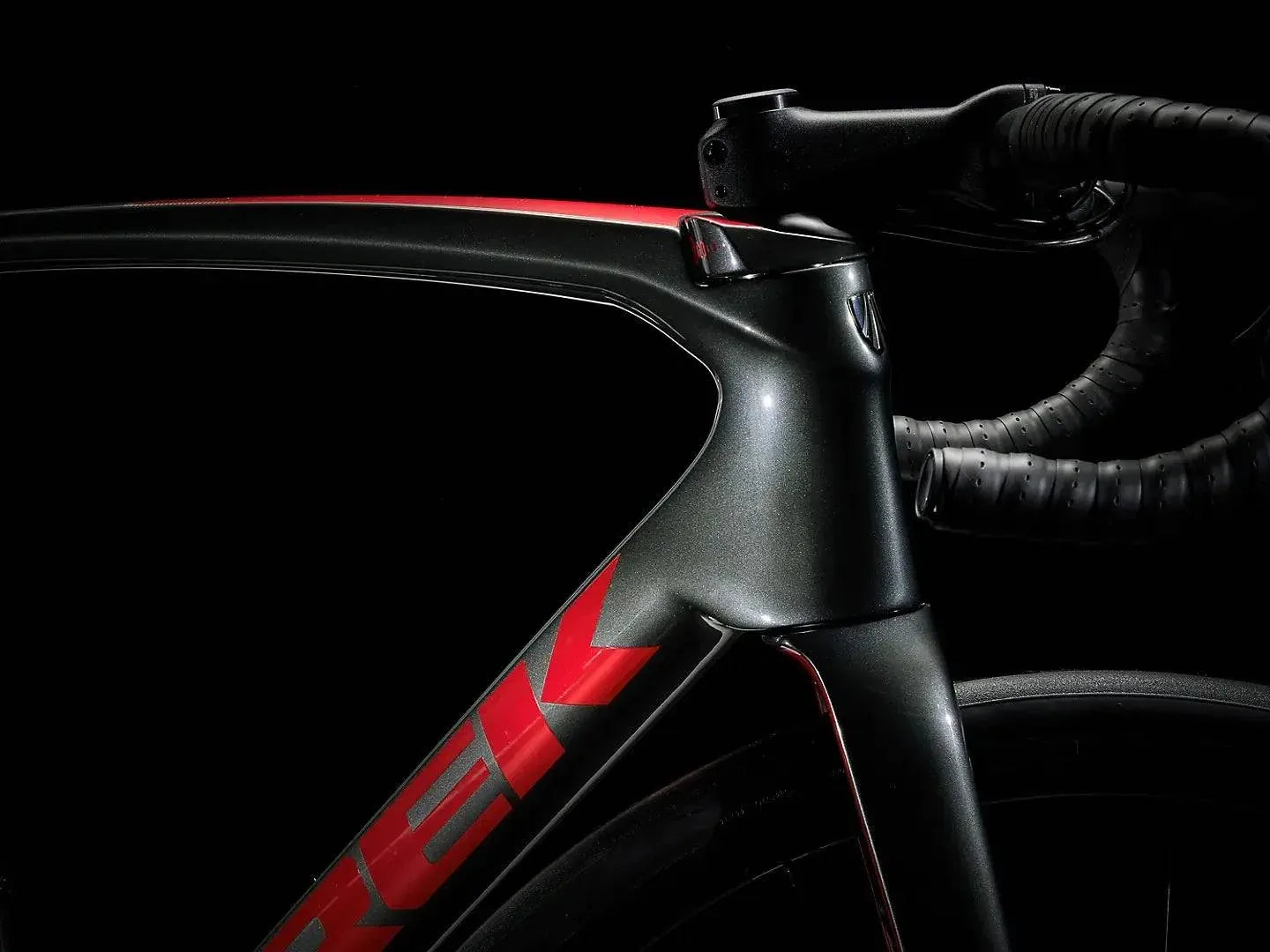

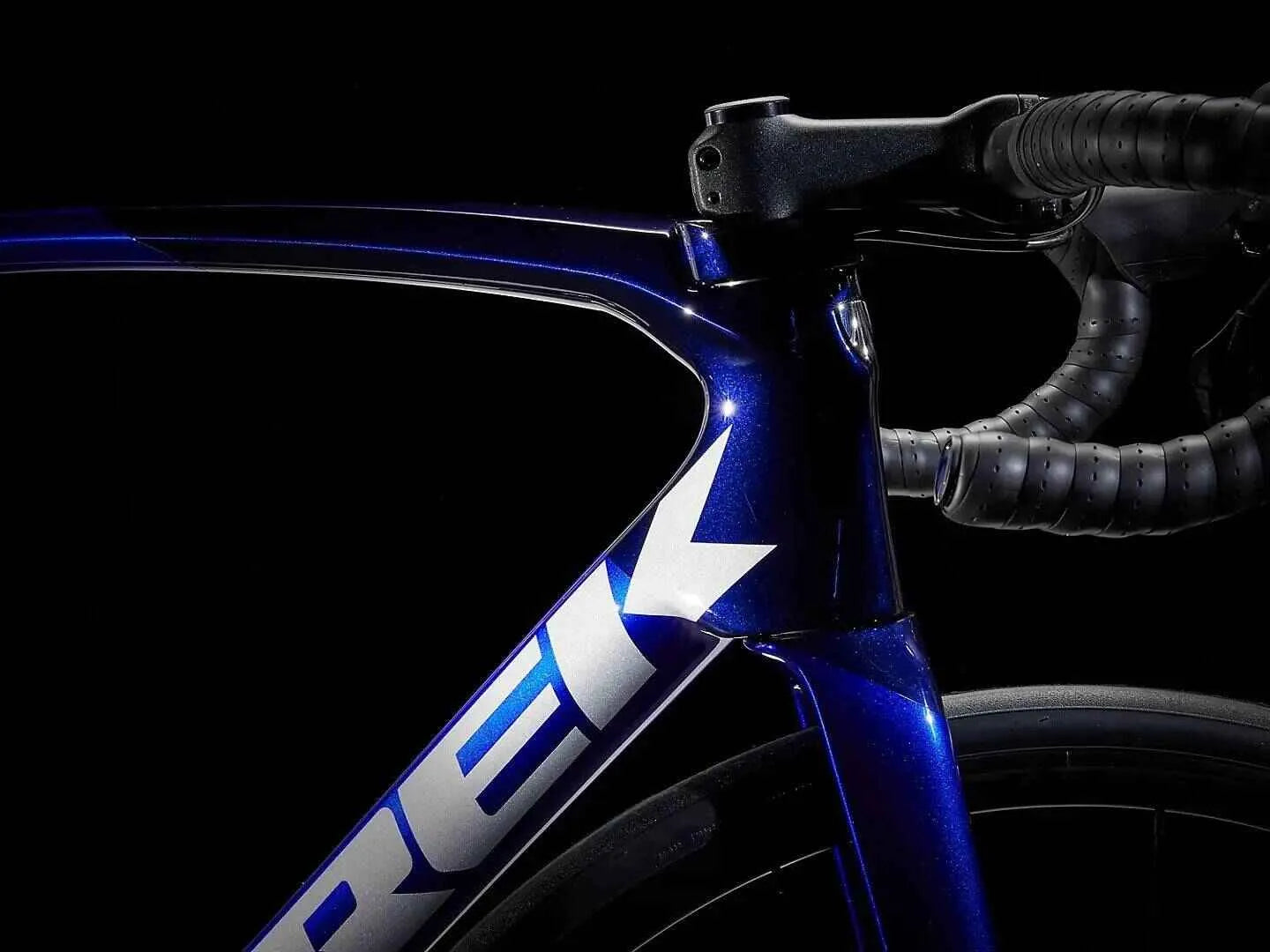

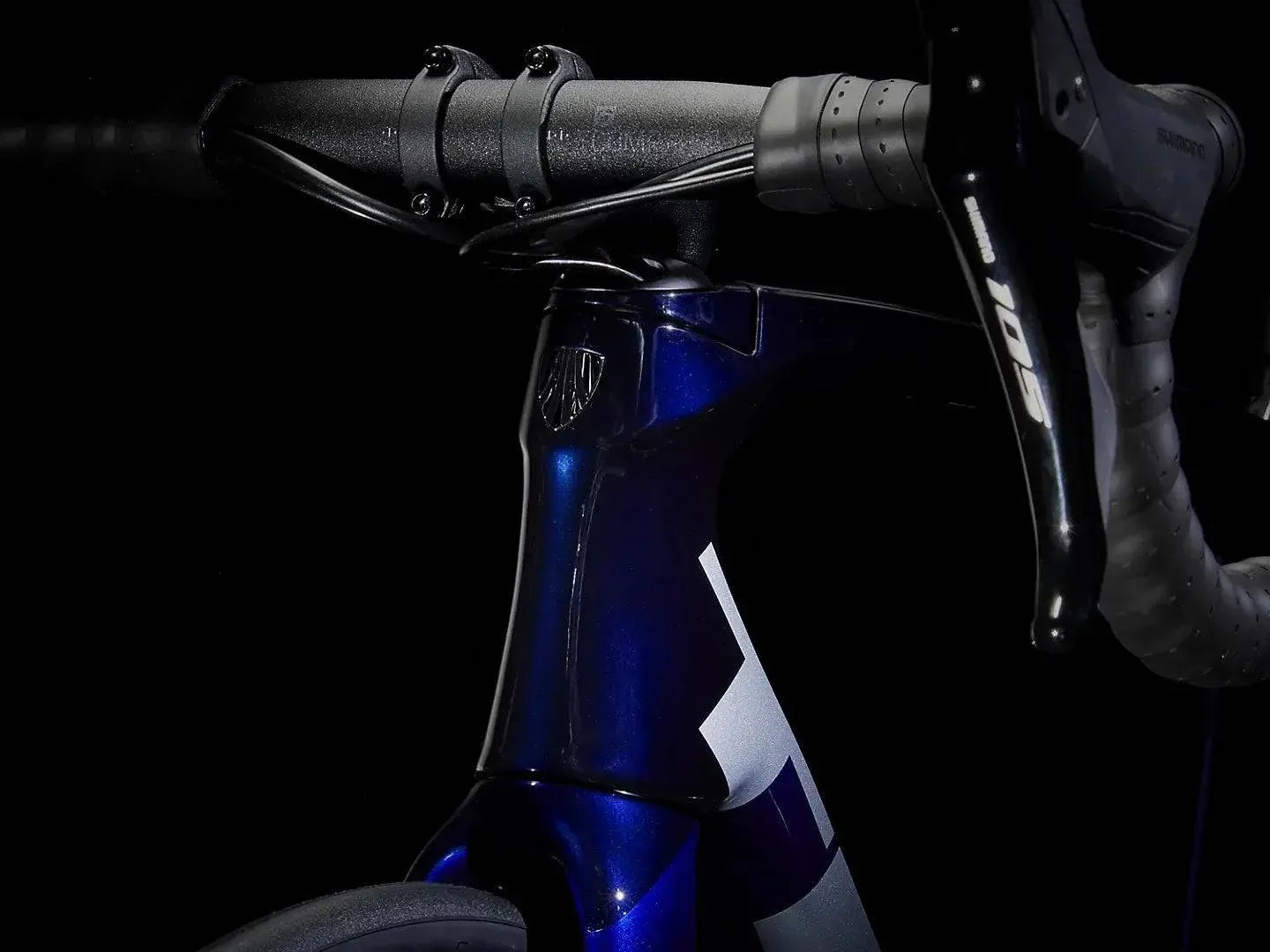

Émonda SL 5 Disc
- Regular price
- 10,858.88 SR
- Regular price
-
14,478.50 SR - Sale price
- 10,858.88 SR
- Unit price
- per
Save 3,619.62 SR
Split your payments into 4 with tabby. No interest, no fees!
The Émonda SL 5 road bike is a lightweight carbon fiber frame bike that offers a high-quality ride, superior handling, and a free-speed advantage thanks to the pneumatic tube formation. It's also a great choice for fans of mountain terrain, windy roads, and downhill trails.
Subtotal:
10,858.88 SR
+
+
Couldn't load pickup availability
Compare Color
Overview
Features
Specs
Geometry
Sizing
It's just too perfect
This bike is ideal for those who want to go fast and is made of lightweight carbon fiber. It is also an ideal bike for those who want to improve their riding skills and go with a carbon bike instead of an aluminium one. This bike is perfect for those who want a bike with high-quality components and brakes that give them confident stopping power for a distinguished ride with an aerodynamic OCLV carbon frame.
Technology you get

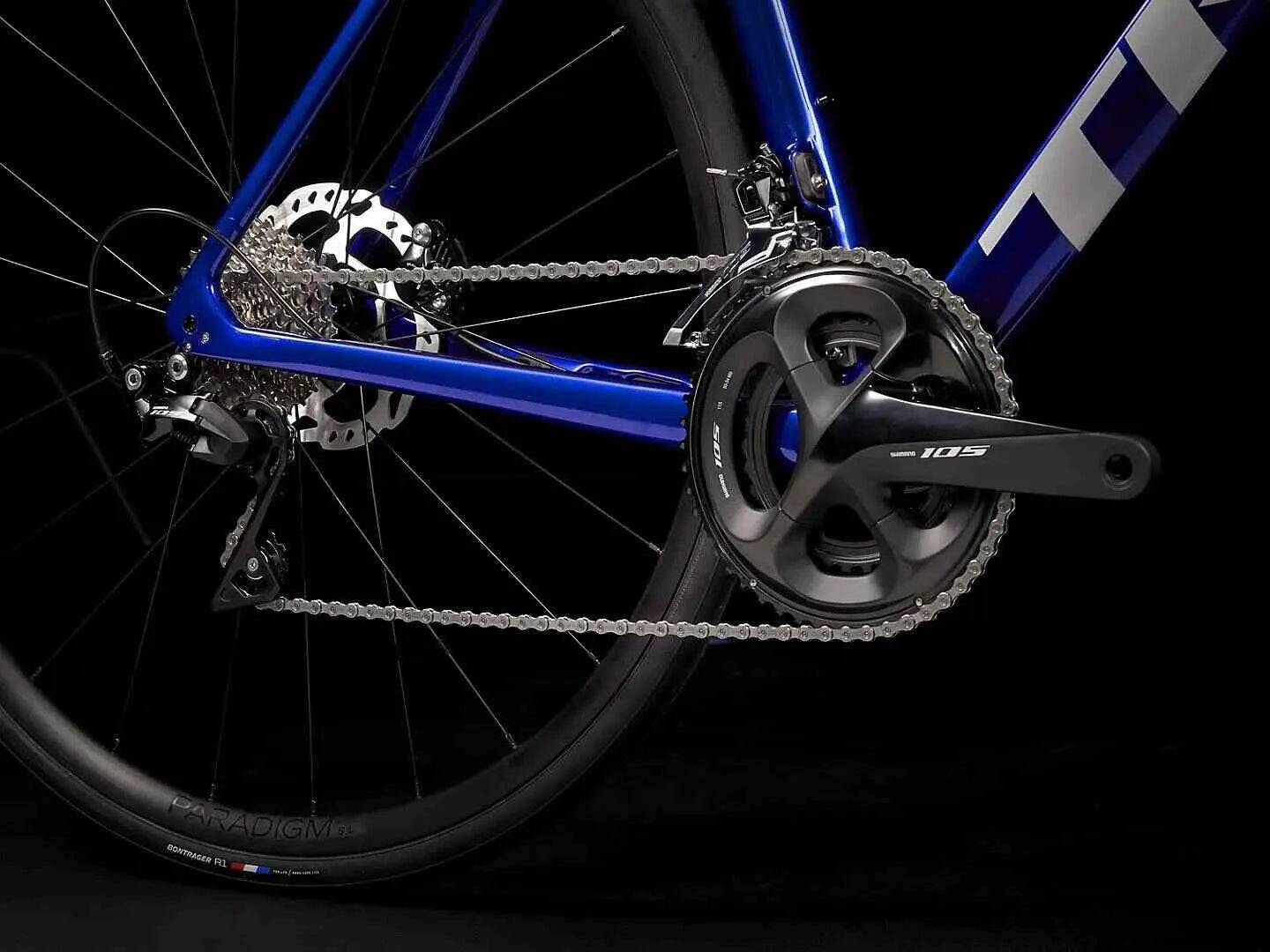

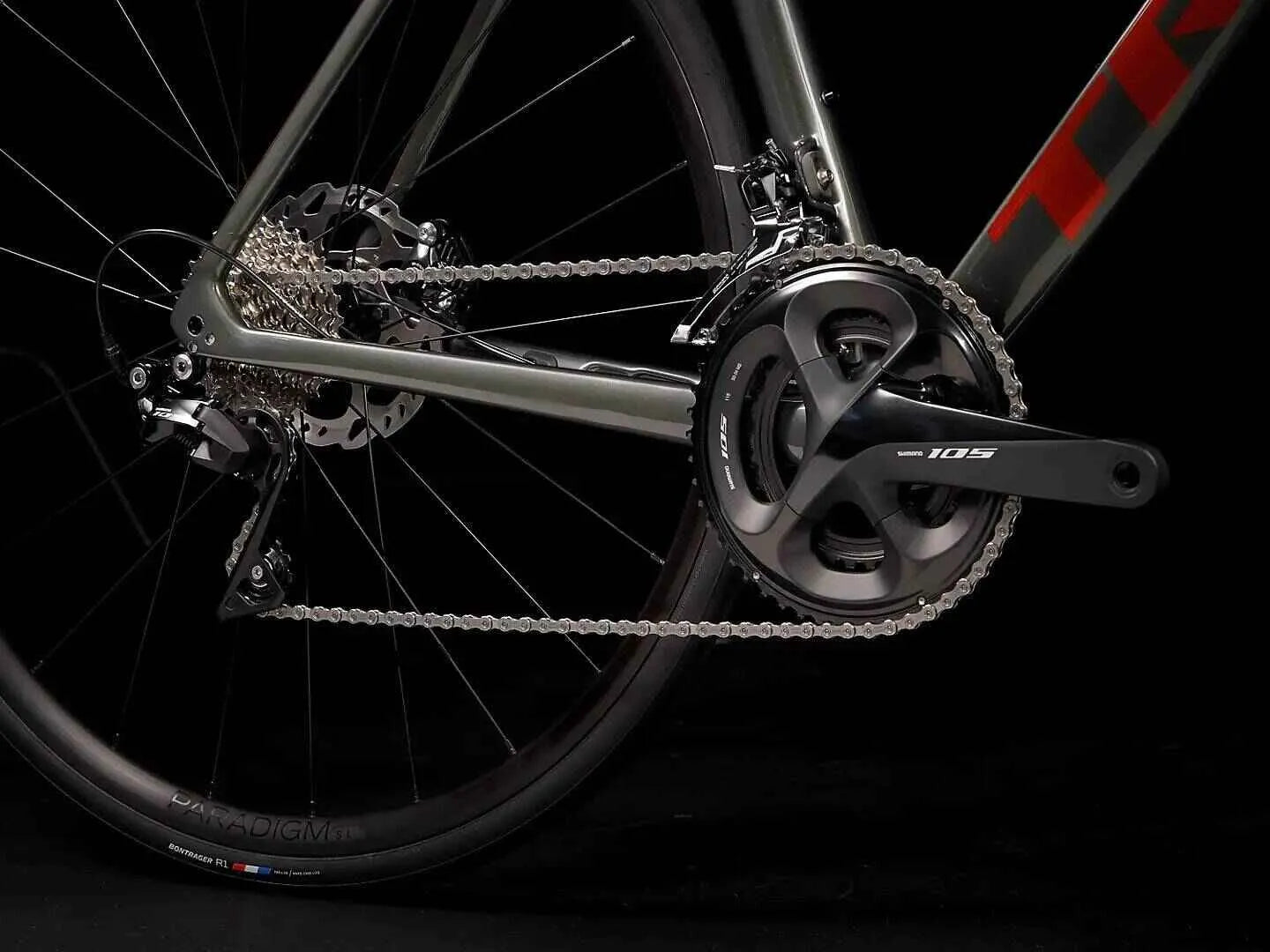

The Émonda SL 5 road bike includes a front fork and a frame made of OCLV 500 carbon fiber that is lightweight and aerodynamic. This bike has a Shimano 11-speed drivetrain and powerful Shimano hydraulic disc brakes that are flat-mounted to the frame. Finally, the bike's cables are inward-facing for a clean look, plus the bike has Bontrager Paradigm Comp Tubeless Ready wheels.
Generally
This bike is light and dynamic, enabling fast climbs over straights. It also provides you with high stopping power and control that help you make the big descents with the utmost comfort and flexibility. Hydraulic disc brakes and a reliable drivetrain make this bike an ideal choice for carbon bike enthusiasts.
Why would you like it?
You get a lot for the price of the Emonda 5, including a light, fast, fun-to-ride, and ready-to-race chassis. This bike has an aerodynamic tube shape that makes it the fastest ever on flat roads and uphill. Hydraulic disc brakes give you superior stopping power and control in all weather conditions and on all types of roads and trails. This bike is a higher level to improve your performance by riding a high-value professional bike than riding an aluminium bike.
The Walkthrough
New impressive design
This bike has an aerodynamic design that enables you to take off on flat roads and climbs faster. The aero tube shapes on this bike also give you additional new features in addition to what the bike includes, including a new and elegant Aeolus RSL shaft for high aero performance.
Great bikes for everyone
Émonda SL 5 is a bike suitable for all body types and abilities, for both men and women, and it is equipped with high-quality components in sizes that suit numerous cyclists.

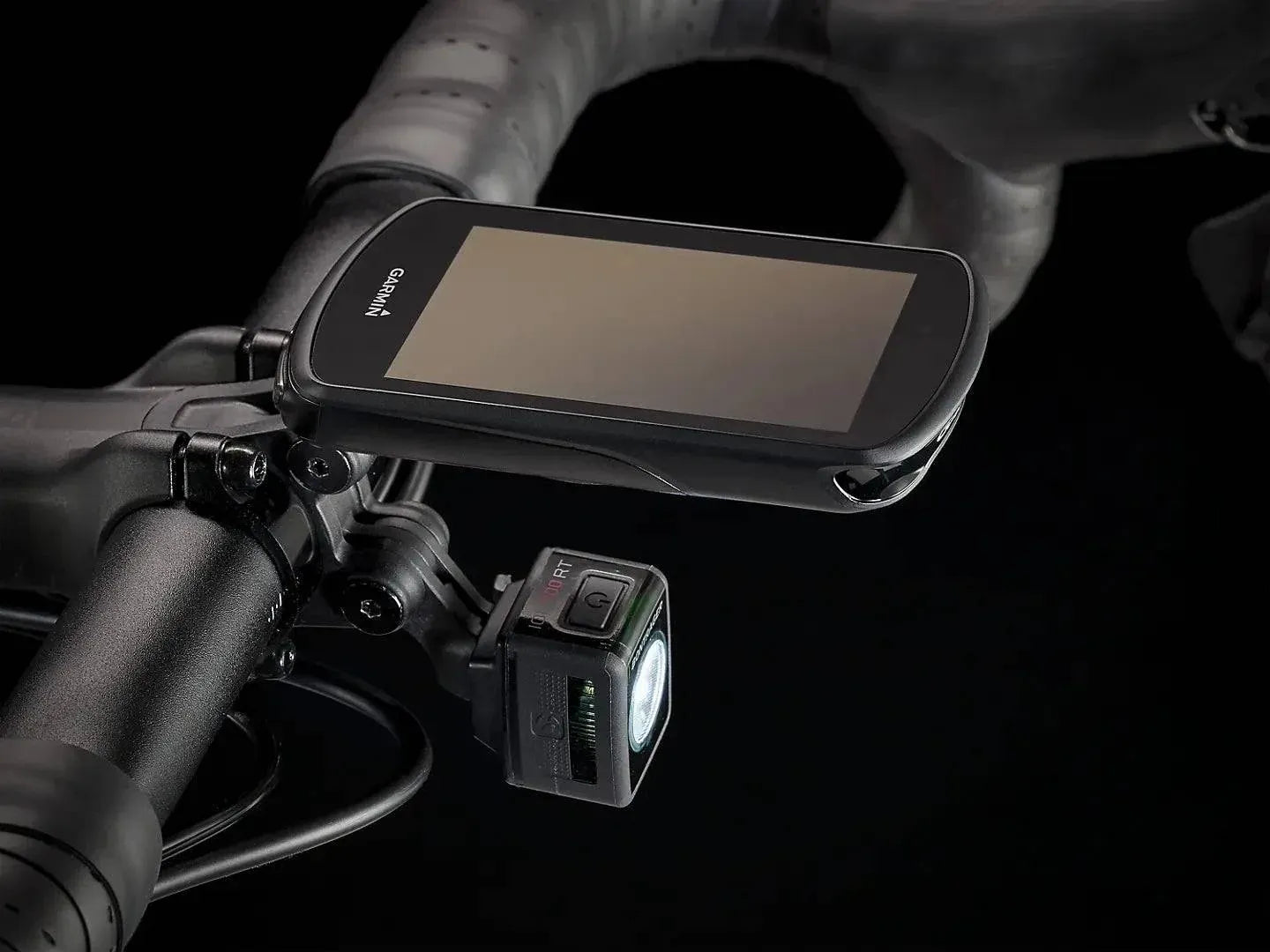

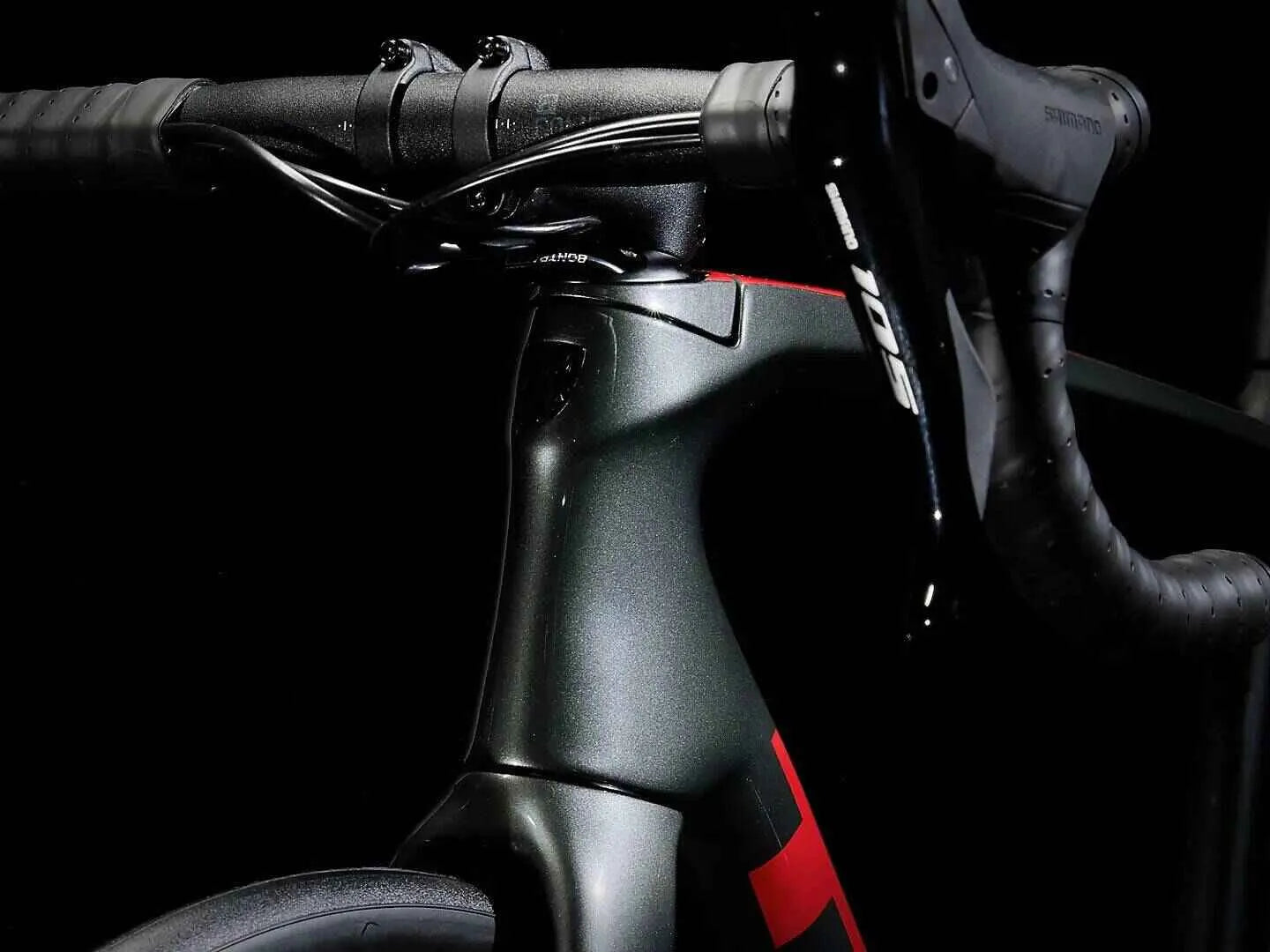

Stem Blender
This technology from Bontrager gives you a clean and stylish look to your bike and makes it easier and more enjoyable to utilize your bike.
12 mm thru axle
For added control, this 12mm axle makes the rider get off the bike in a more agile and controlled manner. This 12mm axle helps you ride with the utmost flexibility and control, enabling you to ride with 35% more quality and power than if you rode with an open dropout design.
Duo Trap S technology
You can purchase this technology separately from the bike. And you can take advantage of its advantages by installing it with the Bluetooth sensor on the bike frame, and then this sensor calculates the distance that the bike travels while it is cycling. This technology works easily with the following wireless players:- ANT Bontrager SRM Power Tap Garmin

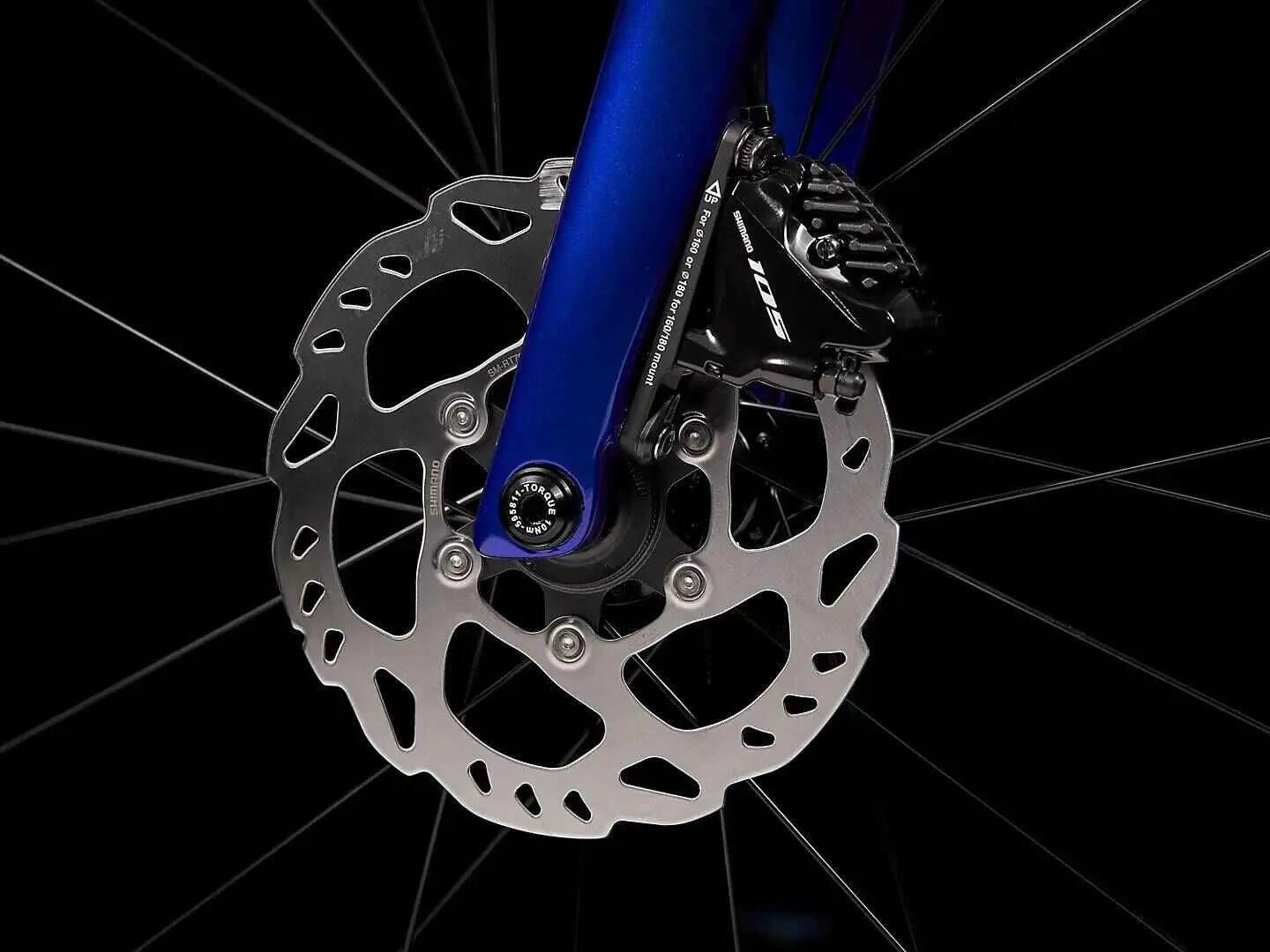

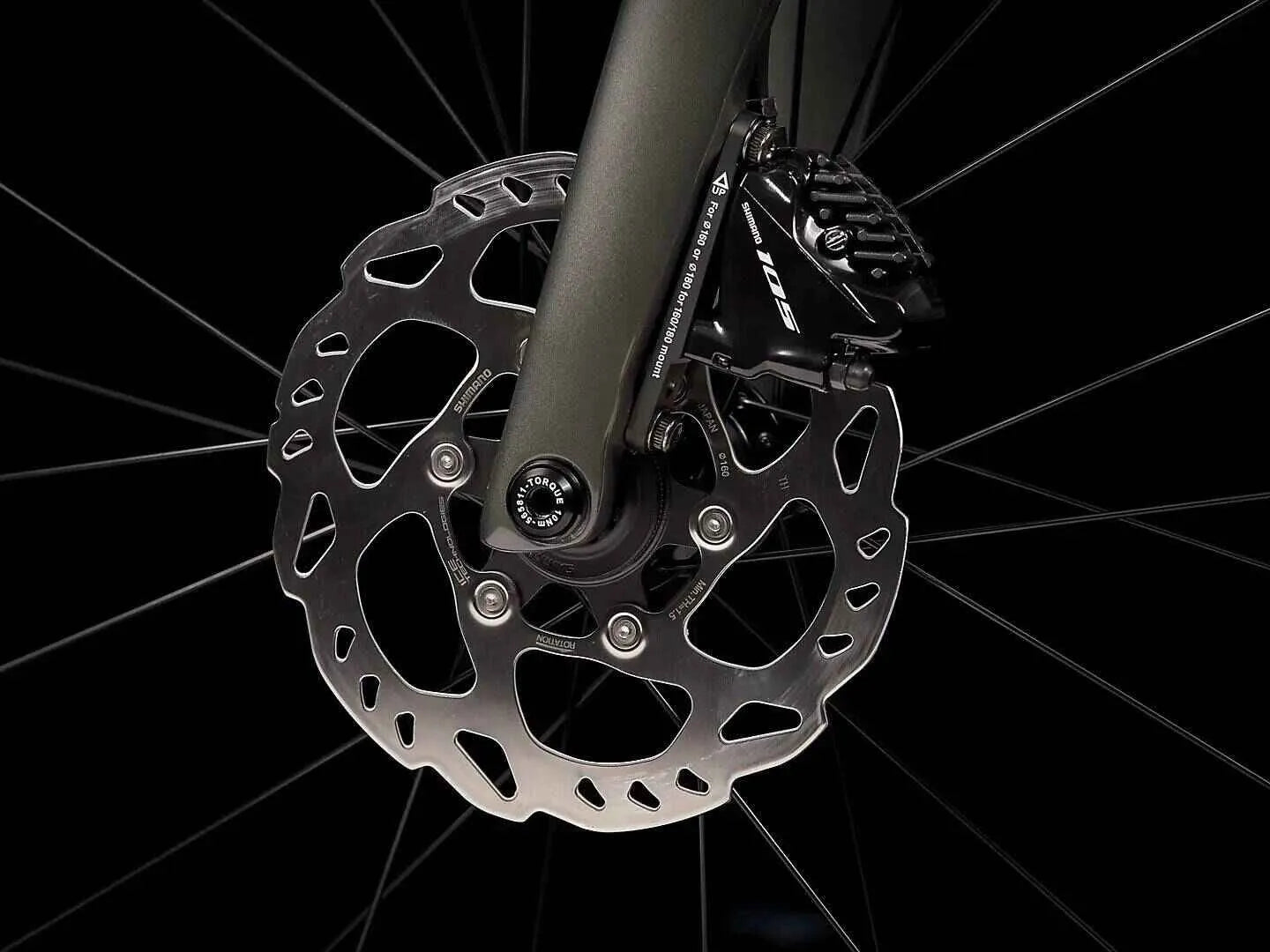

Flat disc brakes
All of Trek's flat disc brakes are sleeker, lighter, smaller, and cleaner than traditional brakes. It also gives the cyclist high stopping power in various normal and severe weather conditions.
H1. 5 Fit
The H 1.5 Fit design enables riders to flex into a race-appropriate tuned aero position, which is exactly what racers want from an Emonda 5 SL disc bike.
Ride Tuned seatmast
The Émonda SL 5 road bike seat is designed to enable cyclists to go biking in harsh or professional conditions. And it is a suitable solution, being lighter in weight and more comfortable for daily transportation, regardless of the ruggedness of the road or the start of the bicycle.
500 Series OCLV Carbon Fiber
The Émonda SL 5 Disc is built out of OCLV 500 series carbon fiber, which blends the equal balance of power, lightweight, and durability needed for Trek bicycles.
Frameset
| Frame | Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |
|---|---|
| Fork | Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle |
| Frame fit | H1.5 Race |
Wheels
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 c |
| Max tyre size | 28c |
Drivetrain
| *Shifter | Size: 47, 50, 52 Shimano 105 R7025, short-reach lever, 11-speed |
|---|---|
| Size: 54, 56, 58, 60, 62 Shimano 105 R7020, 11-speed | |
| Front derailleur | Shimano 105 R7000, braze-on |
| Rear derailleur | Shimano 105 R7000, short cage, 30T max cog |
| *Crank | Size: 47 Shimano 105 R7000, 50/34 (compact), 165 mm length |
| Size: 50, 52 Shimano 105 R7000, 50/34 (compact), 170 mm length | |
| Size: 54, 56, 58 Shimano 105 R7000, 50/34 (compact), 172.5 mm length | |
| Size: 60, 62 Shimano 105 R7000, 50/34 (compact), 175 mm length | |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 R7000, 11-30, 11 speed |
| Chain | Shimano 105 HG601, 11-speed |
| Max. chainring size | 1x: 50T, 2x: 53/39 |
Components
| *Saddle | Size: 47, 50, 52 Bontrager Verse Short Comp, steel rails, 155 mm width |
|---|---|
| Size: 54, 56, 58, 60, 62 Bontrager Verse Short Comp, steel rails, 145 mm width | |
| *Seatpost | Size: 47, 50, 52, 54 Bontrager alloy seat mast cap, 10 mm offset, short length |
| Size: 56, 58, 60, 62 Bontrager alloy seat mast cap, 10 mm offset, tall length | |
| *Handlebar | Size: 47, 50 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width |
| Size: 52 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width | |
| Size: 54, 56, 58 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width | |
| Size: 60, 62 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width | |
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 47 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: 50 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length | |
| Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length | |
| Size: 56 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length | |
| Size: 58, 60, 62 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length | |
| Brake | Shimano 105 hydraulic disc |
| Brake rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
Weight
| Weight | 56 - 8.87 kg / 19.55 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
| Frame size number | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Stem length | Saddle rail height min (w/short mast) | Saddle rail height max (w/short mast) | Saddle rail height min (w/tall mast) | Saddle rail height max (w/tall mast) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 cm | 700c | 42.4 | 74.6° | 10.0 | 72.1° | 51.2 | 7.2 | 41.0 | 4.5 | 6.8 | 97.2 | 69.2 | 37.3 | 50.7 | 70.0 | 55.5 | 61.5 | 59.0 | 65.0 |
| 50 cm | 700c | 45.3 | 74.6° | 11.1 | 72.1° | 52.1 | 7.2 | 41.0 | 4.5 | 6.2 | 97.4 | 71.1 | 37.8 | 52.1 | 80.0 | 58.5 | 64.5 | 62.0 | 68.0 |
| 52 cm | 700c | 48.3 | 74.2° | 12.1 | 72.8° | 53.4 | 7.2 | 41.0 | 4.5 | 5.8 | 97.7 | 73.2 | 38.3 | 53.3 | 90.0 | 61.5 | 67.5 | 65.0 | 71.0 |
| 54 cm | 700c | 49.6 | 73.7° | 13.1 | 73.0° | 54.3 | 7.0 | 41.0 | 4.5 | 5.6 | 98.1 | 74.4 | 38.6 | 54.1 | 90.0 | 64.0 | 70.0 | 67.5 | 73.5 |
| 56 cm | 700c | 52.5 | 73.3° | 15.1 | 73.5° | 55.9 | 7.0 | 41.0 | 4.0 | 5.8 | 98.3 | 76.8 | 39.1 | 56.3 | 100.0 | 67.0 | 73.0 | 70.5 | 76.5 |
| 58 cm | 700c | 55.3 | 73.0° | 17.1 | 73.8° | 57.4 | 6.8 | 41.1 | 4.0 | 5.7 | 99.2 | 79.3 | 39.6 | 58.1 | 110.0 | 69.0 | 75.0 | 72.5 | 78.5 |
| 60 cm | 700c | 57.3 | 72.8° | 19.1 | 73.9° | 58.6 | 6.8 | 41.1 | 4.0 | 5.6 | 100.1 | 81.1 | 39.9 | 60.1 | 110.0 | 71.0 | 77.0 | 74.5 | 80.5 |
| 62 cm | 700c | 59.3 | 72.5° | 21.1 | 73.9° | 59.8 | 6.8 | 41.2 | 4.0 | 5.6 | 101.0 | 82.9 | 40.3 | 62.0 | 110.0 | 73.0 | 79.0 | 76.5 | 82.5 |
Size
47
50
52
54
56
58
60
62
Rider Height
152 - 158 cm
5'0" - 5'2"
158 - 163 cm
5'2" - 5'4"
163 - 168 cm
5'4" - 5'6"
168 - 174 cm
5'6" - 5'9"
174 - 180 cm
5'9" - 5'11"
180 - 185 cm
5'11" - 6'1"
185 - 190 cm
6'1" - 6'3"
190 - 195 cm
6'3" - 6'5"
Inseam
71 - 75 cm
28" - 30"
74 - 77 cm
29" - 30"
76 - 79 cm
30" - 31"
78 - 82 cm
31" - 32"
81 - 85 cm
32" - 33"
84 - 87 cm
33" - 34"
86 - 90 cm
34" - 35"
89 - 92 cm
35" - 36"
