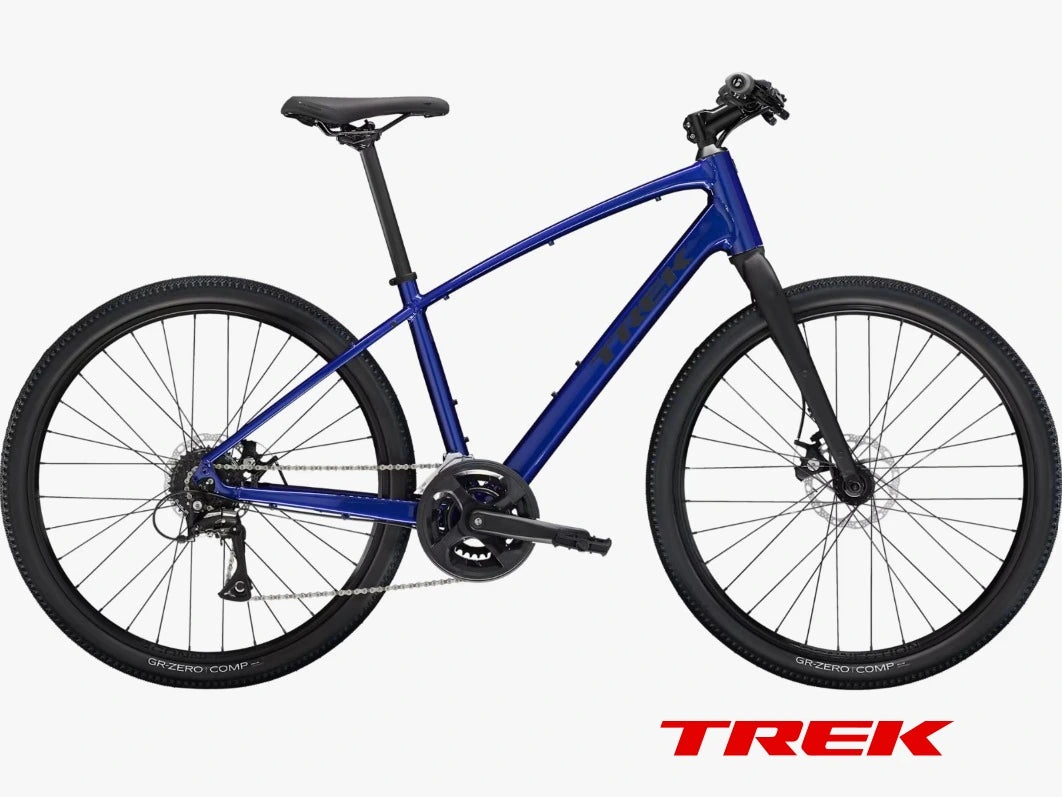

Dual Sport 1 Gen 5 - 2025
The Dual Sport 1 is a versatile hybrid bike designed to handle a range of terrain with ease. Featuring a lightweight frame, a robust drivetrain, and powerful brakes, its wide wheels and tires provide excellent traction and cushioning, ensuring a comfortable and confident ride on the road.
- 2,521.95
2,967.00- 2,521.95
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
Limited-Time Offers, End in:
151D
8H
23M
0S
Compare color
Overview
Features
Specs
Sizing
Geometry
It’s so perfect for you!
If you're seeking a versatile hybrid bike that combines power and lightweight performance with efficiency on the road and comfort on unpaved terrain, look no further. Our bike offers unparalleled confidence, stability, and versatility, making it ideal for both recreational rides and fitness-focused cycling. Whether you're cruising through city streets or exploring rugged trails.
The technology you get
The Dual Sport 1 Gen 5 bike features a robust yet lightweight aluminum frame with internal cable routing for a clean and sleek appearance. Equipped with disc brakes, riders can experience exceptional stopping power in any road and weather conditions, ensuring a safe and confident riding experience.
Generally
The Dual Sport bike is perfectly suited for riders who enjoy exploring both roads and rough terrain, offering versatility and adaptability to discover new adventures along the way.
Why you’ll love it!
The Dual Sport bike is perfectly suited for riders who enjoy exploring both roads and rough terrain, offering versatility and adaptability to discover new adventures along the way.
The Walkthrough
Frameset
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount. 135x5 mm QR |
|---|---|
| Fork | Dual Sport steel, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Tyre | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 c |
| Max tyre size | 27.5x2.00" |
Drivetrain
| Shifter | Shimano EF500, 8-speed |
|---|---|
| Front derailleur | Shimano Tourney TY710, 34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Altus M310 |
| Crank | Forged alloy, 46/30, chainguard, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano HG31, CS-HG31, 11-32, 8 speed |
| Chain | KMC Z8.3 |
| Pedal | Wellgo nylon platform |
| Max. chainring size | 1x: 42T, 2x/3x: 48T |
Components
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width
Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
Weight
| Weight | M - 13.88 kg / 30.61 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
| Size | Rider Height | Inseam |
|---|---|---|
| XS | 147 - 155 cm 4'10" - 5'1" | 69 - 73 cm 27" - 29" |
| S | 155 - 165 cm 5'1" - 5'5" | 72 - 78 cm 28" - 31" |
| M | 165 - 175 cm 5'5" - 5'9" | 77 - 83 cm 30" - 33" |
| L | 175 - 186 cm 5'9" - 6'1" | 82 - 88 cm 32" - 35" |
| XL | 186 - 197 cm 6'1" - 6'6" | 87 - 93 cm 34" - 37" |
All measurements provided in cm unless otherwise stated.
| Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 27.5" | 37.5 | 73.8° | 14.0 | 69.8° | 54.5 | 28.9 | 6.0 | 44.7 | 3.9 | 8.7 | 105.2 | 72.3 | 37.8 | 57.3 |
| M | 27.5" | 42.0 | 73.3° | 16.5 | 70.3° | 56.5 | 28.9 | 6.0 | 44.7 | 3.9 | 8.3 | 106.3 | 76.1 | 38.5 | 59.8 |
| L | 27.5" | 46.5 | 72.8° | 19.0 | 70.8° | 58.5 | 28.9 | 6.0 | 44.7 | 3.9 | 8.0 | 107.2 | 80.0 | 39.1 | 62.4 |
| XL | 27.5" | 52.0 | 71.8° | 21.5 | 71.8° | 61.5 | 28.9 | 6.0 | 44.7 | 3.9 | 7.4 | 107.9 | 84.3 | 40.1 | 65.2 |
