It is so perfect

This bike is so ideal for those who want a high-performance professional hybrid bike on both pavement and off-road and light trails. This bike meets the needs of individuals to go on a variety of recreational rides.

The technology you get

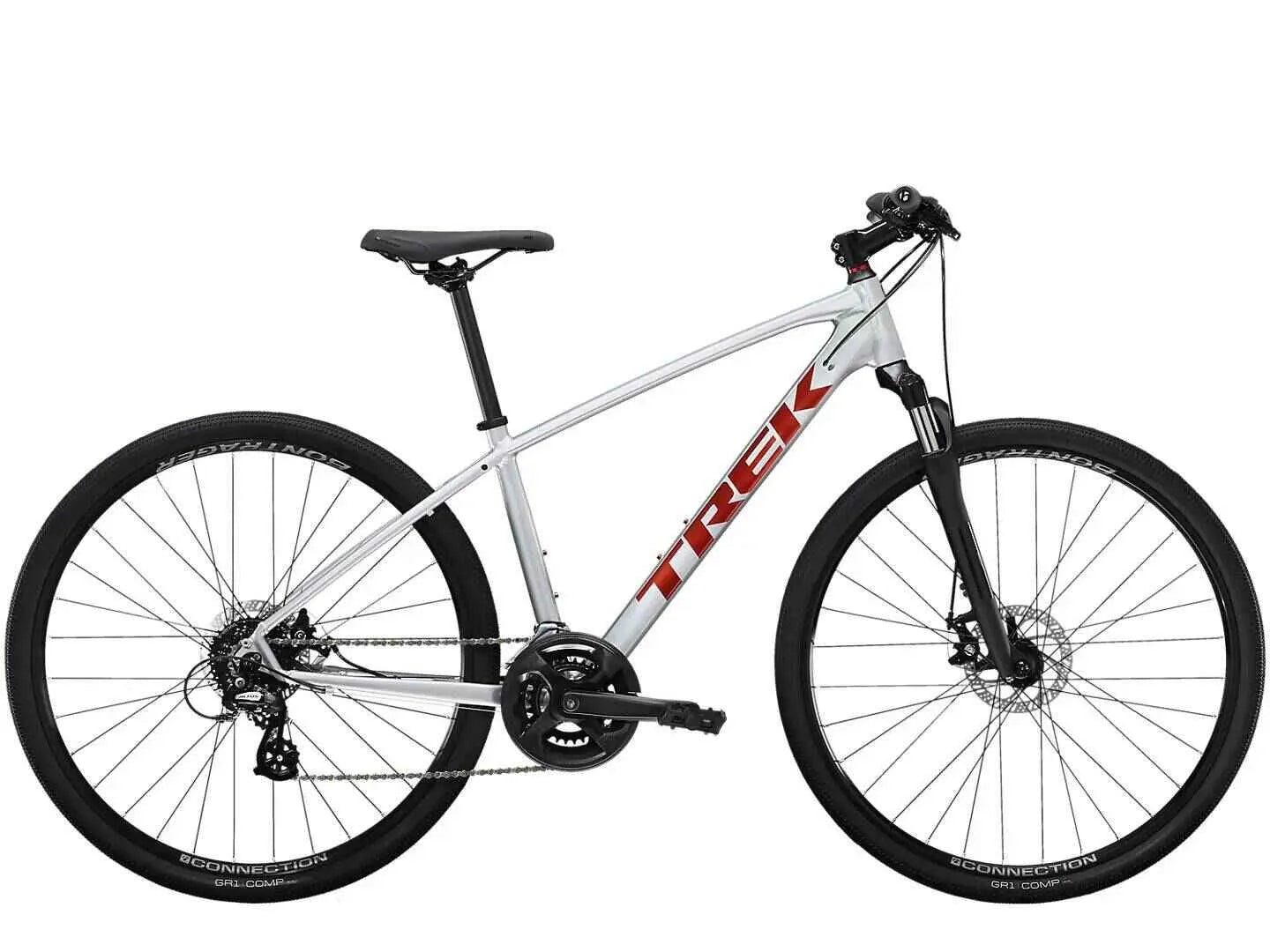

The Dual Sport 1 bike has a lightweight aluminum frame and fork suspension that enable the rider to go with the utmost comfort and stability. In addition, it has a 3x7 drivetrain and a wide range of gears that help the rider overcome hills. In addition, this bike has durable, fast-revolving all-terrain tires with mechanical disc brakes that enable the rider to obtain high stopping power in all road conditions and all weather conditions.

Generally

The Dual Sport 1 is a professional trek hybrid bike suitable for adventure purposes, flexibility, and stability on various roads, off-road and paved trails, and recreational purposes at the weekend.



Why you will prefer it

The Dual Sport 1 is a professional trek hybrid bike suitable for adventure purposes, flexibility, and stability on various roads, off-road and paved trails, and recreational purposes at the weekend.

The Walkthrough

Make it your own

Make it your own

You can personalize your bike with fenders, racks, bottle cages, and other accessories to make it uniquely yours.


Top curved tube

Top curved tube

The bike's compact body has a lower top tube underneath the seat tube. The curved tube is suitable for short riders as it allows them to align their bikes more easily. The bikes with tyres larger than M and above have a top tube, and the taller riders do not have the same problems as shorter riders.


Frameset

*Frame Size: S
Alpha Gold Aluminium, curved top tube, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR
Size: M, L, XL
Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR
Fork SR Suntour NEX, coil spring, preload, 100x5 mm QR, 63 mm travel

Wheels

Hub front Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear 152x5 mm QR
Rim Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
Tyre Bontrager GR1 Comp, wire bead, 60 tpi, 700x40 c
Max tyre size Frame: 700x45c with fenders, 29x2.10" without fenders Fork: See manufacturer

Drivetrain

Shifter Shimano EF500, 8-speed
Front derailleur Shimano Tourney TY710, 34.9 mm clamp, top swing, dual pull
Rear derailleur Shimano Altus M310
Crank Forged alloy, 46/30, chainguard, 170 mm length
Bottom bracket Sealed cartridge, 68 mm
Cassette Shimano HG31, 11-32, 8 speed
Chain KMC Z8.3
Pedal Wellgo nylon platform

Components

Saddle Bontrager Sport
Seatpost Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
*Handlebar Size: S, M
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
Size: L, XL
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620 mm width
Grips Bontrager Satellite
*Stem Size: S, M
Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
Size: L, XL
Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
Head set 1-1/8" threadless, sealed cartridge bearings
Brake Tektro MD-M280 mechanical disc, 160 mm rotor

Weight

Weight M - 13.54 kg / 29.86 lb
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

Size Rider Height Inseam
S

155 - 165 cm

5'1" - 5'5"

72 - 78 cm

28" - 31"

M

165 - 175 cm

5'5" - 5'9"

77 - 83 cm

30" - 33"

L

175 - 186 cm

5'9" - 6'1"

82 - 88 cm

32" - 35"

XL

186 - 197 cm

6'1" - 6'6"

87 - 93 cm

34" - 37"

Sizing table
Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
S 700c 38.1 74.5° 11.5 70.0° 57.5 29.4 6.0 46.0 3.8 8.5 109.6 66.7 41.0 59.5
M 700c 44.5 74.0° 12.5 71.0° 59.0 29.4 6.0 46.0 3.8 8.2 110.0 76.5 41.6 60.6
L 700c 50.8 73.5° 13.5 71.0° 60.5 29.4 6.0 46.0 3.8 8.2 110.5 80.8 42.3 61.6
XL 700c 57.1 72.5° 15.5 72.0° 63.5 29.4 6.0 46.0 3.8 7.5 111.0 85.0 43.4 63.9
