Domane SL 6 Gen 3
- Regular price
- 18,239.00 SR
- Regular price
-
- Sale price
- 18,239.00 SR
- Unit price
- per
The Domane SL 6 Gen 3 is a high-performance road bike that is fast and complete. This bike incorporates all the benefits of a road bike with an OCLV Carbon frame with IsoSpeed front and rear along with a complete Shimano Ultegra drivetrain, high-quality wheels, and hydraulic disc brakes for...
Subtotal:
18,239.00 SR
Couldn't load pickup availability
Overview
xIt is so perfect...
Quality, comfort and speed are your main considerations. You want a lightweight carbon bike that will stand up to the rigours of all-day rides and races, with the road-smoothing benefit of Front and Rear IsoSpeed, plus the all-weather stopping power of hydraulic disc brakes.
The technology you get.
A 500 Series OCLV Carbon frame with road-smoothing Front and Rear IsoSpeed, powerful flat-mount disc brakes and a full 2x11 Shimano Ultegra group set. Plus, Bontrager Paradigm Comp tubeless-ready wheels, a fatigue-reducing Bontrager Elite IsoZone handlebar and internal storage and cable routing that add to the bike's capability and sleek look.
The final word ...
All the road-smoothing benefits of a carbon Domane, with a more performance-oriented Shimano Ultegra group set and the extra stopping power of hydraulic disc brakes. This bike is fast, light, smooth and ready for adventure.
Why you'll love it
- Domane SL 6 is an outstanding all-around road bike: race-worthy spec, a lightweight carbon frame and Front and Rear IsoSpeed that soaks up fatiguing bumps so you can stay stronger for longer
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear
- Tubeless Ready Bontrager Paradigm wheels deliver extra confidence and comfort on long, fast rides
- The stable Endurance Geometry is comfortable over long distances, but this is still a quick racing bike
The Walkthrough
Features
x
T47 Bottom Bracket
Equipped with a threaded T47 bottom bracket. In addition to being super-reliable and easy to service, this system offers extra stiffness for better power transfer and pedalling efficiency.
IsoSpeed decoupler
The core of Trek's endurance comfort technology is our IsoSpeed decoupler, the result of an 18-month study of how a racing bike performs over rough roads, and how that performance affects the rider. It's a technological revolution.
Front IsoSpeed
Trek's Front IsoSpeed technology is a breakthrough in ride-smoothing technology, bringing a new standard of compliance to a bike's front end that increases smoothness and balance so you can ride faster, longer and stronger.
500 Series OCLV
500 Series OCLV achieves a superb balance of light weight, strength, and stiffness that's perfectly suited to the sophisticated frame technologies that distinguish Trek frames.
Endurance fit
As befits the world’s most advanced endurance racing bikes, we’ve developed the world’s most stable racing geometry. Still racy, but with a slightly higher head tube for better stability and greater comfort throughout the entire ride.
Endurance geometry
Performance. Stability. Victory. Trek endurance geometry is a triple threat, maximising control, handling and responsiveness through perfectly tuned rider weight bias.
Additional Tyre Clearance
The additional tyre clearance allows the Domane to go where no road bike has gone before. Race, ride, explore.

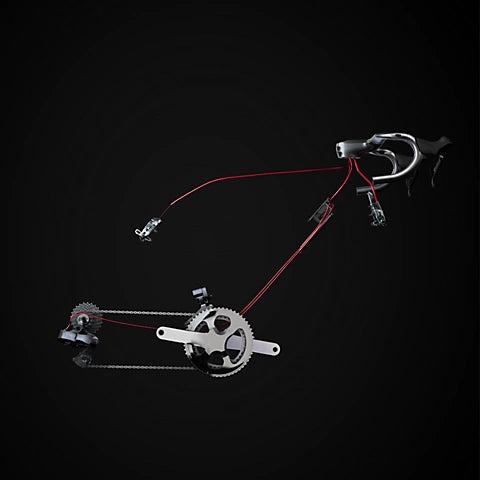

Performance cable routing
Our sleek, race-optimised cable routing system virtually eliminates friction for the crispest shifting in any conditions. Three years in the making, and well worth the wait.
Flat Mount disc brakes
All-new Flat Mount disc brakes are more elegant, lighter, smaller and cleaner than traditional disc brakes, providing superior performance and stopping power under harsh conditions.
Micro-adjust seatmast
The all-new micro-adjust seat mast is lightweight, strong, super aerodynamic and easy to use. Even a millimetre change in geometry can alter your speed. Dial in your fastest, lowest-profile position ever with the all-new seat mast.
< Blendr-compatible stem
Bontrager Blendr stem technology lets you clip your gear directly to the stem for clean looks and maximum user friendliness.
Mudguard compatible
Mudguard mounts allow for full-coverage mudguards so you can ride comfortably in less-than-ideal conditions.
Warrantied for life
Carbon wheels can lighten your ride and improve your performance – and when you ride Bontrager, your investment is protected. All Bontrager carbon wheels are backed by a lifetime warranty for the original owner.
Specs
xFrameset
| Frame | 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle |
|---|---|
| Fork | Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Frame fit | Endurance |
Wheels
| Wheel front | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle |
| Hub front | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width |
| Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 38c |
Drivetrain
| *Shifter | Size: 44, 47, 50, 52 Shimano Ultegra R8025, short-reach lever, 11 speed |
|---|---|
| Size: 54, 56, 58, 60, 62 Shimano Ultegra R8020, 11 speed | |
| Front derailleur | Shimano Ultegra R8000, braze-on |
| Rear derailleur | Shimano Ultegra R8000, long cage, 34T max cog |
| *Crank | Size: 44, 47 Shimano Ultegra R8000, 50/34 (compact), 165 mm length |
| Size: 50, 52 Shimano Ultegra R8000, 50/34 (compact), 170 mm length | |
| Size: 54, 56 Shimano Ultegra R8000, 50/34 (compact), 172.5 mm length | |
| Size: 58, 60, 62 Shimano Ultegra R8000, 50/34 (compact), 175 mm length | |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano Ultegra HG800, 11-34, 11 speed |
| Chain | Shimano Ultegra HG701, 11 speed |
Components
| *Saddle | Size: 44, 47, 50, 52 Bontrager Verse Comp, steel rails, 155 mm width |
|---|---|
| Size: 54, 56, 58, 60, 62 Bontrager Verse Comp, steel rails, 145 mm width/td> | |
| *Seatpost | Size: 44, 47, 50, 52, 54, 56 Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, short length |
| Size: 58, 60, 62 Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, tall length | |
| *Handlebar | Size: 44, 47 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 36 cm width |
| Size: 50 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width | |
| Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width | |
| Size: 54, 56 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width | |
| Size: 58, 60, 62 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 44 cm width | |
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 44 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
| Size: 47 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length | |
| Size: 50 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length | |
| Size: 52, 54 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length | |
| Size: 56, 58 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length | |
| Size: 60, 62 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length | |
| *Brake rotor | Size: 44, 47, 50, 52, 54, 56, 58, 60, 62 Shimano MT800, CenterLock, 160 mm |
| Size: 52, 60, 62 Shimano RT800, CenterLock, 160 mm |
Accessories
| Bag | Bontrager BITS Internal Frame Storage Bag |
|---|
Weight
| Weight | 56 - 9.14 kg / 20.16 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
Sizing
x| Size | Rider Height | Inseam |
|---|---|---|
| 44 | 150 - 153 cm 4'11" - 5'0" | 71 - 73 cm 28" - 29" |
| 47 | 152 - 158 cm 5'0" - 5'2" | 71 - 75 cm 28" - 30" |
| 50 | 158 - 163 cm 5'2" - 5'4" | 74 - 77 cm 29" - 30" |
| 52 | 163 - 168 cm 5'4" - 5'6" | 76 - 79 cm 30" - 31" |
| 54 | 168 - 174 cm 5'6" - 5'9" | 78 - 82 cm 31" - 32" |
| 56 | 174 - 180 cm 5'9" - 5'11" | 81 - 85 cm 32" - 33" |
| 58 | 180 - 185 cm 5'11" - 6'1" | 84 - 87 cm 33" - 34" |
| 60 | 185 - 190 cm 6'1" - 6'3" | 86 - 90 cm 34" - 35" |
| 62 | 190 - 195 cm 6'3" - 6'5" | 89 - 92 cm 35" - 36" |
Geometry
x
| Frame size number | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Saddle rail height min (w/short mast) | Saddle rail height max (w/short mast) | Saddle rail height min (w/tall mast) | Saddle rail height max (w/tall mast) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 cm | 700c | 39.0 | 74.6° | 9.5 | 70.3° | 50.1 | 8.0 | 42.0 | 5.3 | 6.6 | 98.3 | 65.7 | 36.0 |
