    Domane + ALR

    20,444.70 SAR
    20,444.70 SAR

    Split your payments into 4 with tabby. No interest, no fees!

    tabby
    Trek Domane ALR is an electric bike with an aluminum tube, and this bike is designed to be perfect for cycling enthusiasts. It is an upgraded bike with many professional features. This bike has a stylish and efficient Fazua drivetrain that helps you get high performance when going against the...
    Vendor: Trek
    SKU: 601842423752
    Availability: Out Of Stock
    Product Type: E-Bikes
    Color: Red Black
    Size: 52
    year: 2022
    Subtotal: 20,444.70 SAR
    Compare Color
    Ask An Expert
    Domane + ALR Wheels Bikes

    Domane + ALR

    20,444.70 SAR
    Domane + ALR Wheels Bikes
    Domane + ALR Wheels Bikes
    Domane + ALR Wheels Bikes
    Domane + ALR Wheels Bikes
    Domane + ALR Wheels Bikes
    Domane + ALR Wheels Bikes
    Domane + ALR Wheels Bikes
    Domane + ALR Wheels Bikes
    Domane + ALR Wheels Bikes
    Domane + ALR Wheels Bikes
    Domane + ALR Wheels Bikes

    Domane + ALR

    20,444.70 SAR
    Color: Red Black
    Size: 52
    year: 2022
    Compare Color
    • red-black
    Click On Color / Pattern To Compare, Click And Drag Images To Reorder
    Overview
    Features
    Specs
    Geometry
    Sizing

    It is so perfect

    This bike is perfect for racing enthusiasts and lovers of riding a quality e-bike as a regular road bike. This bike has a lightweight electric drivetrain system that you'll hardly notice unless you want an extra boost of power.

    The technology you get

    This bike comes with a premium Alpha 300 series aluminum frame, fork suspension, a light, fast, and efficient Fazua Evation motor, and a Wh250 battery that powers you up to 20 mph. In addition to the above, this bike includes a professional Shimano 2X11 105 drivetrain and hydraulic disc brakes. Finally, you can easily remove the driving case, battery, and motor and go biking without them.

    Generally

    The Domane ALR's frame is top of the line, with a simple and efficient electric drive system. And the bike comes with a Shimano 105 high-performance drivetrain. So this bike gives you high performance and extra power when you want to go fast for racing or something like that.



    Why you would like to prefer it

    The Domane ALR is a highly efficient e-bike that makes you feel like you're riding a traditional road bike. If the maximum assist level is exceeded, you will not feel much drag or resistance from the Fazua system. This bike comes with an endurance geometry that provides you with more confidence and comfort while biking. Shimano's drivetrain provides you with power that enables you to go biking with all of your confidence, miles after miles.

    The Walkthrough

    Fast and efficient riding

    Fast and efficient riding

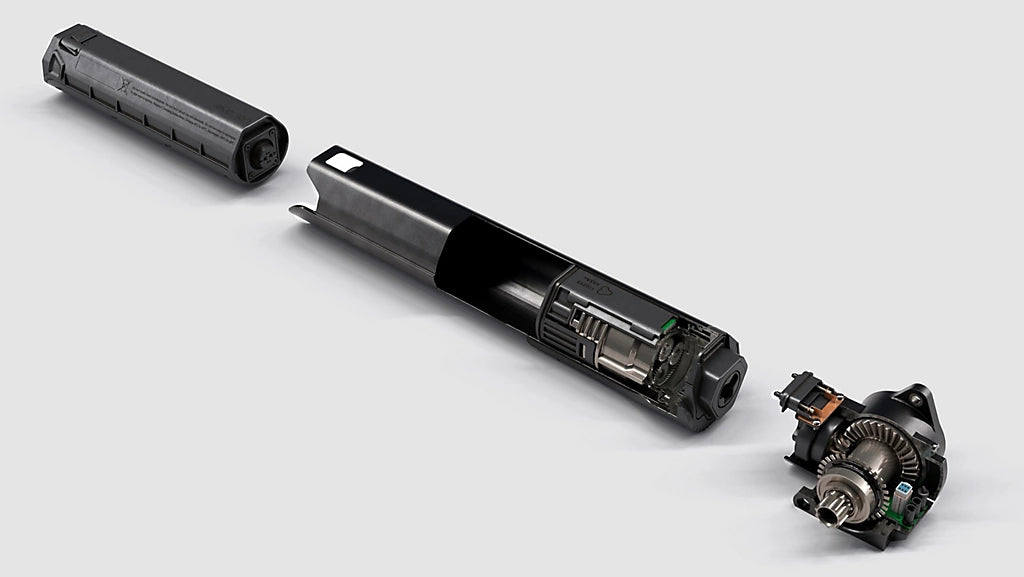

    The Fazua Lightweight Drivetrain on the bike gives you the power you need when you go long distances, and you can even dispense with it when you need it. You won't feel much resistance or drag when you turn off this system or if you have reached your maximum power level. Finally, the system is compatible with a smartphone app. And it allows you to check battery status and customize the ride.


    Frameset
    Frame 300 Series Alpha Aluminium, Fazua Evation integrated drive system, tapered head tube, internal routing, flat-mount disc, mudguard mounts, 148x12 mm thru axle
    Fork Domane+ carbon, tapered alloy steerer, flat-mount disc, 12x100 mm thru axle
    Frame fit Endurance
    Wheels
    Weight 56 - 15.21 kg / 33.54 lb, 12.30 kg /27.13 lb without drive pack (including storage cover, sold separately)
    Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
    E-system
    Battery Fazua Evation battery, 250 Wh
    Charger Fazua Evation charger, 220-240V
    Computer Fazua Evation touch remote
    Motor Fazua Evation Drive Pack, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
    Drivetrain
    *Shifter Size: 49, 52
    Shimano 105 R7025, short-reach lever, 11-speed
    Size: 54, 56, 58, 61
    Shimano 105 R7020, 11-speed
    Front derailleur Shimano 105 R7000, braze-on
    Rear derailleur Shimano 105 R7000, long cage, 34T max cog
    *Crank Size: 49, 52
    FSA Alloy for Fazua, 50/34 chain rings, 170 mm length
    Size: 54, 56
    FSA Alloy for Fazua, 50/34 chain rings, 172.5mm length
    Size: 58, 61
    FSA Alloy for Fazua, 50/34 chain rings, 175mm length
    Cassette Shimano 105 HG700-11, 11-34, 11-speed
    Chain Shimano 105 HG601, 11-speed
    Wheels
    Wheel front Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
    Wheel rear Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 148x12 thru axle
    Hub front Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
    Skewer front Bontrager Switch thru axle, removable lever
    Rim Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width
    Max tyre size 38c
    Components
    Saddle Bontrager Arvada Comp, steel rails, 138 mm width
    Seatpost Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
    *Handlebar Size: 49, 52
    Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width
    Size: 54, 56
    Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
    Size: 58, 61
    Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
    Handlebar tape Bontrager Supertack Perf tape
    *Stem Size: 49
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
    Size: 52, 54
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
    Size: 56, 58
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
    Size: 61
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
    Head set FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
    Brake Shimano 105 hydraulic disc
    *Brake rotor Size: 49, 52, 54, 56, 58, 61
    Shimano MT800, CentreLock, 160 mm
    Size: 49, 52, 54, 56, 58, 61
    Shimano EM810, CenterLock 160 mm

    We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

    Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

    Sizing table
    Frame size number Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
    49 cm 700c 44.0 74.6° 11.0 70.8° 51.7 8.0 43.0 5.3 6.7 100.7 72.7 36.8 54.0
    52 cm 700c 47.5 74.2° 13.0 71.3° 53.0 8.0 43.0 5.3 6.4 101.3 75.3 37.1 56.1
    54 cm 700c 50.0 73.7° 14.5 71.3° 54.2 8.0 43.0 5.3 6.4 102.1 77.2 37.4 57.5
    56 cm 700c 52.5 73.3° 16.0 71.9° 55.4 7.8 43.0 4.8 6.5 101.8 79.4 37.7 59.1
    58 cm 700c 54.8 73.0° 18.0 72.0° 56.7 7.8 43.0 4.8 6.5 102.7 80.9 38.0 61.1

    Size

    49

    52

    54

    56

    58

    61

    Rider Height

    156 - 163 cm

    5'1" - 5'4"

    163 - 168 cm

    5'4" - 5'6"

    168 - 174 cm

    5'6" - 5'9"

    174 - 180 cm

    5'9" - 5'11"

    180 - 185 cm

    5'11" - 6'1"

    185 - 191 cm

    6'1" - 6'3"

    Inseam

    74 - 77 cm

    29" - 30"

    76 - 79 cm

    30" - 31"

    78 - 82 cm

    31" - 32"

    81 - 85 cm

    32" - 33"

    84 - 87 cm

    33" - 34"

    86 - 90 cm

    34" - 35"
