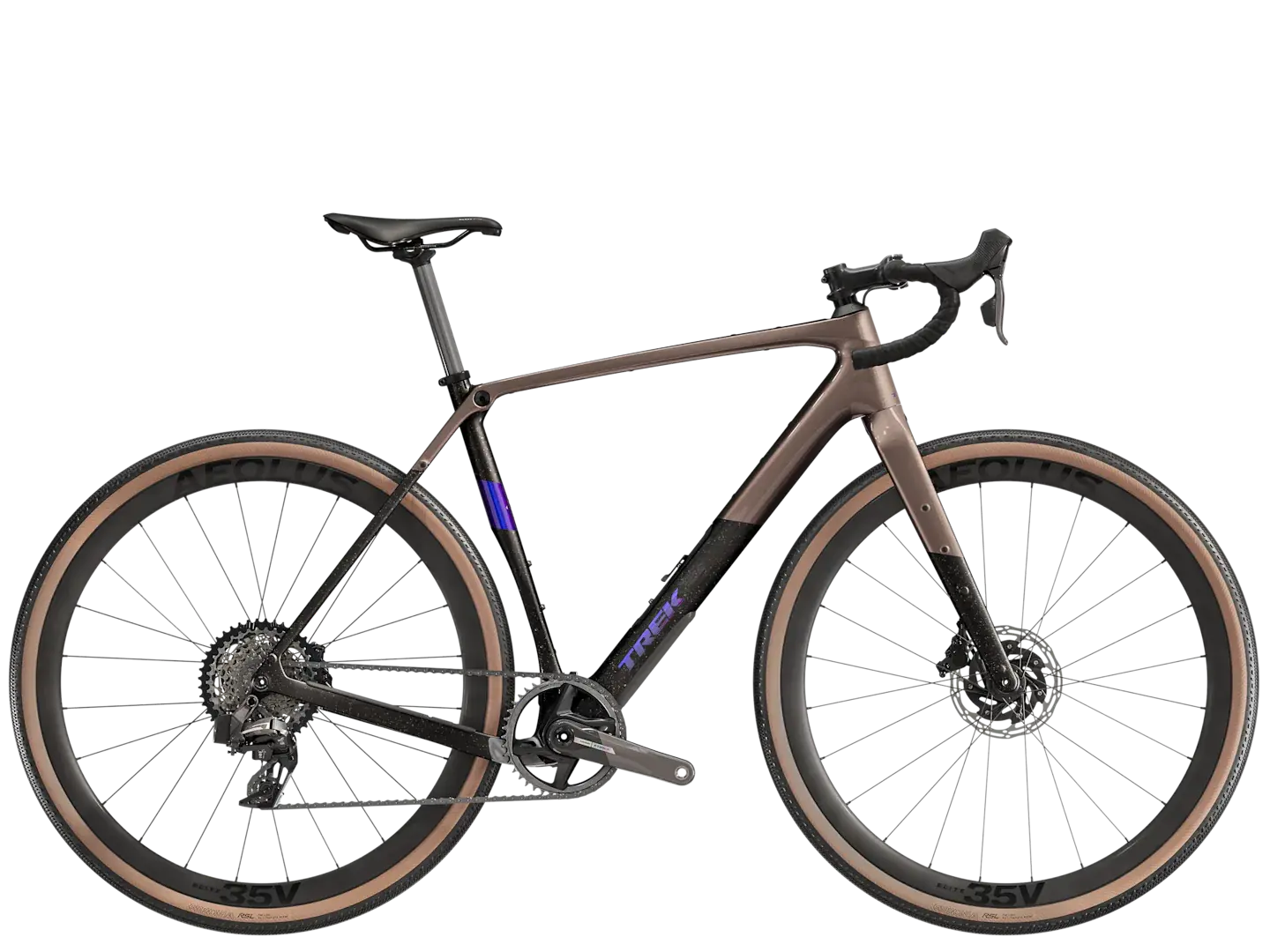

Checkpoint SL 7 AXS Gen 3
The Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike designed for going off the beaten path. It has a lightweight carbon frame with Gravel Endurance shape, many mounting choices, and clearance for up to 50 mm tires, making it versatile. The IsoSpeed technology smoothes out annoying vibrations from uneven terrain.
- 24,581.25
- 24,581.25
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
+
+
Compare color
Overview
Features
Specs
Sizing
Geometry
It's so perfect
You’re set to tackle longer rides and deeper adventures, seeking a gravel bike that can handle everything and more. You want the comfort of IsoSpeed technology to smooth out rough roads and key upgrades like carbon wheels and SRAM’s Force AXS D2 wireless drivetrain to enhance your ride.
The technology you get
It has a 500 Series OCLV Carbon frame equipped with a carbon fork, internal downtube storage, and room for 50 mm tyres (as measured), along with frame and fork mounts. It features a 12-speed 1x SRAM Force XPLR AXS fully wireless drivetrain, hydraulic disc brakes, a carbon seat post, and Tubeless Ready Bontrager Aeolus Elite 35V wheels fitted with 42 mm tyres.
Generally
If you're searching for a bike designed for long-distance adventures, the Checkpoint SL 7 AXS Gen 3 is your go-to. This gravel bike is engineered with IsoSpeed technology to smooth out rough terrain, Gravel Endurance geometry for comfort on extended rides, plenty of gear mounts, and an upgraded drivetrain for smooth shifting, all while keeping weight low with carbon wheels.
Why would you love it?
If you're searching for a bike designed for long-distance adventures, the Checkpoint SL 7 AXS Gen 3 is your go-to. This gravel bike is engineered with IsoSpeed technology to smooth out rough terrain, Gravel Endurance geometry for comfort on extended rides, plenty of gear mounts, and an upgraded drivetrain for smooth shifting, all while keeping weight low with carbon wheels.
The Walkthrough
IsoSpeed comfort tech
IsoSpeed comfort technology absorbs potholes and road bumps, reducing fatigue and allowing you to ride longer and stronger with ease.
New Gravel Endurance geometry
The updated Gravel Endurance geometry offers a relaxed, upright riding position, ensuring comfort even on your longest and most strenuous adventures.
Suspension fork and dropper post compatible
The Checkpoint SL now supports dropper posts and suspension forks with up to 40 mm of travel, allowing you to tackle rougher gravel and steeper descents with greater confidence.
Blendr Compatible Stem
With Bontrager's Blendr stem technology, you can easily attach your accessories directly to the stem, achieving a streamlined appearance and optimal user convenience.
Tubeless Ready Rims
Bontrager TLR (Tubeless Ready) for Road represents the pioneering complete tubeless solution for road wheels. By choosing TLR tubeless technology, you gain the freedom to ride with reduced tire pressure, enhancing grip and comfort, all while eliminating concerns about pinch flats.
Gravel Specific Tyre
The bigger, specialized gravel tires offer improved grip and enhanced balance. when you're cycling on gravel or dirt paths.
500 Series OCLV
The 500 Series OCLV achieves an exceptional harmony of lightweight, robustness, and rigidity, making it a great match for the innovative frame technologies that characterize Trek frames.
Flat Mount Disc Brakes
The innovative flat-mount disc brakes represent a sleek, compact, and tidy departure from conventional disc brakes. They deliver exceptional performance and formidable stopping ability, even in challenging conditions.
*Please note – spec applies to all sizes unless listed separately
- Frame
- 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
- Fork
- Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
- Weight
- ML - 8.43 kg / 18.59 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Battery
- SRAM AXS battery pack (with charger)
- Shifter
- SRAM Rival eTap AXS, 12-speed
- Front derailleur
- SRAM Rival D1 AXS, braze-on
- Rear derailleur
- SRAM Rival AXS
- *Crank
- Size: XS, S
SRAM Rival AXS w/ power meter, 48/35, DUB, 165 mm lengthSize: M
SRAM Rival AXS w/ power meter, 48/35, DUB, 170 mm lengthSize: ML, L
SRAM Rival AXS w/ power meter, 48/35, DUB, 172.5 mm lengthSize: XL
SRAM Rival AXS Power Meter, 48/35, DUB, 175 mm length - Bottom bracket
- SRAM DUB, T47 threaded, internal bearing
- Cassette
- SRAM XG-1250, 10-36, 12-speed
- Max. chainring size
- 1x: 54T, 2x: 56/43
- Wheel front
- Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100x12 mm thru axle
- Wheel rear
- Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru-axle
- Skewer front
- Bontrager Switch chamfered thru axle
- Skewer rear
- Bontrager Switch chamfered thru axle, removable lever
- Tyre
- Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
- Rim strip
- Bontrager TLR
- Max tyre size
- 32 mm (as measured, see manual for details)
- *Saddle
- Size: XS, S
Bontrager Aeolus Comp, steel rails, 155 mm widthSize: M, ML, L, XL
Bontrager Aeolus Comp, steel rails, 145 mm width - *Seatpost
- Size: XS, S, M, XL
Madone aero carbon seat post, 0 mm offset, short lengthSize: ML, L
Madone aero carbon seat post, 0 mm offset, long length - *Handlebar
- Size: XS
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop widthSize: S, M
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop widthSize: ML, L
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop widthSize: XL
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width - *Stem
- Size: XS
Trek RCS Pro, -7-degree, 80 mm lengthSize: S, M
Trek RCS Pro, -7-degree, 90 mm lengthSize: ML, L
Trek RCS Pro, -7-degree, 100 mm lengthSize: XL
Trek RCS Pro, -7-degree, 110 mm length - Brake rotor
- SRAM Paceline, rounded, CentreLock, 160 mm
- Rotor size
- Max brake rotor sizes: 180 mm front, 160 mm rear
Size
XS
S
M
ML
L
XL
Rider Height
143 - 158 cm
4'8" - 5'2"
158 - 162 cm
5'2" - 5'4"
162 - 173 cm
5'4" - 5'8"
173 - 179 cm
5'8" - 5'10"
179 - 188 cm
5'10" - 6'2"
188 - 213 cm
6'2" - 7'0"
Inseam
67 - 74 cm
26" - 29"
74 - 76 cm
29" - 30"
76 - 81 cm
30" - 32"
81 - 84 cm
32" - 33"
84 - 88 cm
33" - 35"
88 - 100 cm
35" - 39"
Geometry
All measurements provided in cm unless otherwise stated.
| Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 700c | 44.5 | 74.0° | 72.7° | 8.6 | 71.0° | 53.6 | 7.6 | 43.0 | 4.9 | 7.1 | 101.3 | 74.6 | 38.0 | 53.5 |
| S | 700c | 48.0 | 74.0° | 73.0° | 10.6 | 71.4° | 54.7 | 7.6 | 43.0 | 4.9 | 6.8 | 102.2 | 77.2 | 38.6 | 55.6 |
| M | 700c | 50.5 | 73.3° | 72.8° | 13.0 | 71.6° | 56.6 | 7.6 | 43.0 | 4.9 | 6.8 | 103.4 | 79.9 | 39.1 | 57.9 |
| ML | 700c | 53.0 | 73.3° | 72.8° | 15.1 | 72.0° | 57.8 | 7.6 | 43.0 | 4.9 | 6.4 | 104.2 | 81.3 | 39.7 | 60.1 |
| L | 700c | 55.0 | 73.3° | 72.8° | 17.1 | 72.1° | 58.9 | 7.6 | 43.0 | 4.9 | 6.4 | 105.2 | 83.7 | 40.2 | 62.0 |
| XL | 700c | 57.5 | 73.3° | 72.8° | 19.1 | 72.4° | 60.1 | 7.6 | 43.0 | 4.9 | 6.2 | 106.2 | 86.1 | 40.8 | 64.0 |
