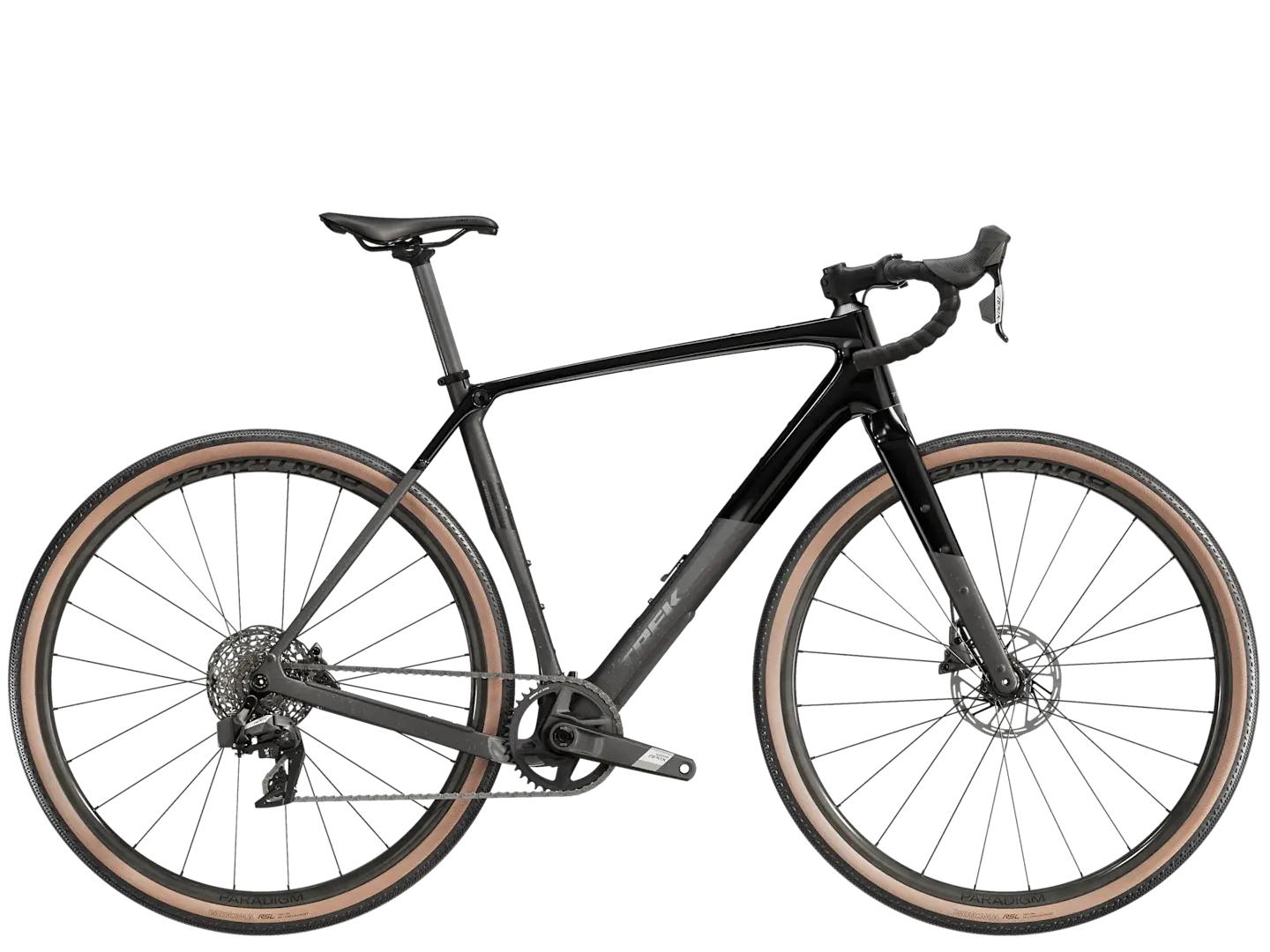

Checkpoint SL 5 AXS Gen 3
The Checkpoint SL 5 AXS Gen 3 is a carbon gravel bike ready to take you far and wide. Its lightweight carbon frame offers a comfort-oriented geometry with clearance for large 50 mm tires and multiple frame and fork mounts for carrying gear.The IsoSpeed technology absorbs road vibrations.
- 11,757.60
14,697.00- 11,757.60
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
+
+
Compare color
Overview
Features
Specs
Sizing
Geometry
It's so perfect
You're after a carbon gravel bike built for adventure, with the flexibility to upgrade components as you go. The gravel-smoothing IsoSpeed technology helps absorb the roughness of the terrain, allowing you to ride comfortably and longer. With multiple mounts for gear and hydration, this bike is perfect for exploring off the beaten path while providing room for future upgrades.
The technology you get
The bike features a 500 Series OCLV Carbon frame paired with a carbon fork, offering both lightweight performance and durability. It includes internal downtube storage, multiple frame and fork mounts, and accommodates up to 50 mm tyres (measured). The 12-speed SRAM Apex XPLR AXS wireless drivetrain ensures precise shifting, while hydraulic disc brakes deliver reliable stopping power. It also comes with a carbon seat post and Tubeless Ready Bontrager Paradigm SL wheels with 42 mm tyres for added grip and comfort on gravel terrain.
Generally
When you're set to embark on an adventure down unfamiliar paths, the Checkpoint SL 5 AXS Gen 3 is your go-to choice. This gravel bike offers the perfect mix of affordability and performance, thanks to its dependable components and a frame designed with comfort-focused, road-smoothing technology for long and enjoyable rides.
Why would you love it?
When you're set to embark on an adventure down unfamiliar paths, the Checkpoint SL 5 AXS Gen 3 is your go-to choice. This gravel bike offers the perfect mix of affordability and performance, thanks to its dependable components and a frame designed with comfort-focused, road-smoothing technology for long and enjoyable rides.
The Walkthrough
IsoSpeed comfort tech
IsoSpeed comfort technology absorbs potholes and road bumps, reducing fatigue and allowing you to ride longer and stronger with ease.
New Gravel Endurance geometry
The updated Gravel Endurance geometry offers a relaxed, upright riding position, ensuring comfort even on your longest and most strenuous adventures.
Bigger in-frame storage
Expanded internal frame storage and a wider access door make it easy to carry all of your flat repair supplies on the bike, so you're ready for any problems on the gravel road.
Blendr Compatible Stem
With Bontrager's Blendr stem technology, you can easily attach your accessories directly to the stem, achieving a streamlined appearance and optimal user convenience.
Tubeless Ready Rims
Bontrager TLR (Tubeless Ready) for Road represents the pioneering complete tubeless solution for road wheels. By choosing TLR tubeless technology, you gain the freedom to ride with reduced tire pressure, enhancing grip and comfort, all while eliminating concerns about pinch flats.
Gravel Specific Tyre
The bigger, specialized gravel tires offer improved grip and enhanced balance. when you're cycling on gravel or dirt paths.
500 Series OCLV
The 500 Series OCLV achieves an exceptional harmony of lightweight, robustness, and rigidity, making it a great match for the innovative frame technologies that characterize Trek frames.
Flat Mount Disc Brakes
The innovative flat-mount disc brakes represent a sleek, compact, and tidy departure from conventional disc brakes. They deliver exceptional performance and formidable stopping ability, even in challenging conditions.
*Please note – spec applies to all sizes unless listed separately
- Frame
- 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
- Fork
- Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
- Weight
- ML – 9.50 kg/20.95 lb (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Battery
- SRAM AXS battery pack (with charger)
- Rear derailleur
- SRAM Apex XPLR eTap AXS, 44T max cog
- *Crank
- Size: XS, S
SRAM Apex 1, 40T, DUB Wide, 165 mm lengthSize: M
SRAM Apex 1, 40T, DUB Wide, 170 mm lengthSize: ML, L
SRAM Apex 1, 40T, DUB Wide, 172.5 mm lengthSize: XL
SRAM Apex 1, 40T, DUB Wide, 175 mm length - Bottom bracket
- SRAM DUB Wide, T47 threaded, internal bearing
- Cassette
- SRAM XPLR PG-1231, 11-44, 12-speed
- Chain
- SRAM Apex, 12-speed
- Max. chainring size
- 1x:44 2x: 46/30
- Wheel front
- Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle
- Hub front
- Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
- Skewer front
- Bontrager Switch chamfered thru axle
- Hub rear
- Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
- Skewer rear
- Bontrager Switch chamfered thru axle, removable lever
- *Rim
- Size: XS, S, M, ML, L, XL
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valveSize: XS, S, M, ML, L, XL
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve - Spokes
- 14 g stainless steel, black
- Tyre
- Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm
- Tyre part
- Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
- Bontrager TLR
- Max tyre size
- 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
- *Saddle
- Size: XS, S
Verse Short Comp, steel rails, 155 mm widthSize: M, ML, L, XL
Verse Short Comp, steel rails, 145 mm width - Seatpost
- Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
- *Handlebar
- Size: XS
Bontrager Elite Gravel, alloy, 40 cm widthSize: S, M
Bontrager Elite Gravel, alloy, 42 cm widthSize: ML, L
Bontrager Elite Gravel, alloy, 44 cm widthSize: XL
Bontrager Elite Gravel, alloy, 46 cm width - Handlebar tape
- Bontrager Supertack Perf tape
- *Stem
- Size: XS
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm lengthSize: S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm lengthSize: M, ML
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm lengthSize: L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm lengthSize: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Brake rotor
- SRAM Paceline, rounded, CentreLock, 160 mm
- Rotor size
- Max brake rotor sizes: 180 mm front and rear
Size
XS
S
M
ML
L
XL
Rider Height
143 - 158 cm
4'8" - 5'2"
158 - 162 cm
5'2" - 5'4"
162 - 173 cm
5'4" - 5'8"
173 - 179 cm
5'8" - 5'10"
179 - 188 cm
5'10" - 6'2"
188 - 213 cm
6'2" - 7'0"
Inseam
67 - 74 cm
26" - 29"
74 - 76 cm
29" - 30"
76 - 81 cm
30" - 32"
81 - 84 cm
32" - 33"
84 - 88 cm
33" - 35"
88 - 100 cm
35" - 39"
