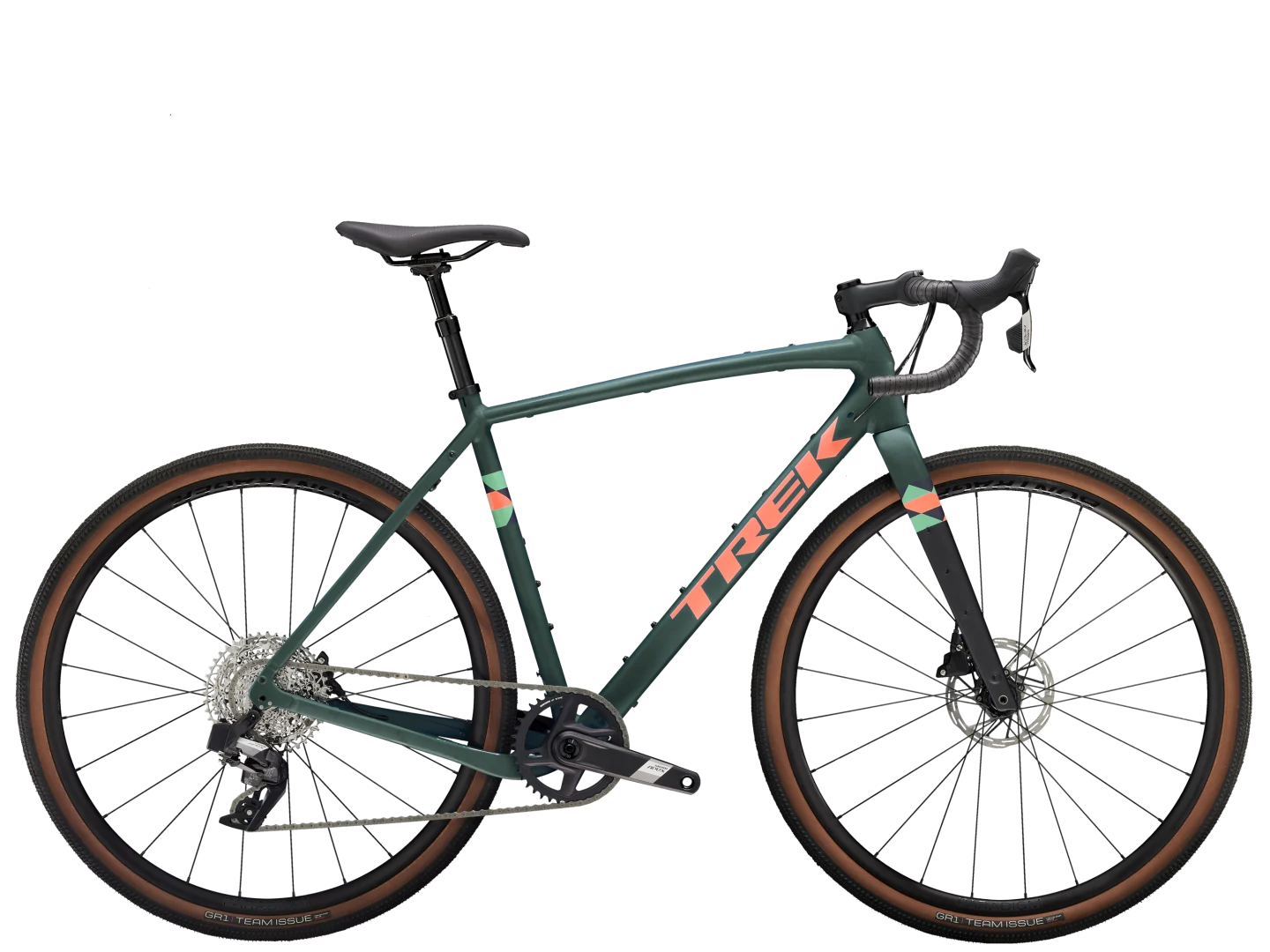

Checkpoint ALR 5 AXS
The Checkpoint ALR 5 AXS is a powerful road bike with a 300-series alpha aluminum frame. This bike has a variety of features, including fast and stable evolving geometry. with a 1x12-speed SRAM Apex AXS drivetrain, electronics shifting, and long-lasting, premium components. plus many mounts for amazing journeys by bike.
- 12,489.00
- 12,489.00
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
Limited-Time Offers, End in:
151D
8H
23M
0S
Compare color
Overview
Features
Specs
Sizing
Geometry
It's perfect for you
When it comes to your gravel adventures, you value top performance without compromising. You want to get the most out of your money by investing in quality, versatility, and durability.
The technology you get
This bike is made from strong 300-series aluminum and has progressive geometry that ensures balance at high speeds and efficiency on difficult ascents. Its design includes hidden cables to avoid carry disruption, as well as rack, mudguard, and integrated frame bag mounts. The 1x12 SRAM Apex AXS electronic drivetrain provides seamless shifts for hill climbing and dealing with rough gravel terrain. Also, this bike features hydraulic disc brakes that provide accurate stopping power in any environment, tubeless-ready rims, and wide 700x40c gravel tires for added stability and traction.
Generally
If you're looking for the ideal combination of an electronic drivetrain, premium parts, a durable alloy frame, and an extensive range of features, opt for the Checkpoint ALR 5 AXS. This bike's additional tire clearance and adaptability let you confidently go on bigger and more exciting trips.
Why you'll love it
If you're looking for the ideal combination of an electronic drivetrain, premium parts, a durable alloy frame, and an extensive range of features, opt for the Checkpoint ALR 5 AXS. This bike's additional tire clearance and adaptability let you confidently go on bigger and more exciting trips.
The Walkthrough
New progressive geometry
Experience fast and light control that keeps control and balance, especially during difficult drops, with the Checkpoint ALR 5.
Tyre clearance
High clearance lets you safely handle bigger gravel and varied terrain by putting heavier tires, such as 700x45 mm or 27.5x2.1".
Tons of mounts
You can easily carry your water bottle and gear thanks to the integral frame bag and mudguard mounts for seamless convenience.
300 Series Alpha Aluminium
Trek's premium aluminum is hydraulically shaped into size-specific tubes, resulting in an amazing balance of lightweight, rigidity, and strength that complements Trek's advanced frame technology.
Gravel Specific Tyre
The bigger, specialized gravel tires offer improved grip and enhanced balance. when you're cycling on gravel or dirt paths.
Flat Mount Disc Brakes
The innovative flat-mount disc brakes represent a sleek, compact, and tidy departure from conventional disc brakes. They deliver exceptional performance and formidable stopping ability, even in challenging conditions.
Tubeless Ready Rims
Bontrager TLR (Tubeless Ready) for Road represents the pioneering complete tubeless solution for road wheels. By choosing TLR tubeless technology, you gain the freedom to ride with reduced tire pressure, enhancing grip and comfort, all while eliminating concerns about pinch flats.
Blendr Compatible Stem
With Bontrager's Blendr stem technology, you can easily attach your accessories directly to the stem, achieving a streamlined appearance and optimal user convenience.
Frameset
| Frame with Fork | 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork |
Wheels
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | See service manual |
Drivetrain
| Shifter | Size: 49, 52, 54, 56, 58, 61 SRAM Apex, 12-speed Size: 49, 52, 54, 56, 58, 61 SRAM Apex AXS, 12-speed |
|---|---|
| Rear derailleur | SRAM Apex XPLR eTap AXS, 44T max cog |
| *Crank | Size: 49 SRAM Apex 1, 40T, DUB Wide, 165 mm length Size: 52 SRAM Apex 1, 40T, DUB Wide, 170 mm length Size: 54, 56 SRAM Apex 1, 40T, DUB Wide, 172.5 mm length Size: 58, 61 SRAM Apex 1, 40T, DUB Wide, 175 mm length |
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XPLR PG-1231, 11-44, 12-speed |
| Chain | SRAM Apex, 12-speed |
| Max. chainring size | 1x: 44T (SRAM), 50T (Shimano), 2x: 50/34 |
Components
| *Saddle | Size: 49, 52 Bontrager Verse Comp, steel rails, 155 mm width Size: 54, 56, 58, 61 Bontrager Verse Comp, steel rails, 145 mm width |
|---|---|
| Seatpost | Easton EA70 AX, 27.2 mm, 0 mm offset, 50 mm travel |
| *Handlebar | Size: 49 Bontrager Elite Gravel, 38 cm width Size: 52 Bontrager Elite Gravel, 40 cm width Size: 54, 56 Bontrager Elite Gravel, 42 cm width Size: 58, 61 Bontrager Elite Gravel, 44 cm width |
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
| Brake | SRAM Apex hydraulic disc, flat mount |
| Brake rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
Weight
| Weight | 56 - 9.86 kg / 21.74 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
All measurements provided in cm unless otherwise stated.

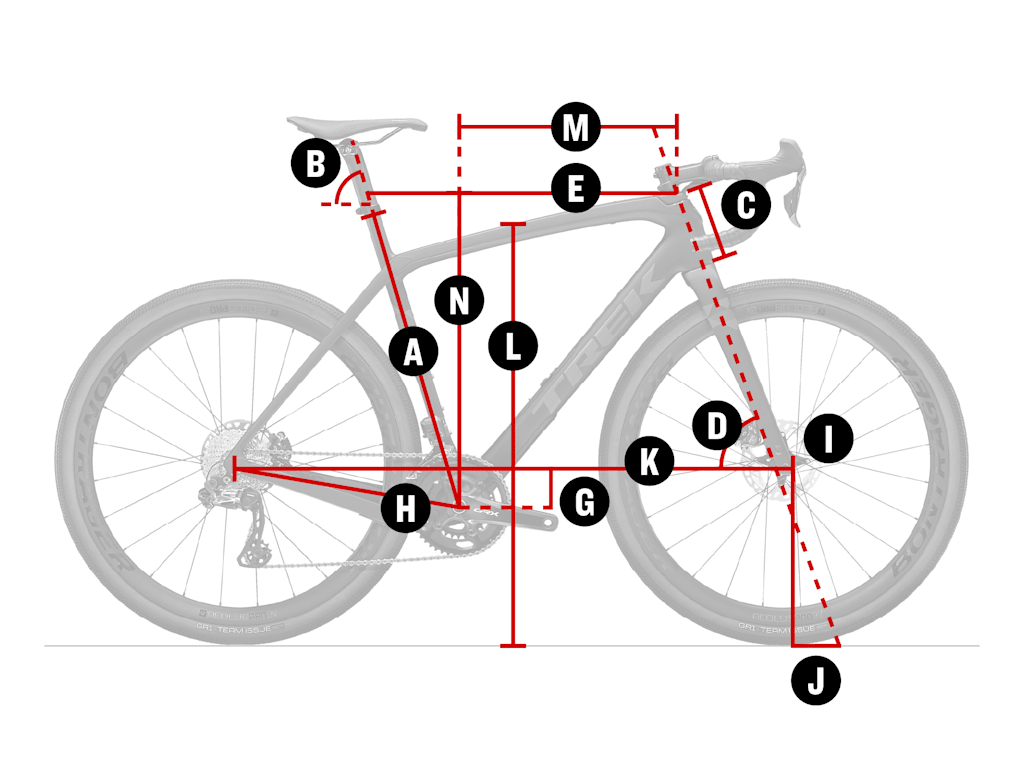

| Frame size number | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Stem length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 cm | 700c | 49.0 | 74.1° | 9.0 | 71.2° | 54.1 | 7.8 | 43.5 | 4.5 | 7.4 | 102.5 | 73.5 | 39.3 | 53.8 | 70.0 |
| 52 cm | 700c | 52.0 | 73.7° | 10.5 | 71.6° | 55.5 | 7.8 | 43.5 | 4.5 | 7.1 | 103.3 | 76.5 | 39.9 | 55.3 | 80.0 |
| 54 cm | 700c | 54.0 | 73.2° | 12.5 | 71.8° | 57.0 | 7.6 | 43.5 | 4.5 | 7.0 | 104.1 | 78.9 | 40.3 | 57.1 | 80.0 |
| 56 cm | 700c | 56.0 | 72.8° | 14.5 | 72.2° | 58.4 | 7.6 | 43.5 | 4.5 | 6.7 | 104.8 | 80.9 | 40.7 | 59.2 | 90.0 |
| 58 cm | 700c | 58.0 | 72.5° | 16.5 | 72.3° | 59.7 | 7.4 | 43.5 | 4.5 | 6.6 | 105.8 | 82.9 | 41.1 | 60.9 | 90.0 |
| 61 cm | 700c | 61.0 | 72.1° | 19.5 | 72.6° | 61.7 | 7.4 | 43.5 | 4.5 | 6.5 | 107.0 | 85.9 | 41.7 | 63.9 | 100.0 |
