CheckOUT SL 5
The CheckOUT SL 5 is a multi-surface adventure bike equipped with a 500 Series OCLV carbon frame, RockShox SIDluxe IsoStrut rear shock, and RockShox Rudy XL front fork to absorb bumps on rough roads and trails. It features Bontrager Paradigm Comp wheels, a Shimano GRX 12-speed drivetrain, and a TranzX dropper seatpost. The drop bar handlebar offers multiple hand positions for superior comfort and control, with clearance for tires up to 56 mm. Gravel Adventure geometry provides excellent stability and control, with 18 frame mounts, an integrated rear rack, and an exclusive Topo Designs frame bag to carry all your gear safely. Try it now!
- 21,260.63
25,012.50- 21,260.63
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
+
+
Overview
Features
Specs
Sizing
Geometry
CheckOUT SL 5 Bike - CheckOUT SL 5
is an adventure-ready full-suspension gravel bike for getting far, far out there. Its carbon frame delivers 55 mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60 mm of travel. It comes ready to explore with Bontrager Paradigm Comp wheels, a 12-speed Shimano GRX drivetrain and TranzX dropper post.
The Walkthrough

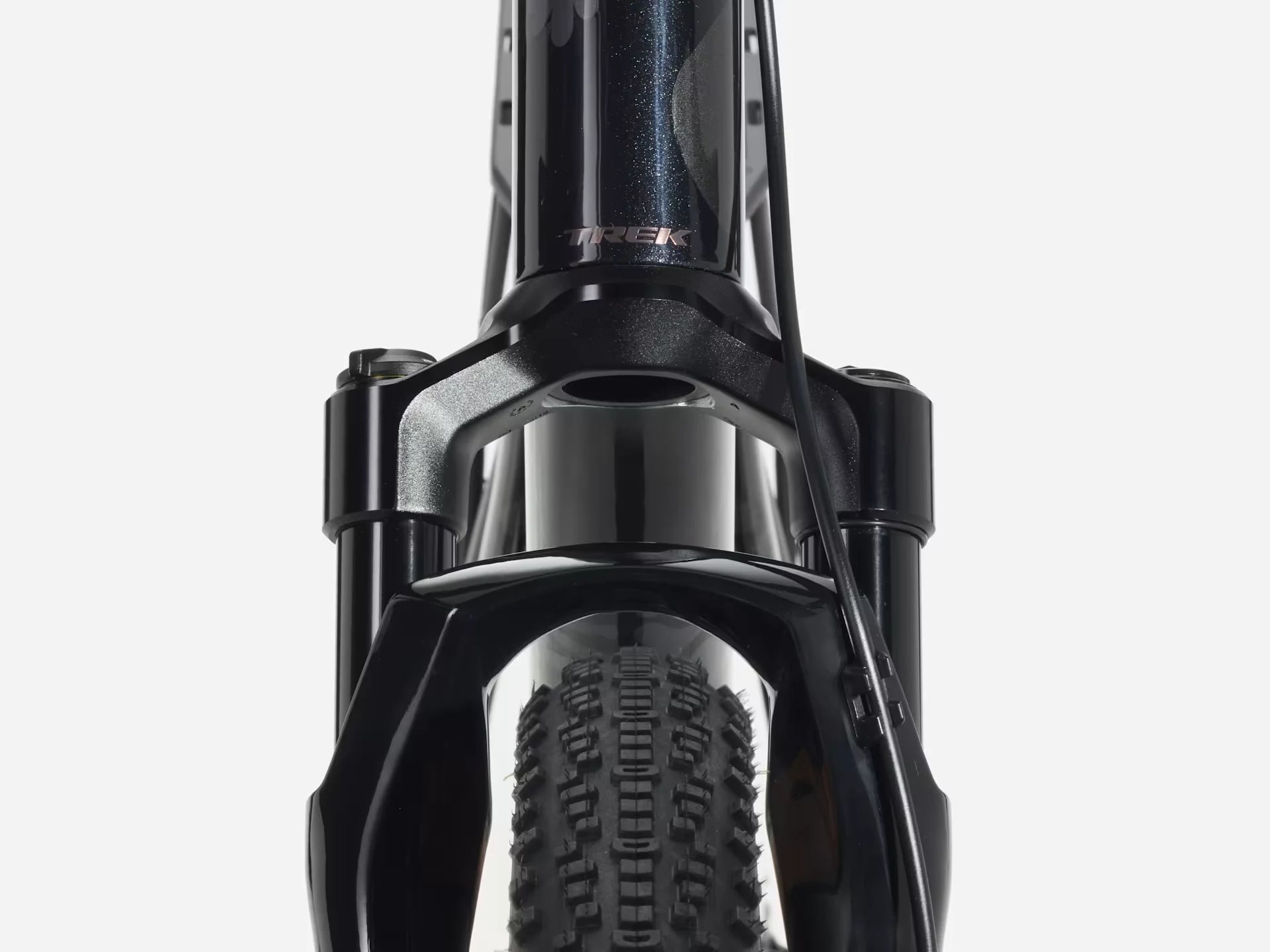

Ride it all Suspension
55 mm rear travel and a new 60 mm Rudy XL suspension fork designed in collaboration with RockShox help smooth out rough gravel roads and let you venture onto singletrack with more comfort and capability than a rigid gravel bike.

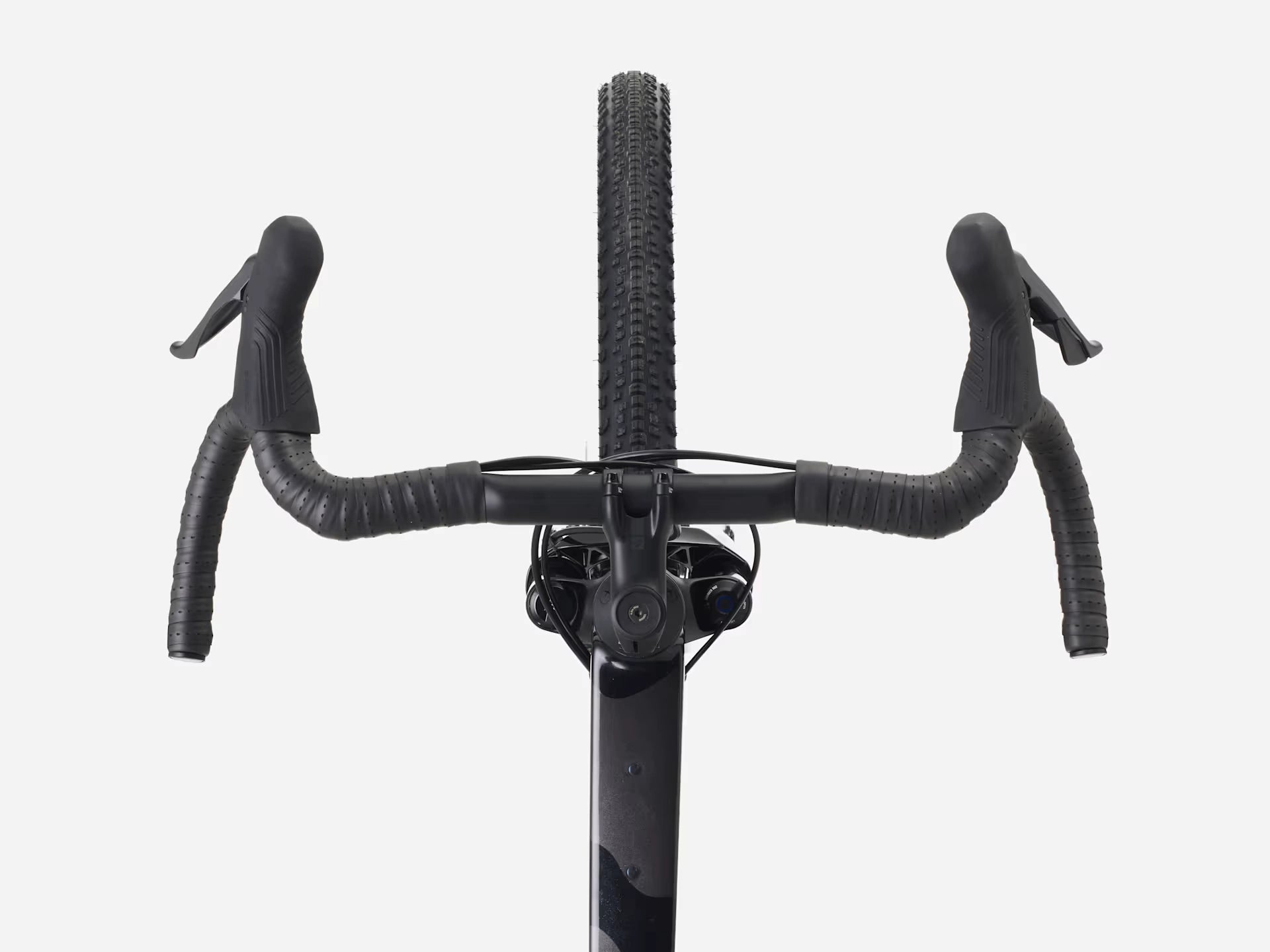

The unlimited off road drop bar
A new GR CheckOUT gravel drop bar has multiple hand positionings for more comfort and efficiency wherever your ride takes you. Settle into narrow tops for more speed on champagne gravel or reach for the extra-wide drops for total control on the rough stuff.
The science of full Suspension gravel
The CheckOUT's full-suspension set-up is proven to decrease fatigue and increase comfort and control when compared to its rigid counterparts, leading to a 7.3% reduction in rider ventilation, a 41.5% reduction in fatiguing vibrational energy and 23% less steering variation.
Big Ol’ Tyre Clearance
Room for tyres up to 56 mm/2.2″ wide lets you tackle the rough stuff with confidence.
Geometry designed to keep you in control
Get more stability and comfort on multi-surface, multi-day adventures with an all-new Gravel Adventure geometry designed with a longer reach and higher stack.

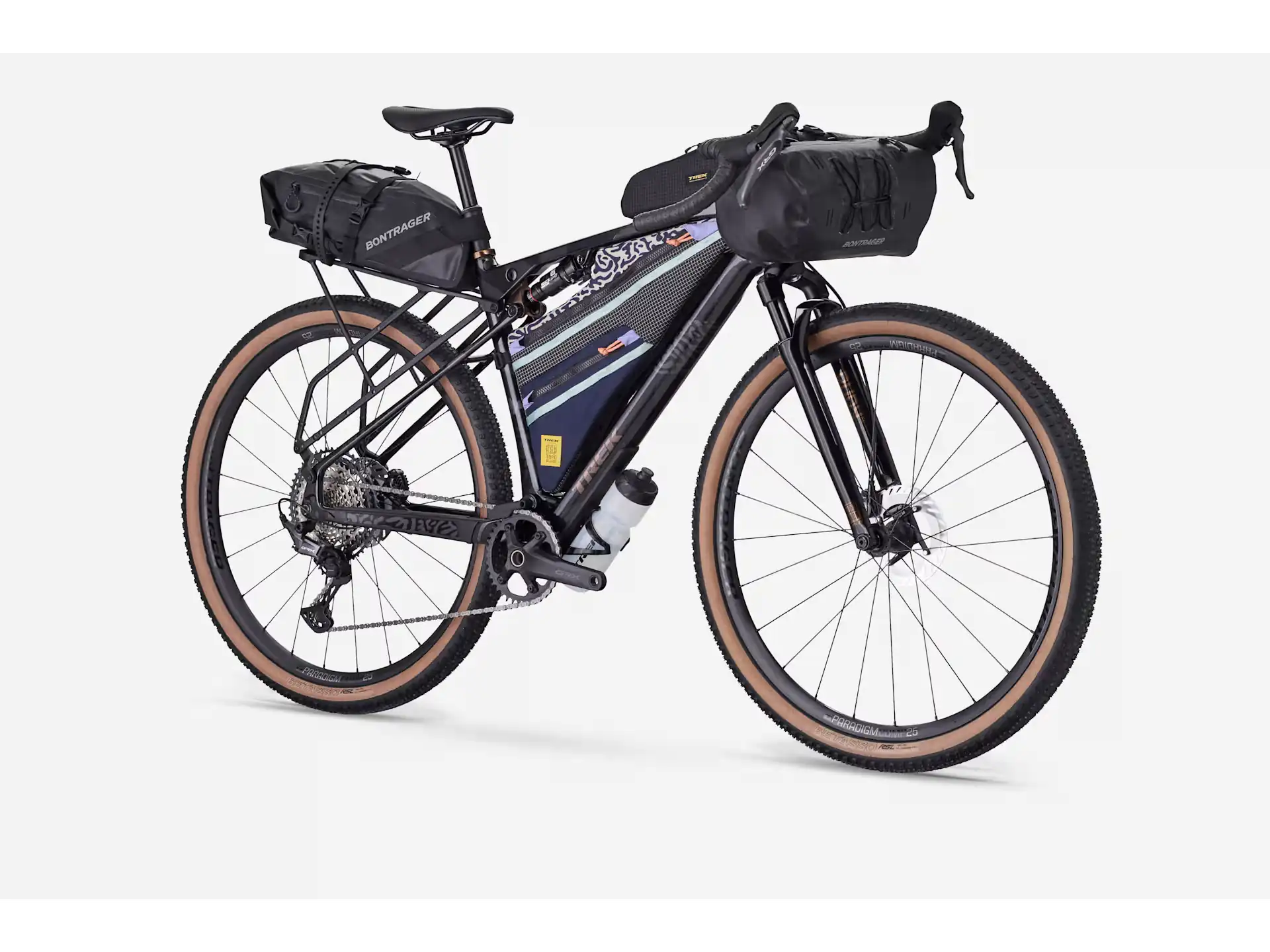

Built for bikepacking
Haul it all with 18* frame mounts, an integrated rear rack that works with the bike's suspension and dropper post, and Adjustable Multi-Mounts that lets you position your bottles and gear exactly where you want 'em in the frame.
Exclusive topo frame bag
Carry your stash in style with a Topo Designs frame bag that’s the perfect fit for the all-new CheckOUT.
Trail - Tested Carbon Frame
Pack heavy and still ride light with a 500 Series OCLV Carbon frame tested to robust mountain bike standards.
*Please note - spec applies to all sizes unless listed separately
- Frame
- 500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12mm chamfered thru axle, 55mm travel
- Fork
- RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 60mm travel
- Shock
- RockShox SIDluxe Ultimate 3P, 170mmx27.5mm
- Weight
- ML - 11.97 kg / 26.39 lbs (with TLR sealant, no tubes, excluding rear rack)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Shifter
- Shimano GRX RX820, 12 speed
- Rear derailleur
- Shimano GRX RX822, 51T max cog
- *Crank
- Size: S
Shimano GRX RX610, 38T, 165mm lengthSize: M, ML
Shimano GRX RX610, 38T, 170mm lengthSize: L, XL
Shimano GRX RX610, 38T, 172.5mm length - Bottom bracket
- Cassette
- Shimano XT M8200, 10-51, 12 speed
- Chain
- Max chainring size
- 1x: 38T
- Wheel front
- Wheel rear
- Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano Micro Spline freehub, 142x12 thru axle
- Skewer rear
- Tire
- Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x55mm
- Tire part
- Bontrager TLR sealant, 6oz
- Rim strip
- Max tire size
- 56mm/2.20" (as measured, see manual for details)
- Saddle
- Seatpost
- TranzX JD-YSI36, 100mm travel, internal routing, 31.6mm, 328mm length
- *Handlebar
- Handlebar tape
- Bontrager Supertack Perf tape
- *Stem
- Size: S, M
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length - Brake rotor
- Rotor size
- Max brake rotor sizes: 180mm front & rear
- Cargo rack
- Bracket
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
Size
S (49cm)
M (52-54cm)
ML (56cm)
L (58cm)
XL (61cm)
Rider Height
158 - 164 cm
5'2" - 5'5"
164 - 177 cm
5'5" - 5'10"
177 - 188 cm
5'10" - 6'2"
188 - 194 cm
6'2" - 6'4"
194 - 203 cm
6'4" - 6'8"
Inseam
74 - 77 cm
29" - 30"
77 - 83 cm
30" - 33"
83 - 88 cm
33" - 35"
88 - 91 cm
35" - 36"
91 - 95 cm
36" - 37"
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 700c | 44.0 | 74.6° | 9.4 | 68.8° | 56.4 | 7.0 | 44.2 | 4.5 | 9.2 | 108.1 | 77.2 | 39.5 | 58.0 |
| M | 700c | 47.0 | 74.2° | 13.3 | 69.0° | 58.9 | 7.0 | 44.2 | 4.5 | 9.1 | 110.5 | 80.4 | 40.7 | 61.7 |
| ML | 700c | 52.0 | 73.7° | 14.9 | 69.4° | 59.7 | 7.0 | 44.2 | 4.5 | 8.8 | 111.7 | 83.8 | 41.7 | 63.4 |
| L | 700c | 54.0 | 73.0° | 17.0 | 69.5° | 61.3 | 6.8 | 44.2 | 4.5 | 8.8 | 113.5 | 84.6 | 42.7 | 65.2 |
| XL | 700c | 56.0 | 72.6° | 19.3 | 69.4° | 62.8 | 6.8 | 44.2 | 4.5 | 8.8 | 115.0 | 85.2 | 43.5 | 67.3 |
