Marlin 6 Gen 3 - 2025
The Marlin 6 is a great option if you want to boost your trial skills. Its upgraded suspension fork smoothes out rocky tracks, and the more flexible frame geometry makes it simpler to manage on descents. This versatile bike's in-built rack and kickstand attachments make personalizing it simple.
- 3,091.20
3,864.00- 3,091.20
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
Limited-Time Offers, End in:
151D
8H
23M
0S
Compare color
Overview
Features
Specs
Sizing
Geometry
It’s so perfect for you
You're searching for a trail bike that can be used for commuting to work or school, but is also properly adjusted to increase your confidence on dirt tracks.
The technology you get
You'll find a lightweight aluminum frame with contemporary trail riding geometry and internal routing for protected cables, maintaining a sleek appearance. Also featuring a 100mm RockShox Judy front suspension fork to absorb trail bumps and rocks, 10-speed seamless Shimano CUES shifting, and powerful hydraulic disc brakes for stopping power.
Generally
The Marlin 6 is a perfect trail bike for cyclists who want to push their abilities on dirt trails and still have the flexibility to continue riding rough terrain.
Why you’ll love it!
The Marlin 6 is a perfect trail bike for cyclists who want to push their abilities on dirt trails and still have the flexibility to continue riding rough terrain.
The Walkthrough
Top curved tube
On smaller bikes, the bike frame comes with a lower tube towards the seat post, and this feature enables short riders to align their bikes well. On bikes larger than M, the frame comes with a regular straight tube because tall people don't have the same problems as shorts.
Shimano CUES
In response to rider demand for reliable drivetrain performance, Shimano CUES introduces a fresh standard for flexibility and toughness throughout various electric and standard bikes. CUES incorporates Shimano's latest LINKGLIDE drivetrain technology, CUES extends the life of parts that are prone to wear, like chains, cassettes, and chainrings.
Shimano LINKGLIDE
The LINKGLIDE technology has been carefully developed to provide outstanding durability and smooth, accurate shifting, guaranteeing the best cycling experience. It is only compatible with Shimano CUES drivetrains and sets the standards for dependability and performance on the trail or road.
Rear Kickstand Mount
Chainstay mounts allow you to add a kickstand that stays out of your way, and the rear supports your bike of any size with minimal inclination or stretch.
Suspension Lockout
The Trek Marlin 6 has a professional lockout suspension that absorbs bumps in the road and lets you go biking with comfort and stability. This feature also saves more energy instead of wasting it when driving on paved roads.
Rack Mounts
The Marlin 6 bike includes many fenders and supports that allow the cyclist to carry many accessories needed during his rides, whether for riding adventures or during races.
Blender Stem
This technology helps you get a clean look and makes your bike easier and more enjoyable to use.
Internal cable routing
Internal cable routing protects small cables from outdoor elements and weather, keeping them simple and rugged.
Frameset
| *Frame | Size: XS , S Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR Size: M , ML , L , XL Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
|---|---|
| *Fork | Size: XS SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel Size: S SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel Size: M , ML , L , XL SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
| Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
Weight
| Skewer rear | 173x5mm QR |
|---|---|
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
| *Tire | Size: XXS Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35'' Size: XS , S Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35'' Size: M , ML , L , XL , XXL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35'' |
| Max tire size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
Drivetrain
| Shifter | Shimano U6000, 10 speed |
|---|---|
| Rear derailleur | Shimano CUES U6000 GS |
| *Crank | Size: XXS , XS FSA Alpha Drive, 30T, 160mm length |
| Size: S , M , ML FSA Alpha Drive, 30T, 170mm length | |
| Size: L , XL , XXL FSA Alpha Drive, 30T, 175mm length | |
| Bottom bracket | FSA, 73mm, threaded cartridge, 122.5mm spindle |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed |
| Chain | Shimano LG500, 9/10/11 speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 34T, 2x: 36/22 |
Components
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length |
| Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length | |
| Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length | |
| *Handlebar | Size:XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: S Bontrager alloy, 31.8mm, 15mm rise, 720mm width | |
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 15mm rise, 750mm width | |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XXS , XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length |
| Size: M , ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length | |
| Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length | |
| Size: XXL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length | |
| Headset | Semi-integrated, 1-1/8'' |
| Brake rotor | Tektro, 6-bolt, 160mm |
| *Brake Set | XXS , XS , S Tektro HD-M276 hydraulic disc, short reach Size:M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc |
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
Wheels
| Weight | M - 14.50 kg / 31.97 lbs (with tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
| Size | Rider Height | Inseam |
|---|---|---|
| 2XS | 135 - 145 cm 4'5" - 4'9" | 64 - 68 cm 25" - 27" |
| XS | 145 - 155 cm 4'9" - 5'1" | 69 - 73 cm 27" - 29" |
| S | 155 - 165 cm 5'1" - 5'5" | 74 - 78 cm 29" - 31" |
| M | 165 - 176 cm 5'5" - 5'9" | 79 - 83 cm 31" - 33" |
| M/L | 173 - 180 cm 5'8" - 5'11" | 81 - 86 cm 32" - 34" |
| L | 177 - 188 cm 5'10" - 6'2" | 84 - 89 cm 33" - 35" |
| XL | 188 - 195 cm 6'2" - 6'5" | 89 - 91 cm 35" - 36" |
| 2XL | 195 - 203 cm 6'5" - 6'8" | 91 - 97 cm 36" - 38" |
All measurements provided in cm unless otherwise stated.

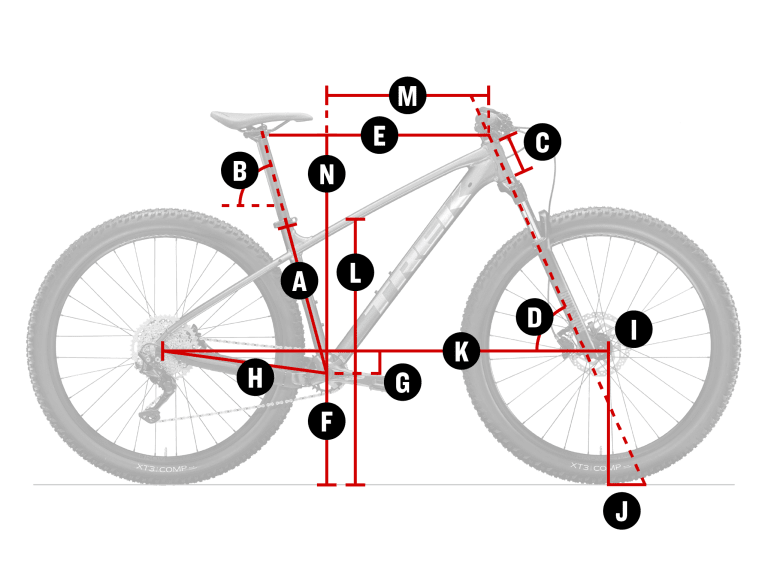

| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5" | XXS | 26" | 32.0 | 74.0° | 74.0° | 9.0 | 66.5° | 52.1 | 30.2 | 3.8 | 43.3 | 4.0 | 10.4 | 106.0 | 65.0 | 36.5 | 54.4 |
| 14.5" | XS | 27.5" | 34.0 | 73.8° | 74.0° | 9.0 | 66.5° | 55.1 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 109.2 | 65.8 | 39.0 | 56.3 |
| 15.5" | S | 27.5" | 37.0 | 73.8° | 74.0° | 10.0 | 66.5° | 57.9 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 112.1 | 69.2 | 41.5 | 57.2 |
| 17.5" | M | 29" | 42.0 | 73.4° | 74.0° | 10.5 | 66.5° | 61.5 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 116.3 | 74.7 | 44.0 | 60.9 |
| 18.5" | ML | 29" | 43.5 | 73.4° | 74.0° | 11.0 | 66.5° | 63.1 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 118.0 | 75.9 | 45.5 | 61.4 |
| 19.5" | L | 29" | 45.0 | 73.4° | 74.0° | 11.5 | 66.5° | 64.7 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 119.7 | 77.1 | 47.0 | 61.8 |
| 21.5" | XL | 29" | 50.0 | 73.4° | 74.0° | 13.5 | 66.5° | 67.8 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 123.0 | 79.1 | 49.5 | 63.7 |
| 23.0" | XXL | 29" | 54.0 | 73.4° | 74.0° | 15.0 | 66.5° | 70.7 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 126.1 | 81.6 | 52.0 | 65.1 |
