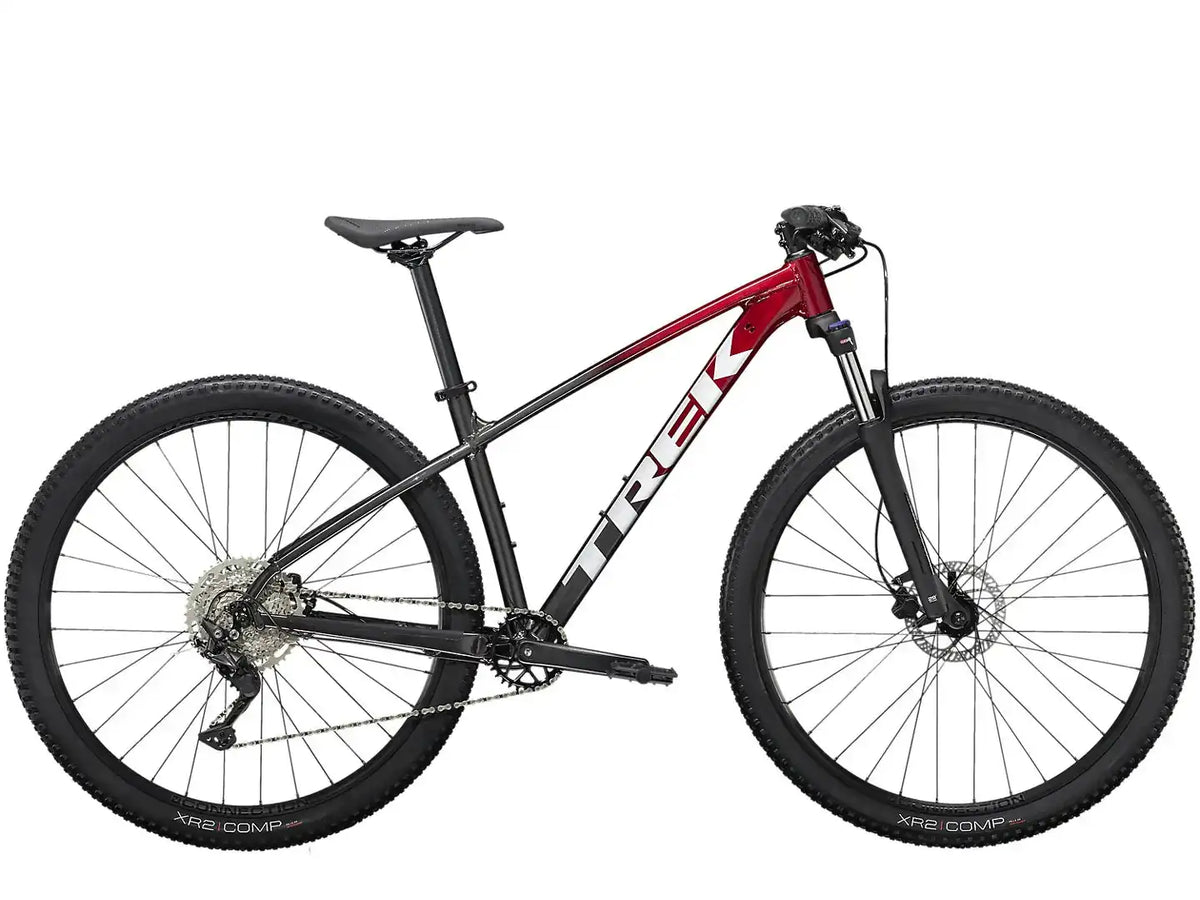

Marlin 6 Gen 2
- 3,576.50 SAR
- 3,576.50 SAR
- Unit price
- per
Split your payments into 4 with tabby. No interest, no fees!
Limited-Time Offers, End in:
151D
8H
23M
0S
Compare color
Overview
Features
Specs
Sizing
Geometry
It is so perfect
This bike is perfect for enthusiasts who prefer off-road riding on a durable mountain bike with a wide range of gears for more stability and flexibility while biking.
The technology you get
The Trek Marlin 6 bike has a lightweight aluminum frame with cable routing to protect the bike's small cables and add a sleek look. The bike also has an 1x10 Shimano drivetrain, hydraulic disc brakes, and a lockable fork suspension to prevent energy wastage on smooth roads.
Generally
This bike includes many professional features such as fork suspension, a Shimano drivetrain, durable hydraulic disc brakes, and high stopping power on rough roads, paved ones, and everywhere.
Why you will prefer it
This bike includes many professional features such as fork suspension, a Shimano drivetrain, durable hydraulic disc brakes, and high stopping power on rough roads, paved ones, and everywhere.
The Walkthrough
Top curved tube
On smaller bikes, the bike frame comes with a lower tube towards the seat post, and this feature enables short riders to align their bikes well. On bikes larger than M, the frame comes with a regular straight tube because tall people don't have the same problems as shorts.
Suitable for every cyclist
The Marlin bike comes in seven different frame sizes to suit multiple riders, and the bike size enables the rider to go with the fastest mountain bike. The bike's smallest size comes with shorter brake levers and narrower handlebars to help you get off the ground with comfort and control.
Technology and high value
The Trek Marlin 6 comes with many professional features that you can’t find in many more expensive bikes, like a distinctive frame and internal cable routing that extends the life of the internal cables and protects them from different weather conditions.
Internal cable routing
This cable protects the bike's small ones from damage and extends the life of these small internal cables. and helps the cyclist get the flexibility needed while cycling.
Fork suspension lockout
The Trek Marlin 6 has a professional fork suspension that absorbs bumps in the road and helps you go cycling with flexibility and stability. And its locking feature enables you to save energy instead of wasting it while riding the bike on paved roads.
Rear Kickstand Mount
Chainstay mounts allow you to add a kickstand that stays out of your way, and the rear supports your bike of any size with minimal inclination or stretch.
Rack Mounts
The Marlin 6 bike allows you to add more fenders, accessories, and racks with the fenders attached to the bike frame for various purposes you may need while biking.
Blender Stem
This technology helps you get a clean look and makes your bike easier and more enjoyable to use.
Frameset
| *Frame | Size: XS , S Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR |
|---|---|
| Size: M , ML , L , XL , XXL Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR | |
| *Fork | Size: XS SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
| Size: S SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel | |
| Size: M , ML , L , XL , XXL SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel | |
| Max compatible fork travel | 100mm (XS and S: 490mm axle-to-crown, M and up: 509mm axle-to-crown) |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-31, alloy, 6-bolt, 6/7/8-speed freewheel, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| *Tyre | Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20" |
| Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20" | |
| Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00" | |
| Max tyre size | Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer |
Drivetrain
| Shifter | Shimano Altus EF500, 7-speed |
|---|---|
| Front derailleur | Shimano Tourney TY300, 34.9 mm clamp, down swing, down pull |
| Rear derailleur | Shimano Tourney TY300 |
| *Crank | Size: XS , S , M Shimano Tourney TY301, 42/34/24, 170 mm length |
| Size: ML , L , XL , XXL Shimano Tourney TY301, 42/34/24, 175 mm length | |
| *Bottom bracket | Size: XS , S , M , ML , L , XL , XXL VP BC73, 73 mm, threaded cartridge |
| Size: XS , S , M , ML , L , XL , XXL Sealed cartridge, 73mm | |
| Cassette | Shimano TZ500, 14-28, 7--speed |
| Chain | KMC Z7, 7-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x/2x: 34T, 3x: 42T |
Components
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: XS , S Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Size: M Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length | |
| Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length | |
| *Handlebar | Size: XS , S Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width | |
| *Grips | Size: XS , S , M , ML , L , XL , XXL Bontrager XR Endurance Comp |
| Size: XS , S , M , ML , L , XL , XXL Bontrager XR Endurance Comp, lock-on | |
| *Stem | Size: XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
| Size: S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length | |
| Size: M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length | |
| Size: ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length | |
| Size: XL , XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length | |
| Head set | Semi-integrated, 1-1/8" |
| *Brake | Size: XS , S , M , ML , L , XL , XXL Tektro MD-M280 mechanical disc, 160 mm rotor |
| Size: XS , S , M , ML , L , XL , XXL Tektro MD-M281 mechanical disc, 160 mm rotor |
Weight
| Weight | M - 14.40 kg / 31.75 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
| Size | Rider Height | Inseam |
|---|---|---|
| XS | 145 - 155 cm 4'9" - 5'1" | 69 - 73 cm 27" - 29" |
| S | 155 - 165 cm 5'1" - 5'5" | 74 - 78 cm 29" - 31" |
| M | 165 - 173 cm 5'5" - 5'8" | 79 - 81 cm 31" - 32" |
| M/L | 173 - 180 cm 5'8" - 5'11" | 81 - 86 cm 32" - 34" |
| L | 180 - 188 cm 5'11" - 6'2" | 86 - 89 cm 34" - 35" |
| XL | 188 - 195 cm 6'2" - 6'5" | 89 - 91 cm 35" - 36" |
| 2XL | 195 - 203 cm 6'5" - 6'8" | 91 - 97 cm 36" - 38" |
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | XS | 27.5" | 34.3 | 73.5° | 73.5° | 9.0 | 69.3° | 54.4 | 29.2 | 5.8 | 43.8 | 4.2 | 8.8 | 104.9 | 65.8 | 37.6 | 56.5 |
| 15.5 | S | 27.5" | 36.8 | 73.5° | 73.5° | 9.0 | 69.3° | 55.5 | 30.2 | 4.8 | 43.8 | 4.2 | 8.8 | 106.6 | 68.6 | 38.5 | 57.4 |
| 17.5 | M | 29" | 41.9 | 71.9° | 73.0° | 9.0 | 69.5° | 60.2 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 110.0 | 74.8 | 41.8 | 60.2 |
| 18.5 | ML | 29" | 44.4 | 71.9° | 73.0° | 9.0 | 69.5° | 61.8 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 111.6 | 75.8 | 43.4 | 60.2 |
| 19.5 | L | 29" | 47.0 | 71.9° | 73.0° | 10.0 | 69.5° | 63.8 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 113.7 | 75.7 | 45.1 | 61.1 |
| 21.5 | XL | 29" | 52.1 | 71.9° | 73.0° | 12.0 | 69.5° | 65.9 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 115.9 | 76.9 | 46.6 | 63.0 |
| 23.0 | XXL | 29" | 55.9 | 71.9° | 73.0° | 12.0 | 69.5° | 67.3 | 31.1 | 5.8 | 43.8 | 4.2 | 9.3 | 117.3 | 80.4 | 48.0 | 63.0 |
