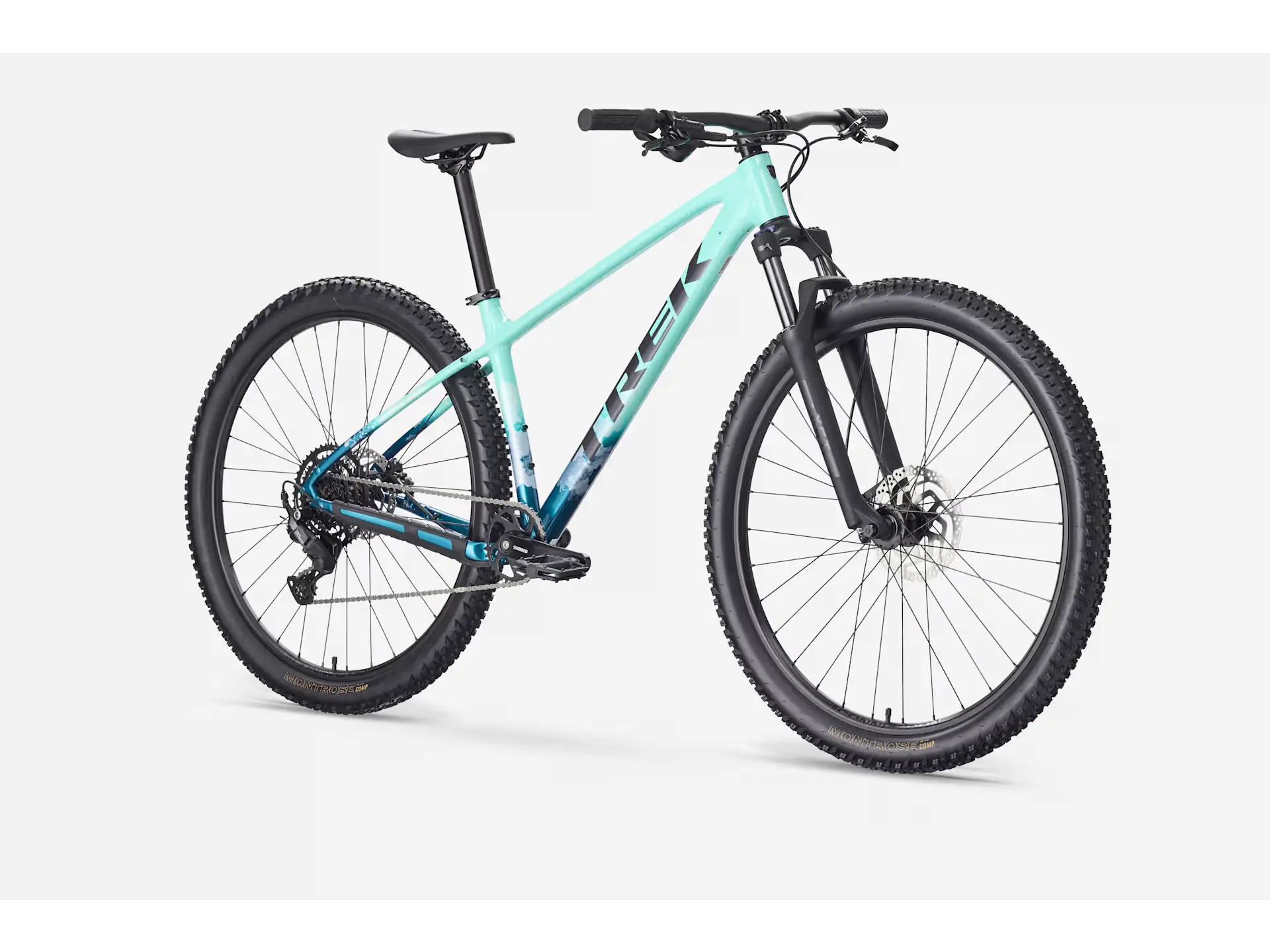

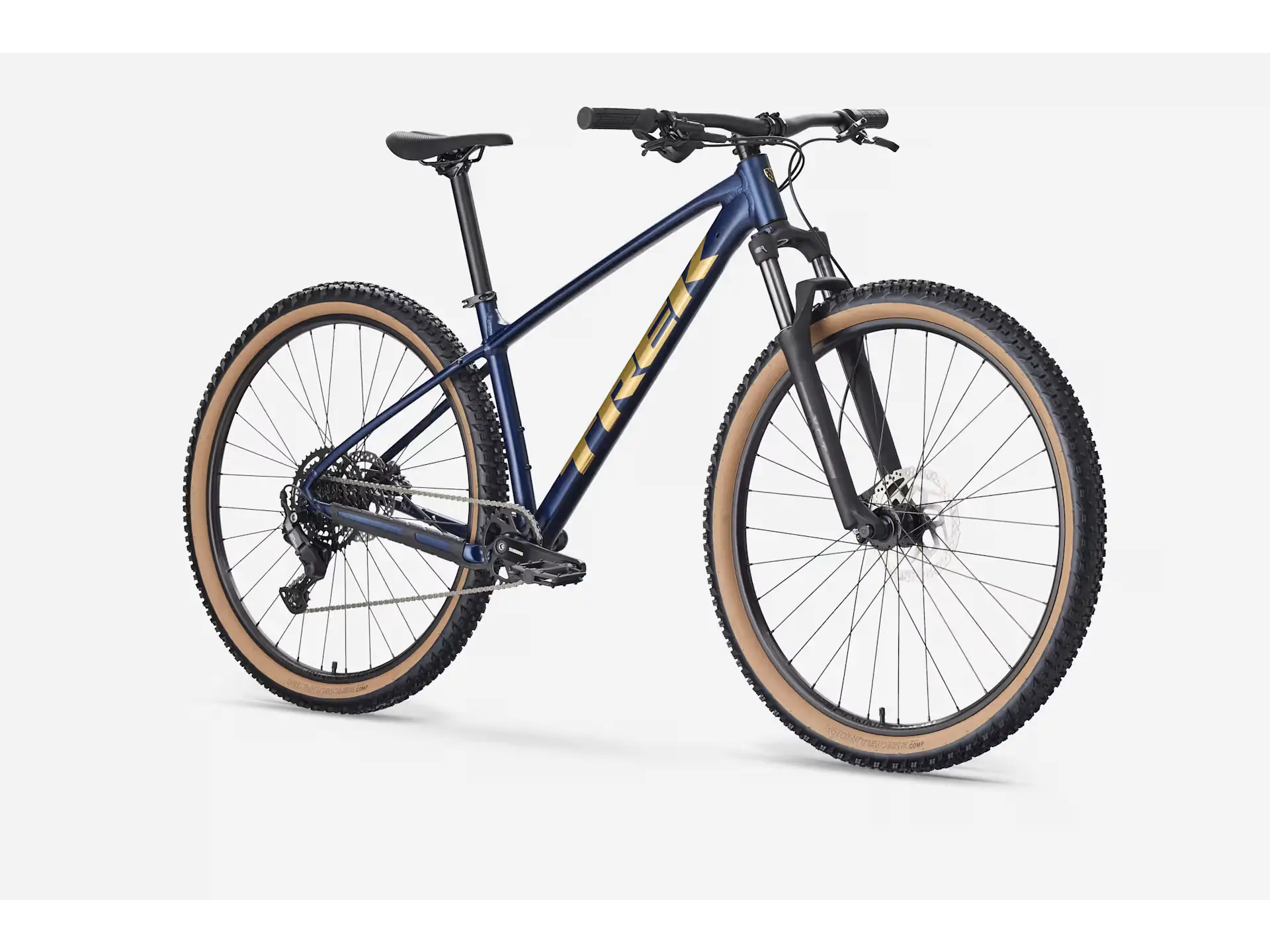

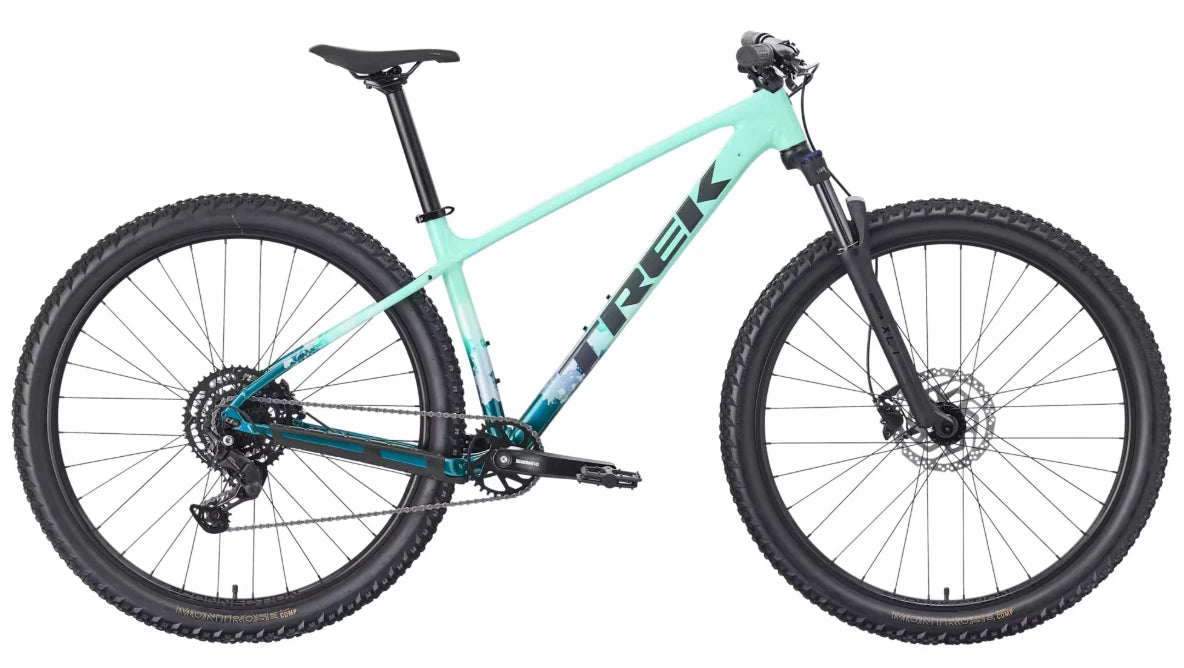

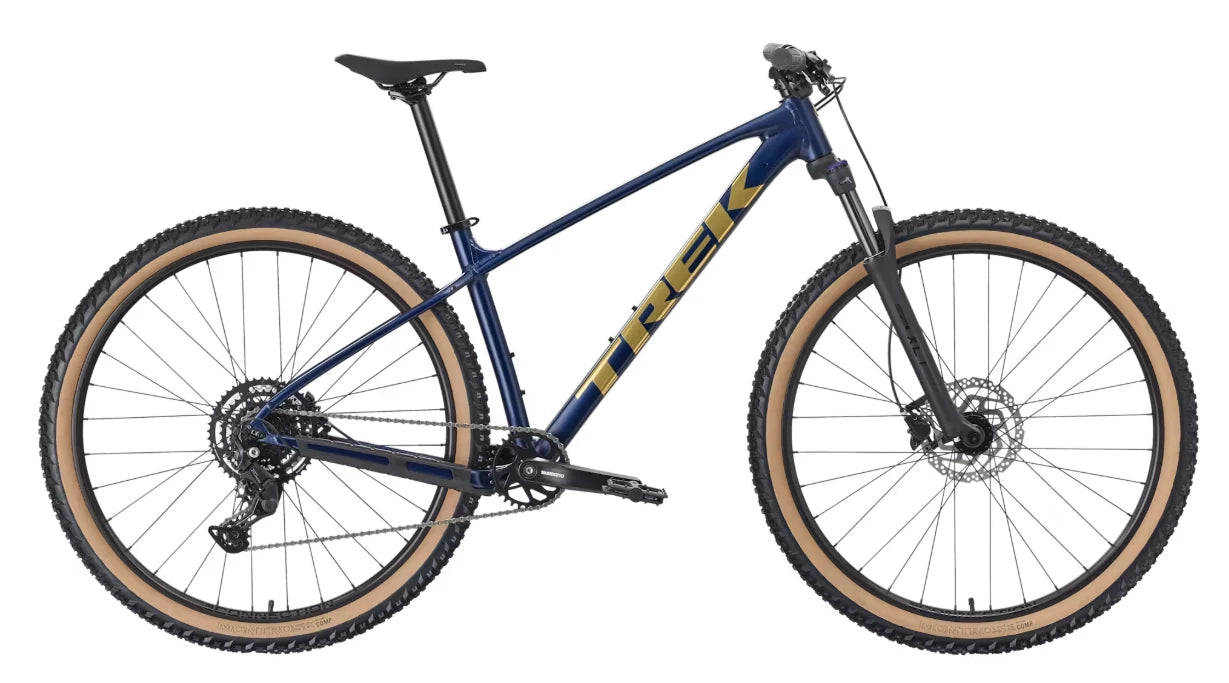

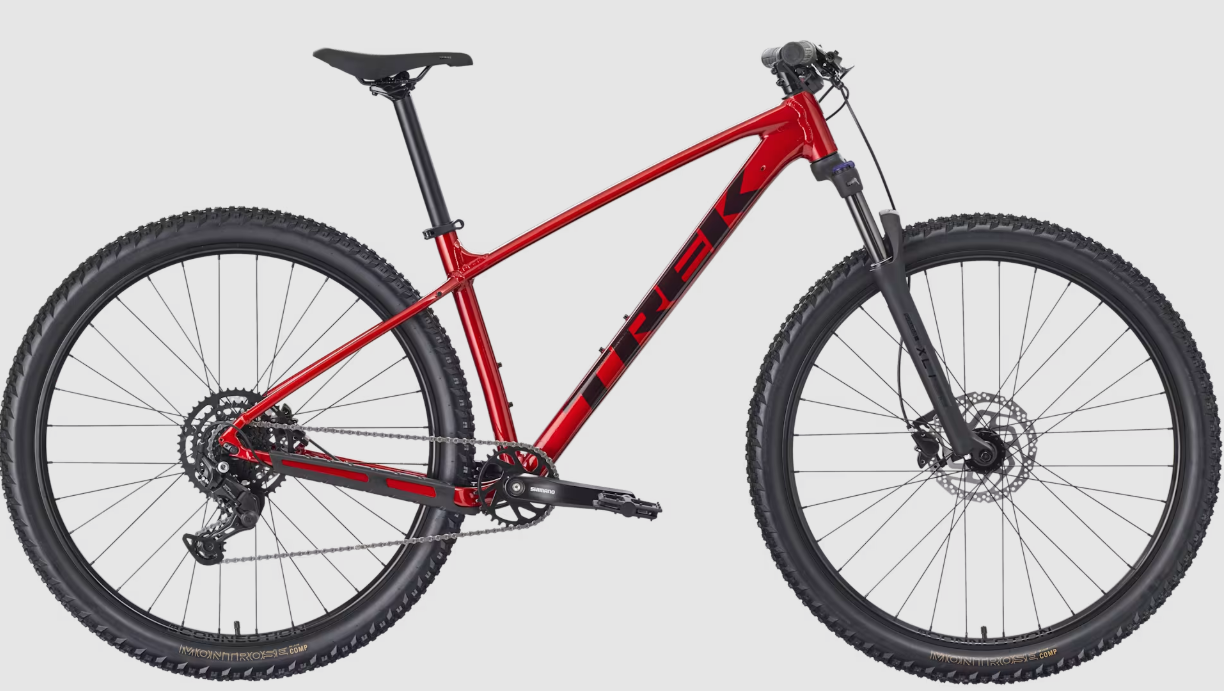

The Marlin 5 is comfortable, easy to control, and has that rugged mountain bike feel. with a tough frame and the front suspension fork smooths out bumps. The 9-speed Shimano CUES drivetrain is dependable. It has built-in mounts for a rack and a kickstand, so it's easy to get ready for weekend trips or rides every day.



Vendor: Trek
SKU: 197216263418
Availability: In stock
Product type: Mountain Bikes
2,629.48
3,093.50
2,629.48

Split your payments into 4 with tabby. No interest, no fees!

tabby
Color: Mulsanne Blue
Size: S (27.5" wheel)
Model: 2026
Terms & Conditions
Marlin 5 Gen 3

Marlin 5 Gen 3

3,093.50 2,629.48
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3
Marlin 5 Gen 3

Marlin 5 Gen 3

3,093.50 2,629.48
Color: Mulsanne Blue
Size: S (27.5" wheel)
Model: 2026
    Overview
    Features
    Specs
    Sizing


    The Walkthrough

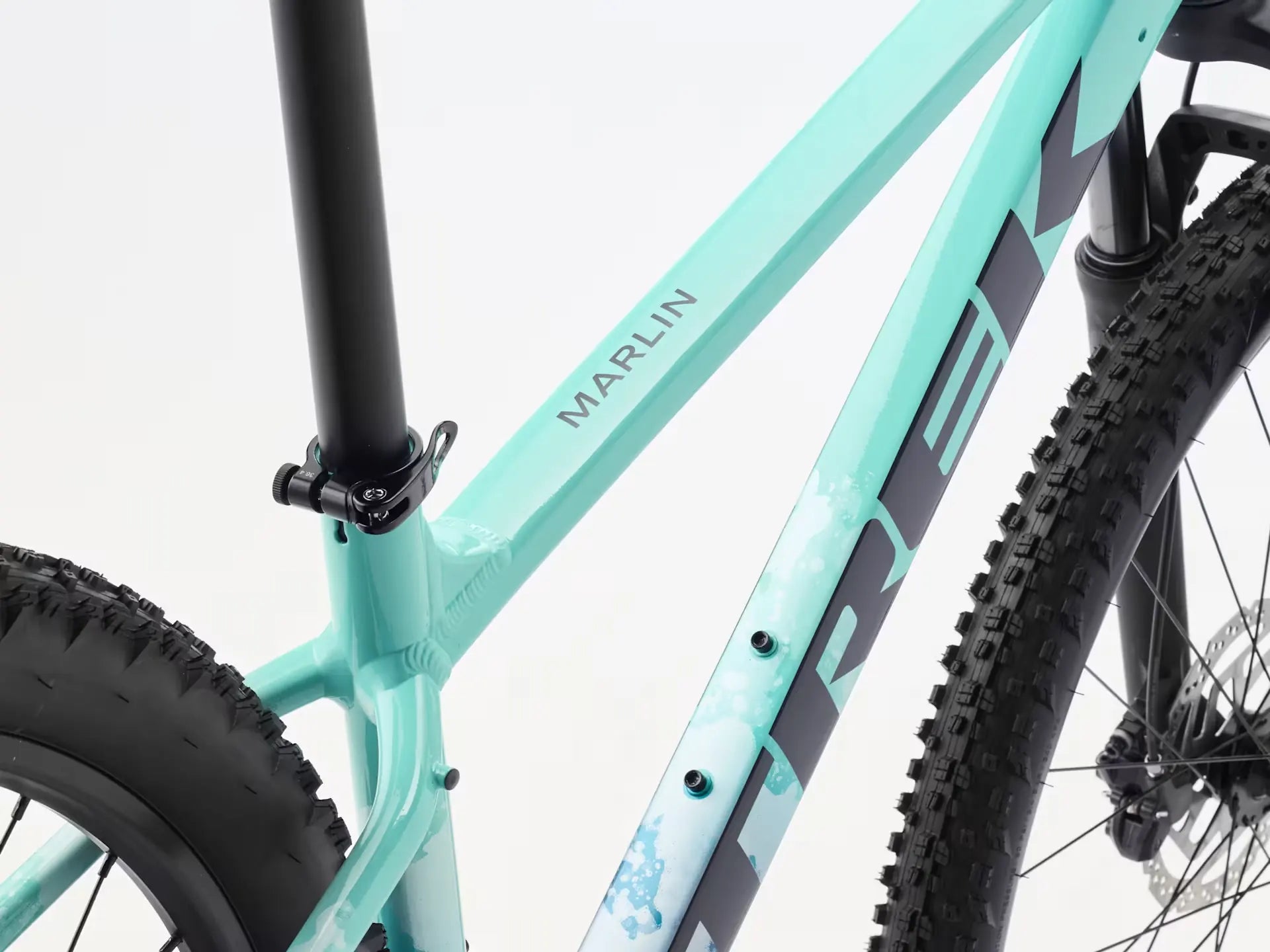

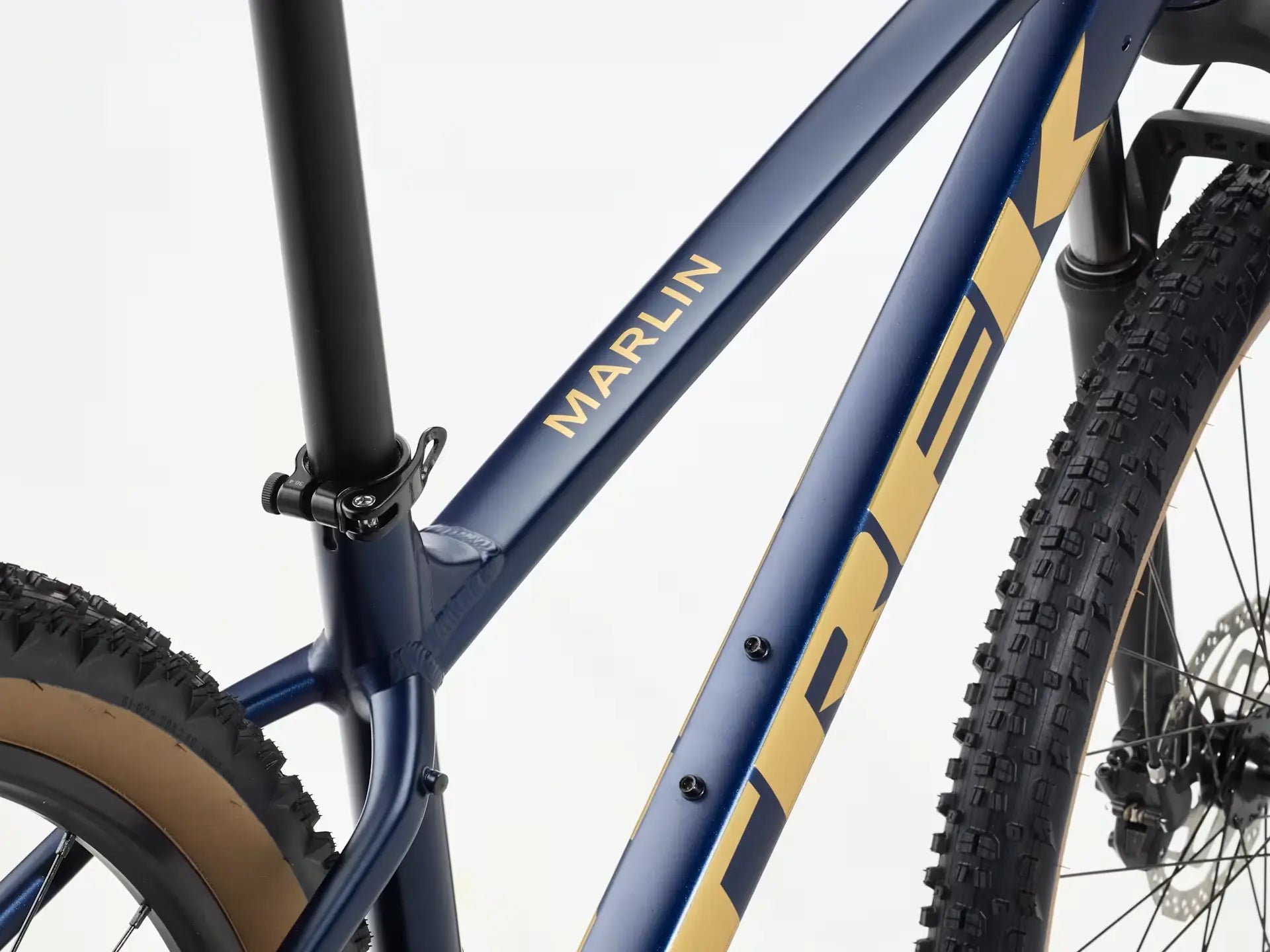

    Top curved tube

    Top curved tube

    The bike has a lower standover height on smaller bike frames because the top tube slopes downward close to the seat. For shorter riders, this is fantastic news because it makes getting on and off the bike more comfortable and easy. Since taller riders typically don't require that additional clearance, larger frames typically have a straight top tube instead.

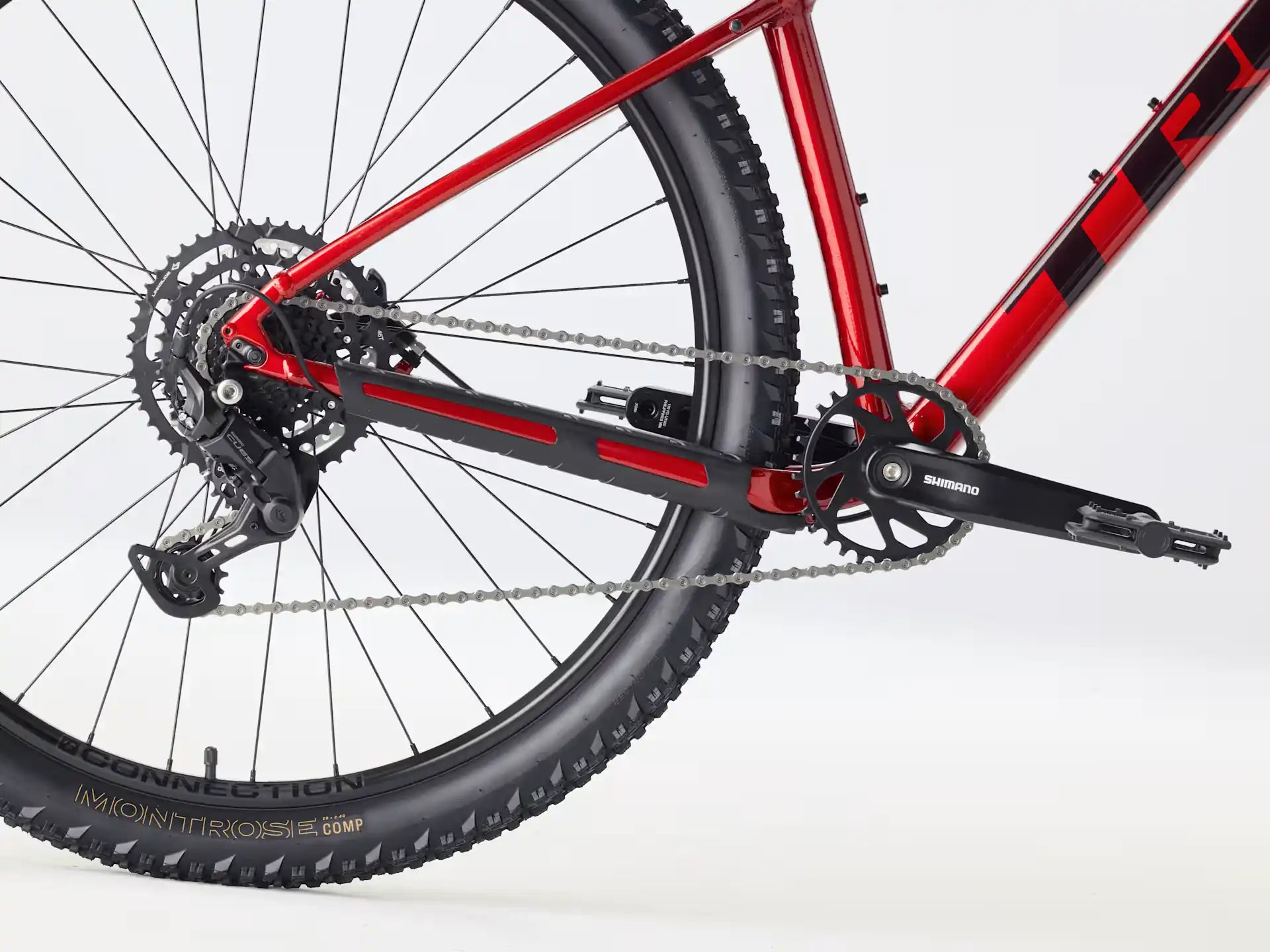

    Shimano LINKGLIDE

    Shimano LINKGLIDE

    LINKGLIDE technology is built to last, offering outstanding durability without sacrificing smooth, precise shifting. It also delivers a solid, comfortable pedaling feel making every ride that much better. You’ll find it exclusively on Shimano CUES drivetrains.


    Fit for every rider

    Fit for every rider

    The Marlin is available in seven frame sizes, so there’s a fit for just about every rider tall or short. Thanks to Smart Wheel Size, you’ll get the fastest and most efficient wheel size for your frame. And if you’re on the smaller side, you’re covered too. Those sizes come with short-reach brake levers and narrower handlebars to make sure everything feels comfortable and easy to control.



    *Please note - spec applies to all sizes unless listed separately

    *Frame
    Size: XS
    Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
    Size: S , M , ML , L , XL , XXL
    Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

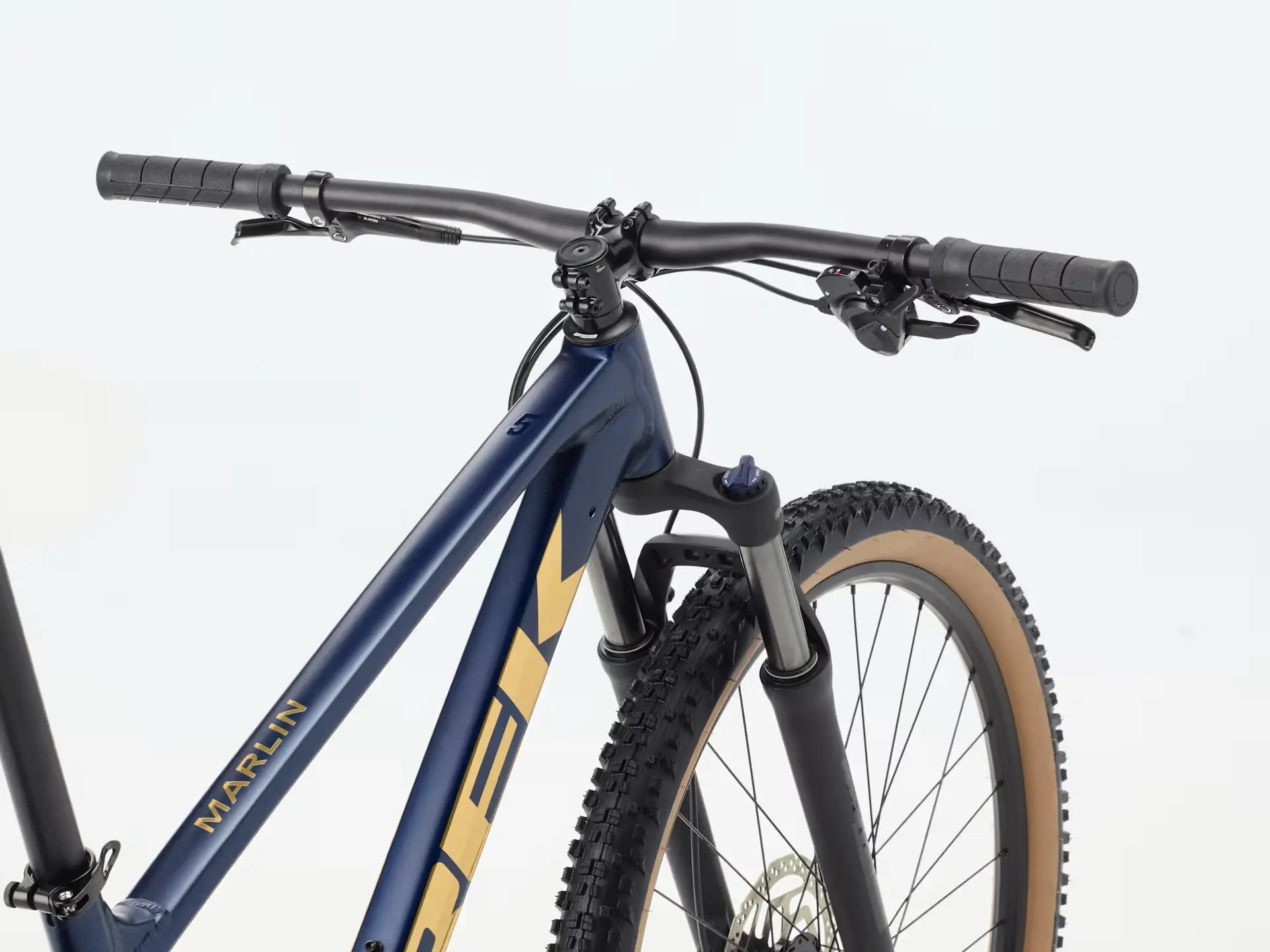

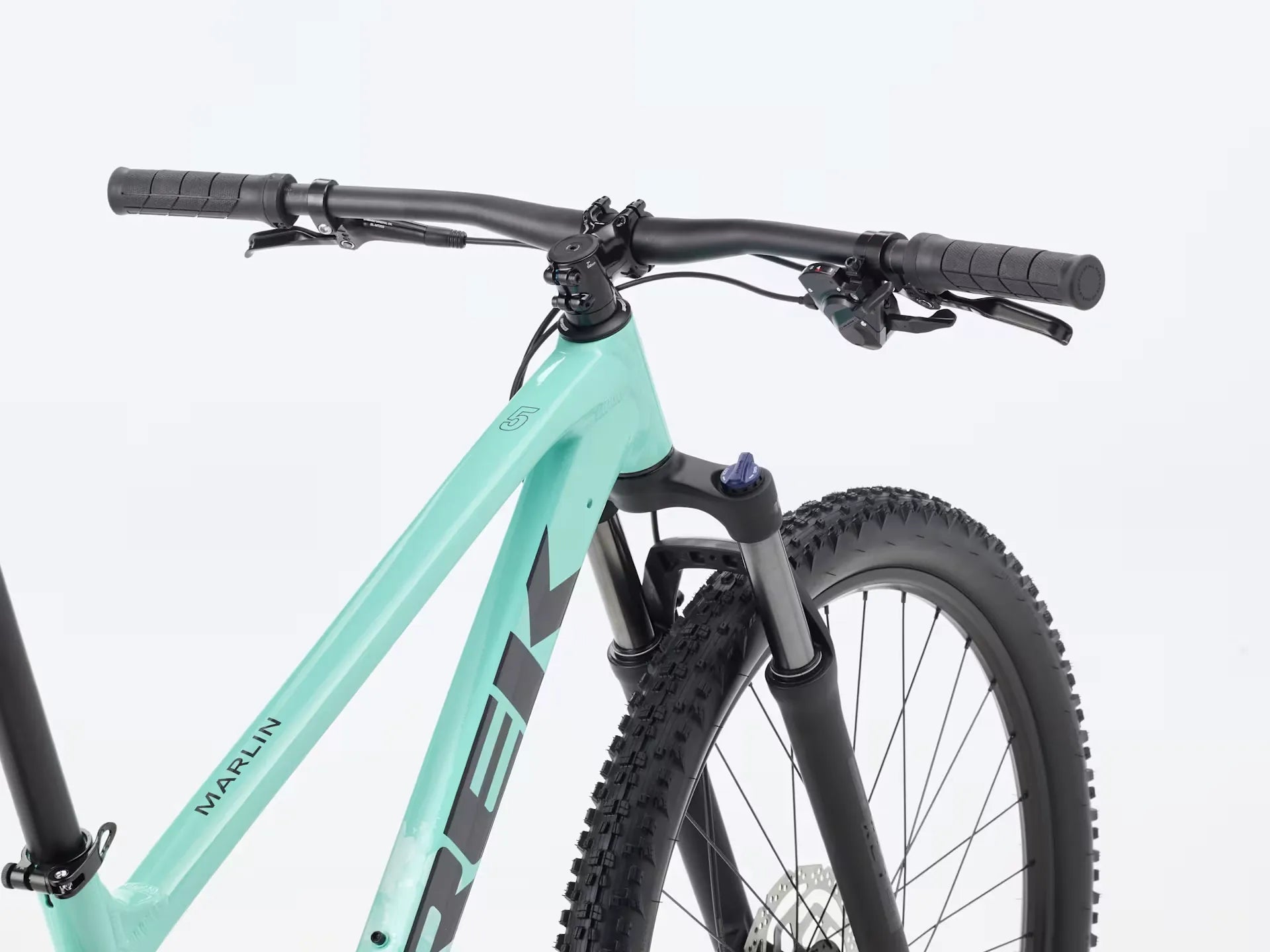

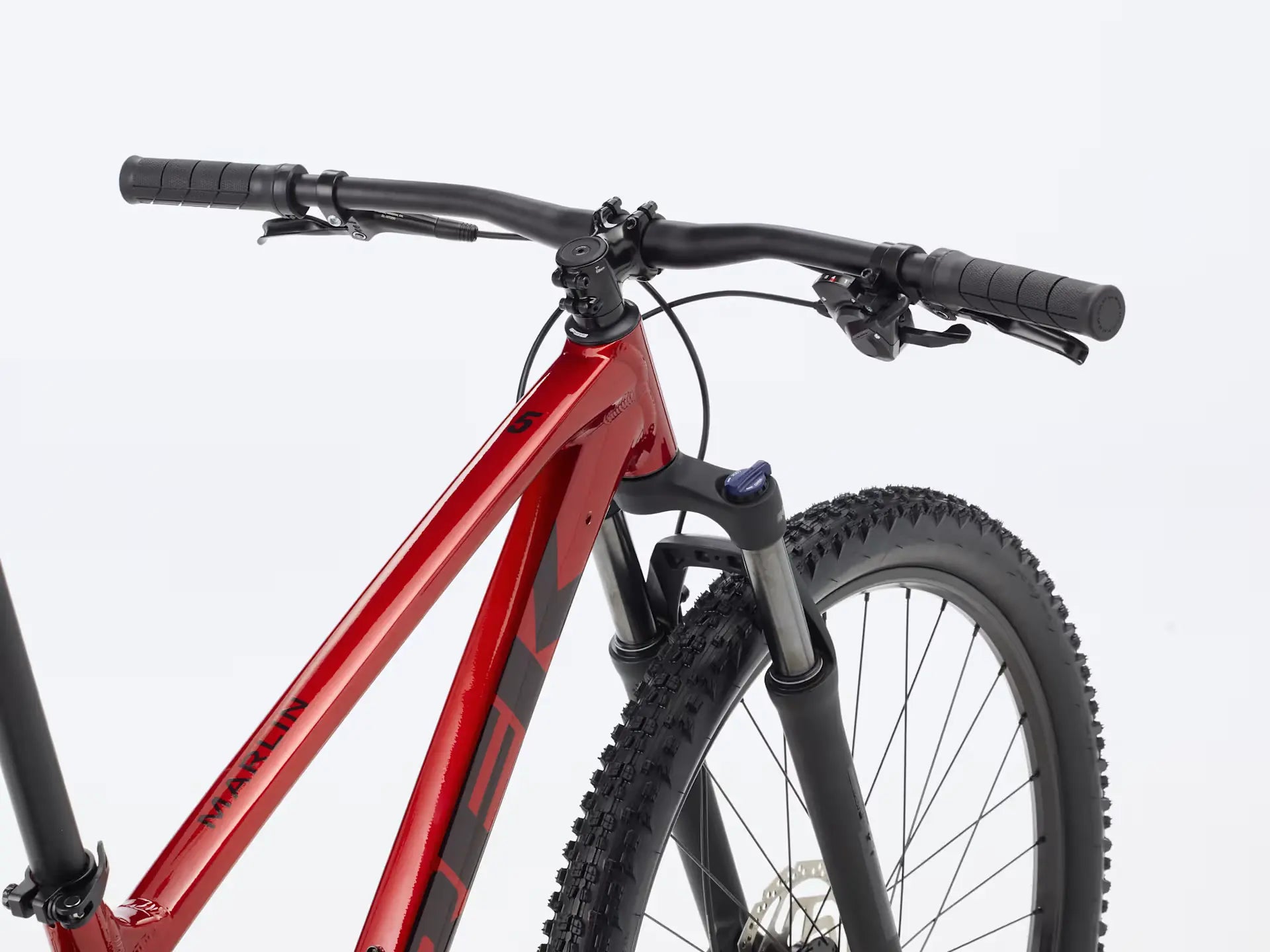

    *Fork
    Size: XS
    SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, 80 mm travel
    Size: S
    SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, 100 mm travel
    Size: M , ML , L , XL , XXL
    SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29'' wheel, 100 mm QR, 100 mm travel

    Hub front
    Formula DC-20, alloy, 6-bolt, 100x5mm
    Skewer front
    Trek Thru-Skew
    Hub rear
    Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
    Skewer rear
    173x5mm QR
    Rim
    Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
    Spokes
    14g stainless steel, black
    *Tire
    Size: XS , S
    Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''
    Size: M , ML , L , XL , XXL
    Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''
    Max tire size
    Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

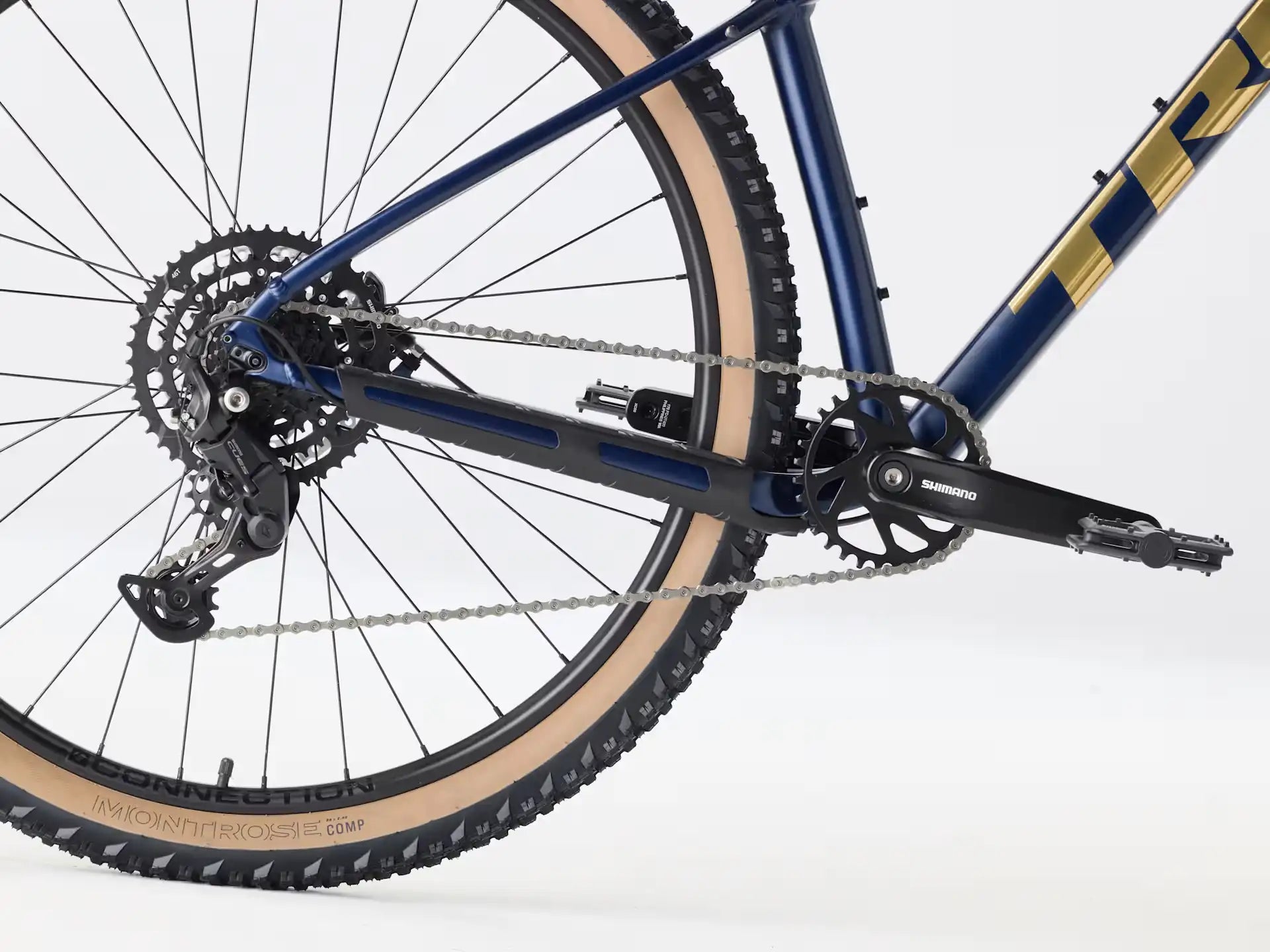

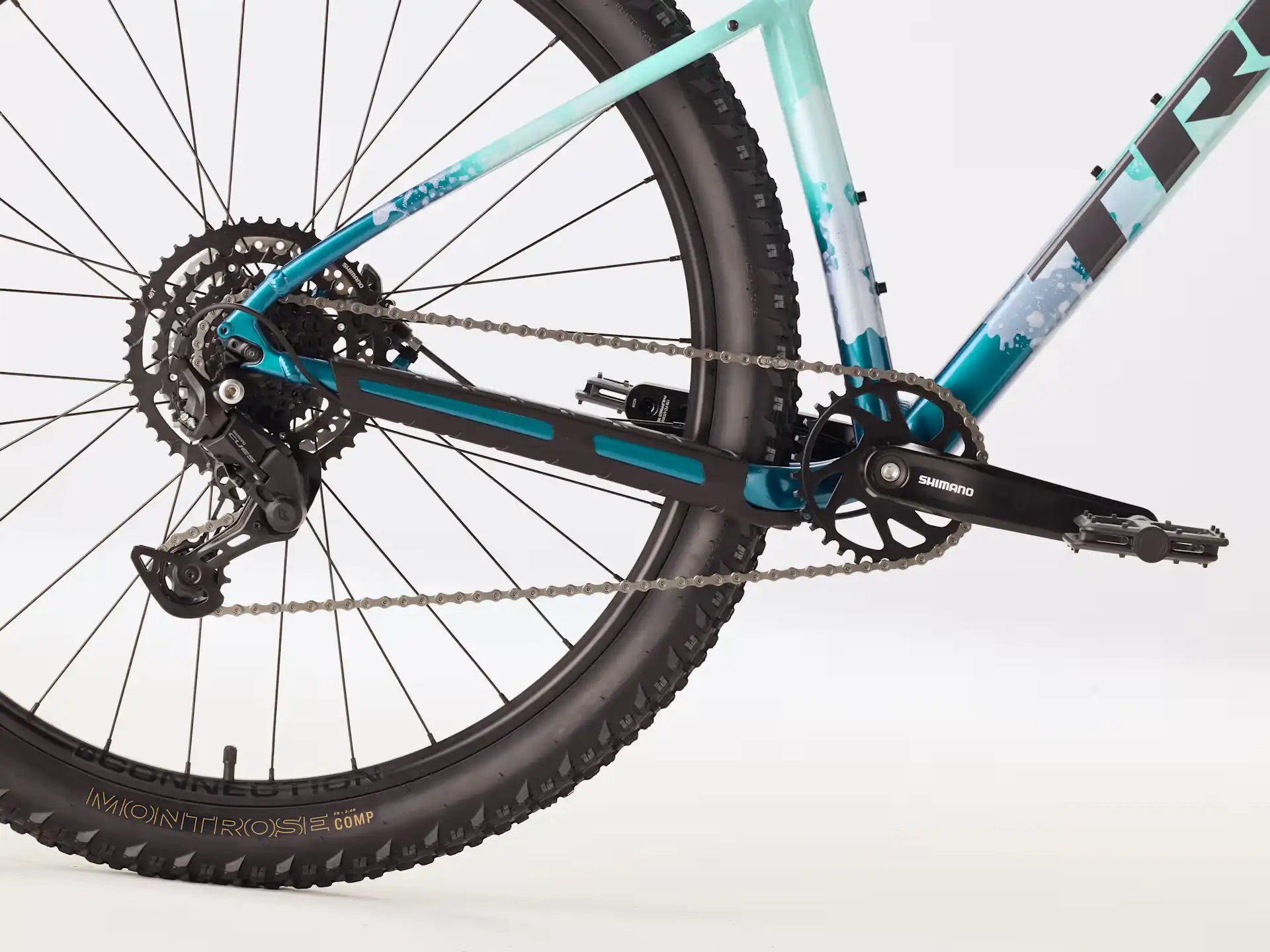

    Shifter
    Shimano U4000, 9 speed
    Rear derailleur
    Shimano CUES U4000
    *Crank
    Size: XS , S , M , ML
    Shimano CUES U4001, 32T, 52mm chainline, 170mm length
    Size: L , XL , XXL
    Shimano CUES U4001, 32T, 52mm chainline, 175mm length
    Bottom bracket
    Shimano, 73mm, threaded cartridge, 122.5mm spindle
    Cassette
    Shimano LINKGLIDE LG300, 11-46, 9 speed
    Chain
    Shimano LG500, 9/10/11 speed
    Pedal
    Nylon platform
    Max chainring size
    1x: See FAQ, 2x: 36T, 3x: 42T

    Saddle
    Bontrager Verse Short, stainless steel rails
    *Seatpost
    Size: XS , S , M
    Bontrager alloy, 31.6mm, 12mm offset, 330mm length
    Size: ML , L , XL , XXL
    Bontrager alloy, 31.6mm, 12mm offset, 400mm length

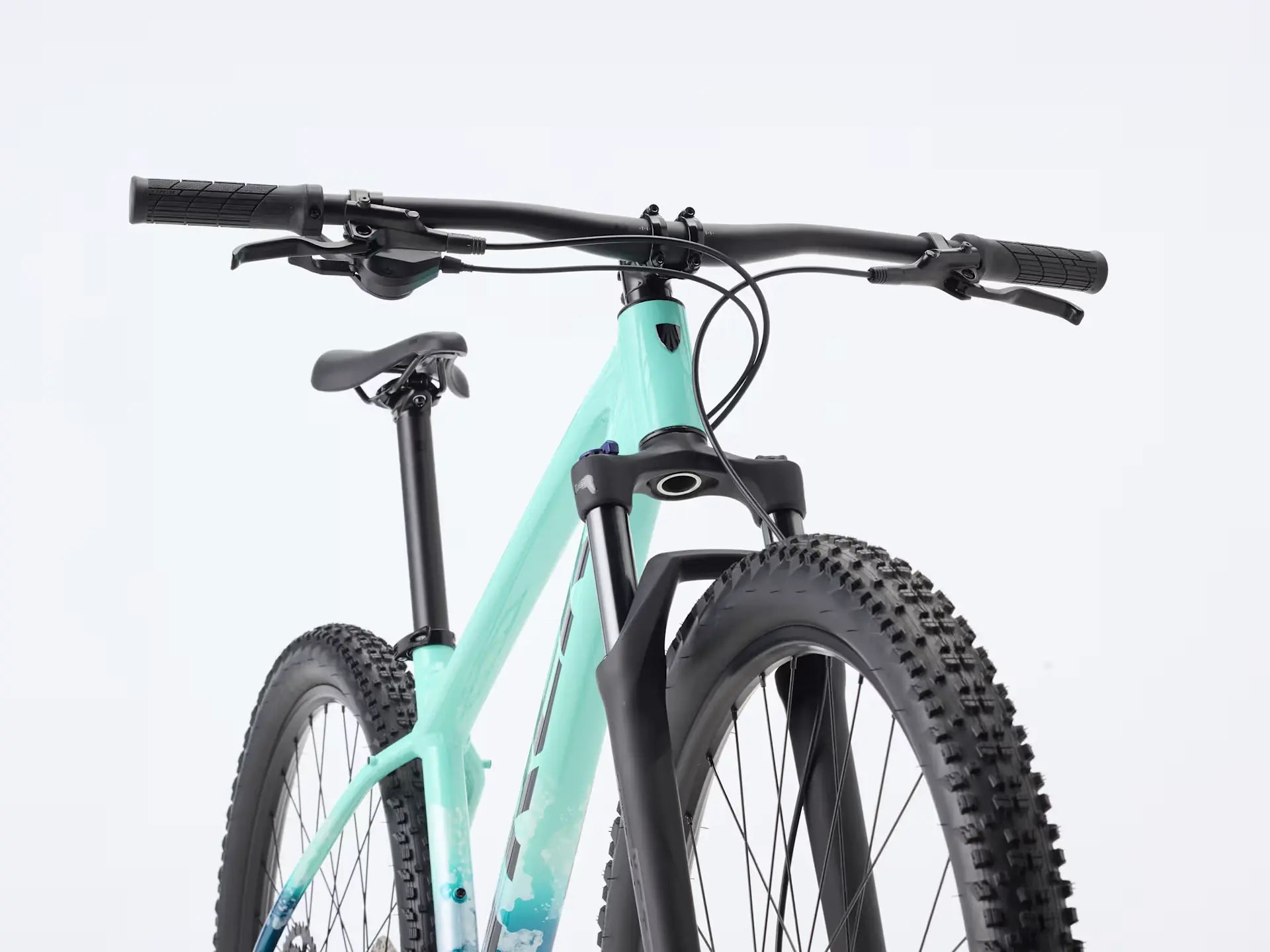

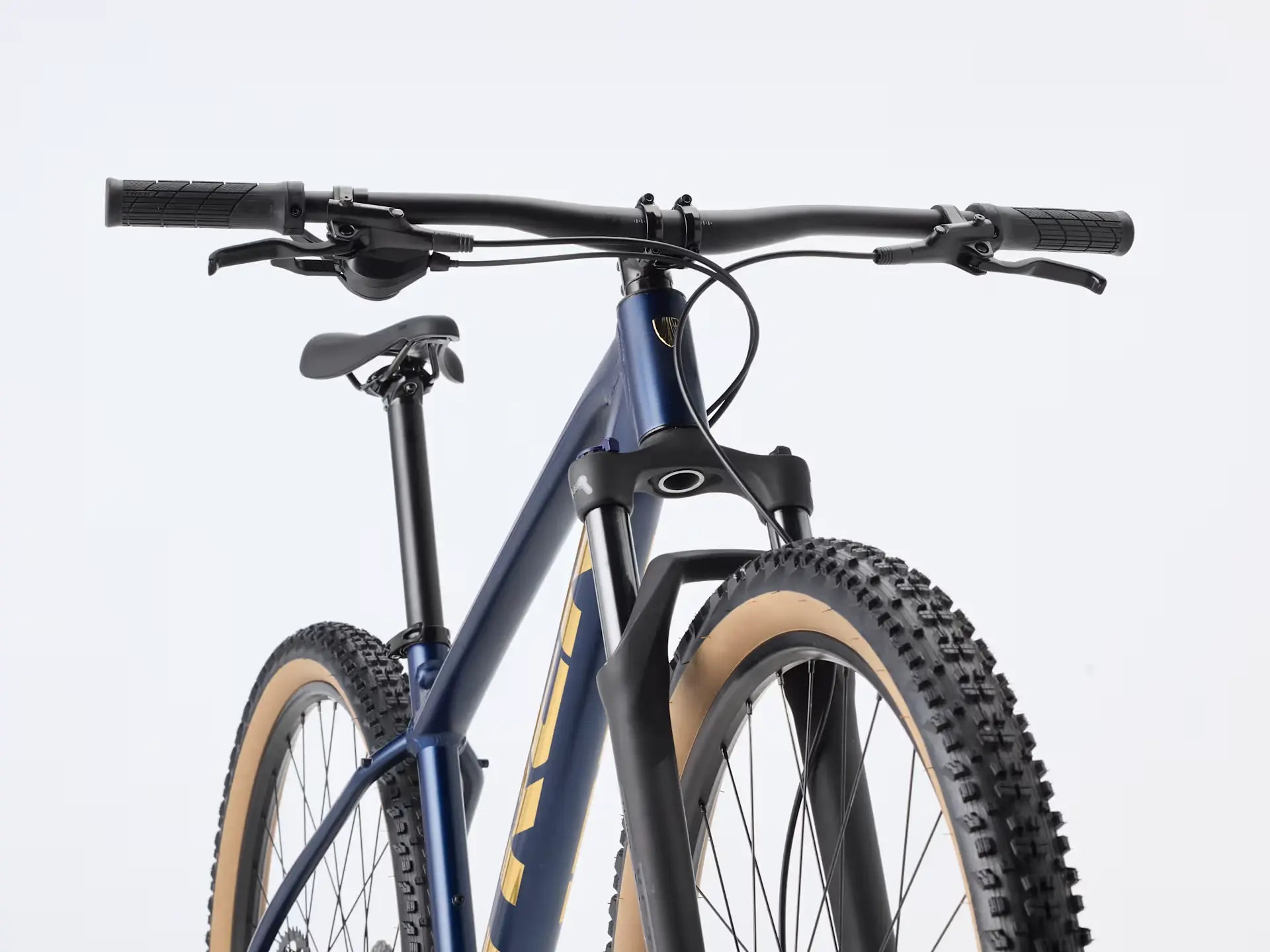

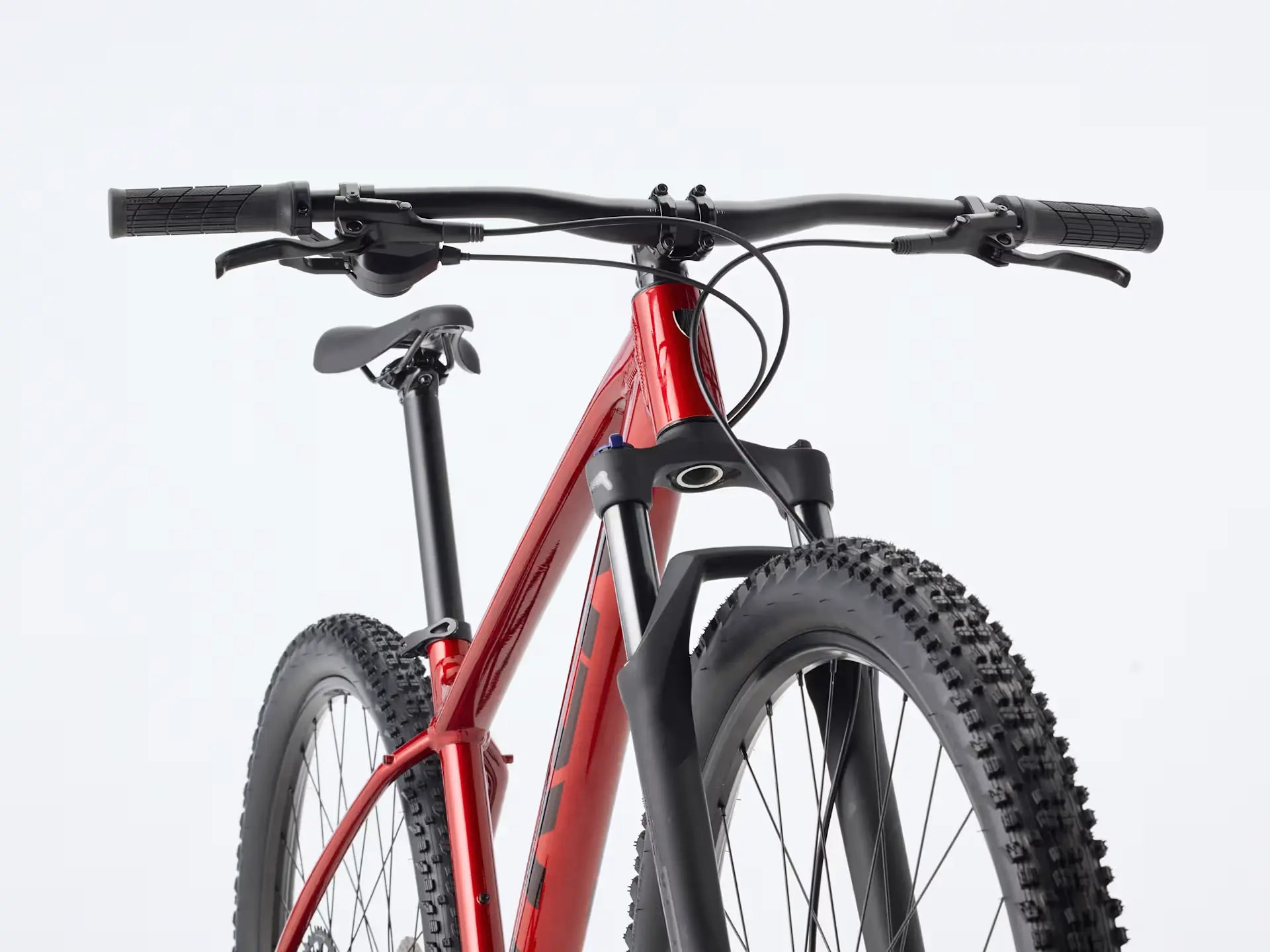

    *Handlebar
    Size: XS
    Bontrager alloy, 31.8mm, 5mm rise, 690mm width
    Size: S
    Bontrager alloy, 31.8mm, 15mm rise, 720mm width
    Size: M , ML , L , XL , XXL
    Bontrager alloy, 31.8mm, 15mm rise, 750mm width
    Grips
    Trek Line Comp, nylon lock-on
    *Stem
    Size: XS , S
    Bontrager Comp, 31.8mm, 7 degree, 35mm length
    Size: M , ML , L
    Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
    Size: XL
    Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
    Size: XXL
    Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
    Headset
    Semi-integrated, 1-1/8''
    *Brake rotor
    Size: XS , S , M , ML , L , XL , XXL
    Shimano RT26, 6-bolt, 160mm
    Size: M , ML , L , XL , XXL
    Shimano RT26, 6-bolt, 180mm
    Brake Set
    Shimano MT200 hydraulic disc
    Rotor size
    Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

    Weight
    M - 15.10 kg / 33.29 lbs
    Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

    We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

    Weights are based off pre-production products at time of publication. Weights may vary in final production.

    Size

    XS

    S

    M

    ML

    L

    XL

    2XL

    Rider Height

    145 - 155 cm

    4'9" - 5'1"

    155 - 165 cm

    5'1" - 5'5"

    165 - 177 cm

    5'5" - 5'10"

    173 - 180 cm

    5'8" - 5'11"

    177 - 188 cm

    5'10" - 6'2"

    188 - 195 cm

    6'2" - 6'5"

    195 - 203 cm

    6'5" - 6'8"

    Inseam

    69 - 73 cm

    27" - 29"

    74 - 78 cm

    29" - 31"

    79 - 83 cm

    31" - 33"

    81 - 86 cm

    32" - 34"

    84 - 89 cm

    33" - 35"

    89 - 91 cm

    35" - 36"

    91 - 97 cm

    36" - 38"
