دومان اس ال ار 7 اي اكس اس الجيل 4

Name: دومان اس ال ار 7 اي اكس اس الجيل 4
Brand: Trek
SKU: 601842923269
Price: 41400.0 SAR
Availability: OutOfStock

اكتشف دراجة دوماني اس أل آر 7 ايه اكس اس الجيل 4، وهي دراجة طريق كربونية فائقة الخفة مصممة لعشاق الأداء العالي والسرعة. تأتي بإطار كربوني متطور من فئة 800 مع نظام نقل حركة إلكتروني لاسلكي بدقة عالية، بالإضافة إلى مقياس قدرة يساعدك على تحسين أدائك أثناء التدريب. بفضل تقنية امتصاص الاهتزازات المطورة، توفر راحة كبيرة وتقلل الإجهاد أثناء القيادة لمسافات طويلة، مع إمكانية تركيب إطارات حتى عرض 38 مم لتناسب الطرق الممهدة والطرق غير الممهدة الخفيفة. الاختيار المثالي لقيادة أقوى وأكثر راحة وثقة. اطلبها الآن!

بائع: Trek

رمز التخزين التعريفي: 601842923269

التوفر: نفذ

نوع المنتج: دراجات الطريق

41,400.00; 41,400.00
سعر الوحدة: لكل

ادفع على 4 شهور مع تابي بدون فوائد. بدون رسوم.

اللون: Trek Black Trek Black

المقاس: 54 54

الموديل: 2023 2023

متغيرات المنتج

كمية:

أوافق على الشروط والأحكام

دومان اس ال ار 7 اي اكس اس الجيل 4

41,400.00

كمية:

دومان اس ال ار 7 اي اكس اس الجيل 4

41,400.00

اللون: Trek Black Trek Black

المقاس: 54 54

الموديل: 2023 2023

متغيرات المنتج

نظرة عامة

Specs

Sizing

Geometry

*Please note - spec applies to all sizes unless listed separately

Frame: 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Frame with Fork: 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork: Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Frame fit: Endurance

Weight: 56 - 8.38 kg / 18.48 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Battery: SRAM AXS battery pack (with charger)

Shifter: SRAM Force eTap AXS, 12 speed
Front derailleur: SRAM Force eTap AXS, braze-on
Rear derailleur: SRAM Force eTap AXS, 36T max cog
*Crank: Size: 47

SRAM Force AXS Power Meter, 46/33, DUB, 165mm length

Size: 50, 52

SRAM Force AXS Power Meter, 46/33, DUB, 170mm length

Size: 54, 56

SRAM Force AXS Power Meter, 46/33, DUB, 172.5mm length

Size: 58, 60, 62

SRAM Force AXS Power Meter, 46/33, DUB, 175mm length
Bottom bracket: SRAM DUB, T47 threaded, internal bearing
Cassette: SRAM Force XG-1270, 10-33, 12 speed
Chain: SRAM Force, 12 speed
Max chainring size: 1x: 48T, 2x: 52/36

Wheel front: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Wheel rear: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Skewer front: Bontrager Switch thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Tire: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
Tire part: Bontrager TLR sealant, 6oz
Rim strip: Bontrager TLR
Max tire size: 38mm without fenders, 35mm with fenders

*Saddle: Size: 47, 50, 52

Bontrager Verse Short Elite, hollow stainless steel rails, 155mm width

Size: 54, 56, 58, 60, 62

Bontrager Verse Short Elite, hollow stainless steel rails, 145mm width
*Seatpost: Size: 47, 50, 52, 54, 56
KVF aero carbon seatpost, 20mm offset, 280mm length

Size: 58, 60, 62
KVF aero carbon seatpost, 20mm offset, 320mm length
*Handlebar: Size: 47
Bontrager Pro IsoCore VR-SF, 38cm

Size: 50, 52
Bontrager Pro IsoCore VR-SF, 40cm

Size: 54, 56
Bontrager Pro IsoCore VR-SF, 42cm

Size: 58, 60, 62
Bontrager Pro IsoCore VR-SF, 44cm
Handlebar tape: Bontrager Supertack Perf tape
*Stem: Size: 47
Trek RCS Pro, -7 degree, 70mm length

Size: 50
Trek RCS Pro, -7 degree, 80mm length

Size: 52, 54
Trek RCS Pro, -7 degree, 90mm length

Size: 56, 58
Trek RCS Pro, -7 degree, 100mm length

Size: 60, 62
Trek RCS Pro, -7 degree, 110mm length
Brake: SRAM Force AXS hydraulic disc, flat mount
Brake rotor: SRAM CenterLine X, centerlock, round edge, 160mm
Rotor size: Max brake rotor sizes: 160mm front & rear

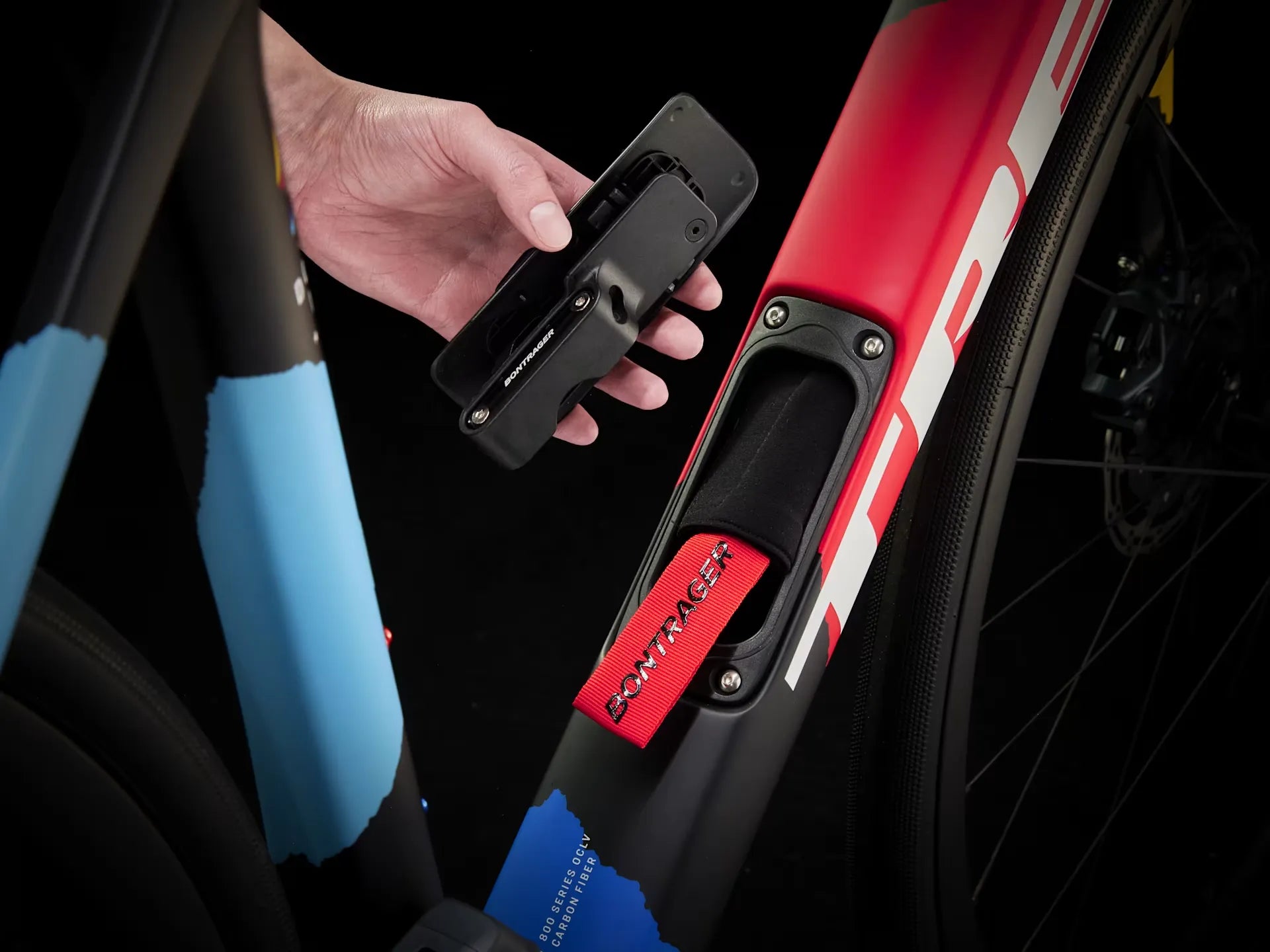

Bag: Bontrager BITS Internal Frame Storage Bag

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

Size

Rider Height

152 - 158 cm

5'0" - 5'2"

158 - 163 cm

5'2" - 5'4"

163 - 168 cm

5'4" - 5'6"

168 - 174 cm

5'6" - 5'9"

174 - 180 cm

5'9" - 5'11"

180 - 185 cm

5'11" - 6'1"

185 - 190 cm

6'1" - 6'3"

190 - 195 cm

6'3" - 6'5"

Inseam

71 - 75 cm

28" - 30"

74 - 77 cm

29" - 30"

76 - 79 cm

30" - 31"

78 - 82 cm

31" - 32"

81 - 85 cm

32" - 33"

84 - 87 cm

33" - 34"

86 - 90 cm

34" - 35"

89 - 92 cm

35" - 36"

Geometry

Geometry diagram labeling frame measurements A through N. Each label corresponds to a row in the geometry table below.

All measurements provided in cm unless otherwise noted.

Sizing table
Frame size number	Wheel size	A — Seat tube	B — Seat tube angle	C — Head tube length	D — Head angle	E — Effective top tube	G — Bottom bracket drop	H — Chainstay length	I — Offset	J — Trail	K — Wheelbase	L — Standover	M — Frame reach	N — Frame stack	Saddle rail height min (w/short mast)	Saddle rail height max (w/short mast)	Saddle rail height min (w/tall mast)	Saddle rail height max (w/tall mast)
47cm	700c	42.0	74.6°	11.0	71.0°	50.9	8.0	42.0	5.3	6.1	98.6	68.6	36.4	52.7	55.5	62.0	58.5	65.0
50cm	700c	45.0	74.6°	13.0	71.1°	51.9	8.0	42.0	5.3	6.0	99.6	71.6	36.8	54.6	58.5	65.0	61.5	68.0
52cm	700c	47.5	74.2°	14.5	71.3°	53.0	8.0	42.0	5.3	5.9	100.3	73.5	37.1	56.1	61.5	68.0	64.5	71.0
54cm	700c	50.0	73.7°	16.0	71.3°	54.2	8.0	42.0	5.3	5.9	101.0	75.4	37.4	57.5	64.0	70.5	67.0	73.5
56cm	700c	52.5	73.3°	17.5	71.9°	55.4	7.8	42.0	4.8	6.1	100.8	77.6	37.7	59.1	67.0	73.5	70.0	76.5
58cm	700c	54.8	73.0°	19.5	72.0°	56.7	7.8	42.5	4.8	6.0	102.2	79.6	38.0	61.1	69.0	75.5	72.0	78.5
60cm	700c	56.7	72.8°	22.0	72.1°	57.9	7.5	42.5	4.8	5.9	103.2	81.7	38.3	63.2	71.0	77.5	74.0	80.5
62cm	700c	58.6	72.5°	24.5	72.1°	59.3	7.5	42.5	4.8	5.9	104.2	83.5	38.6	65.6	73.0	79.5	76.0	82.5
